Price:
NZ$ 178.28 including GST
NZ$ 155.03 excluding GST
or four payments of $44.57
with
Learn More
each
S9864S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

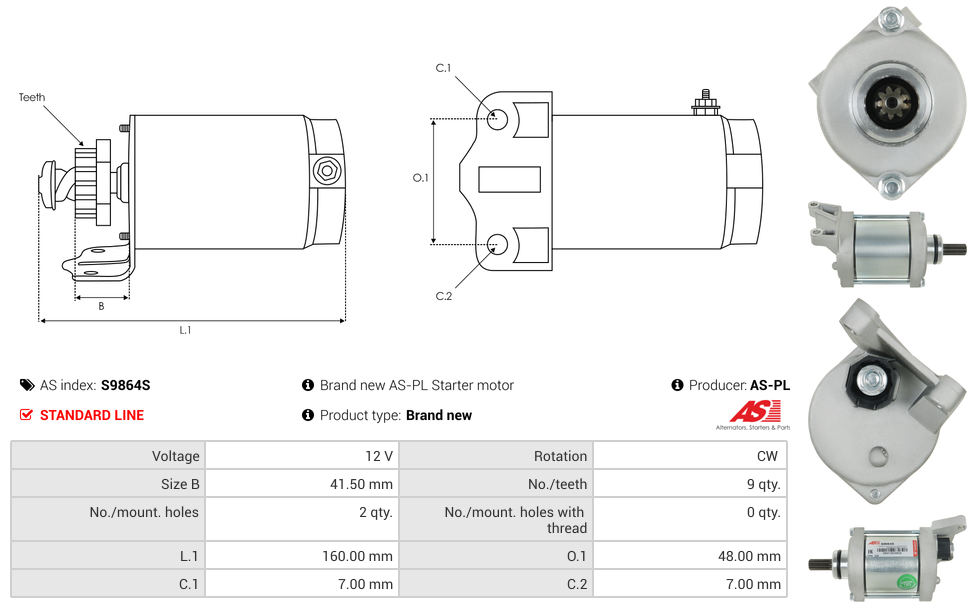

Specifications
| Length (L.1) | 160 mm |
| Mount Hole Center - Center (O.1) | 48 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 41.50 mm |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | YFZ450R | [449cc] | 01.2009-12.2015 |
| YAMAHA | YFZ450R SE | [449cc] | 01.2009-12.2015 |
| YAMAHA | YFZ450X | [449cc] | 01.2010-12.2011 |
Reference Information
| 18P-81890-00-00 | YAMAHA |
| 19200 | LESTER |
| 19200N | WAI / TRANSPO |
| 410-54145 | J&N |
| 71-26-19200 | WILSON |
| SMU0515 | ARROWHEAD |
| STU2980 | KRAUF |
| UD102742S | AS-PL |
