Price:
NZ$ 186.31 including GST
NZ$ 162.01 excluding GST
or four payments of $46.58
with
Learn More
each
S9862S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

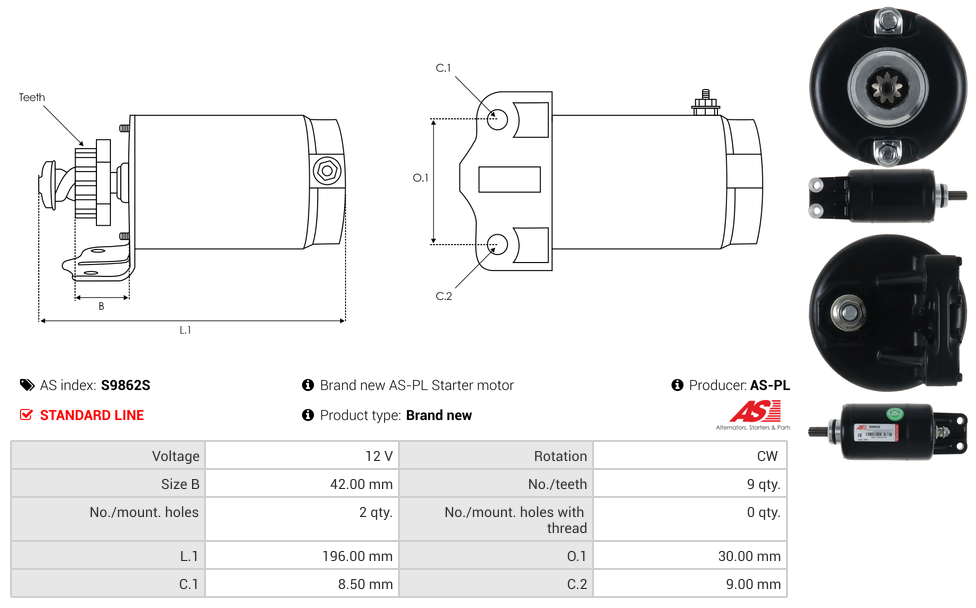

Specifications
| Length (L.1) | 196 mm |
| Mount Hole Center - Center (O.1) | 30 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 42 mm |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | Engine | [1050cc] | 01.2016-12.2020 |
Reference Information
| SMU0567 | ARROWHEAD |
| UD102729S | AS-PL |
