Price:
NZ$ 157.57 including GST
NZ$ 137.02 excluding GST
or four payments of $39.39
with
Learn More
each
S9851S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

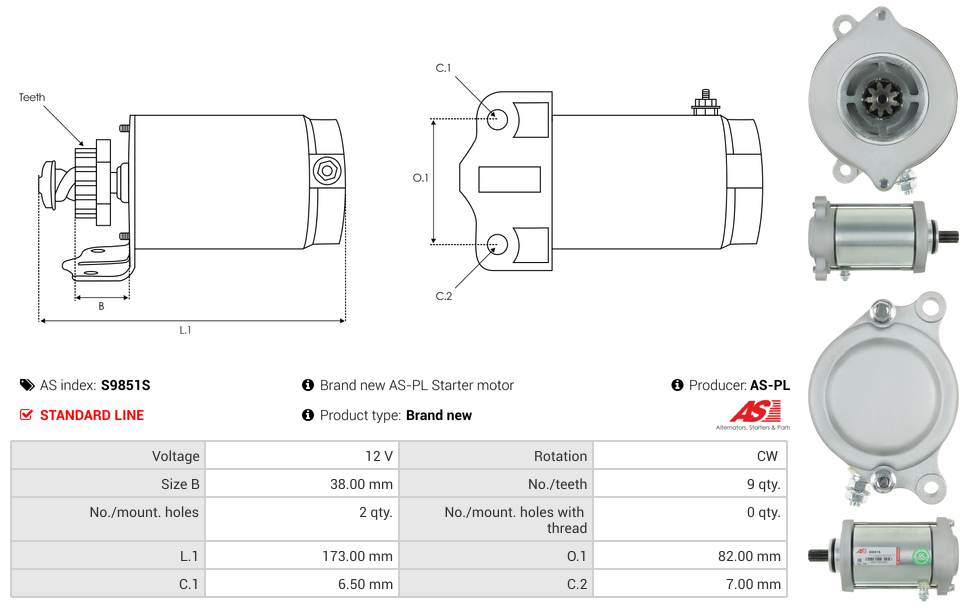

Specifications
| Length (L.1) | 173 mm |
| Mount Hole Center - Center (O.1) | 82 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 38 mm |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | VL 1500 Intruder LC | [1462CC] | 01.1998-12.2000 |
| SUZUKI | VL 1500 Intruder LC | [1462CC] | 01.2001-12.2006 |
| SUZUKI | VS 1400 GLP Intruder | [1360CC] | 01.1996-12.2003 |
| SUZUKI | VS 1400 Intruder | [1360CC] | 01.1987-12.1995 |
Reference Information
| 18786 | LESTER |
| 18786N | WAI / TRANSPO |
| 256557 | KUHNER |
| 31100-10F00 | SUZUKI |
| 31100-38B00 | SUZUKI |
| 31100-38B01 | SUZUKI |
| 31100-38B02 | SUZUKI |
| SM132-03 | MITSUBA |
| UD102709S | AS-PL |
