Price:
NZ$ 146.13 including GST
NZ$ 127.07 excluding GST
or four payments of $36.53
with
Learn More
each
S9848S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

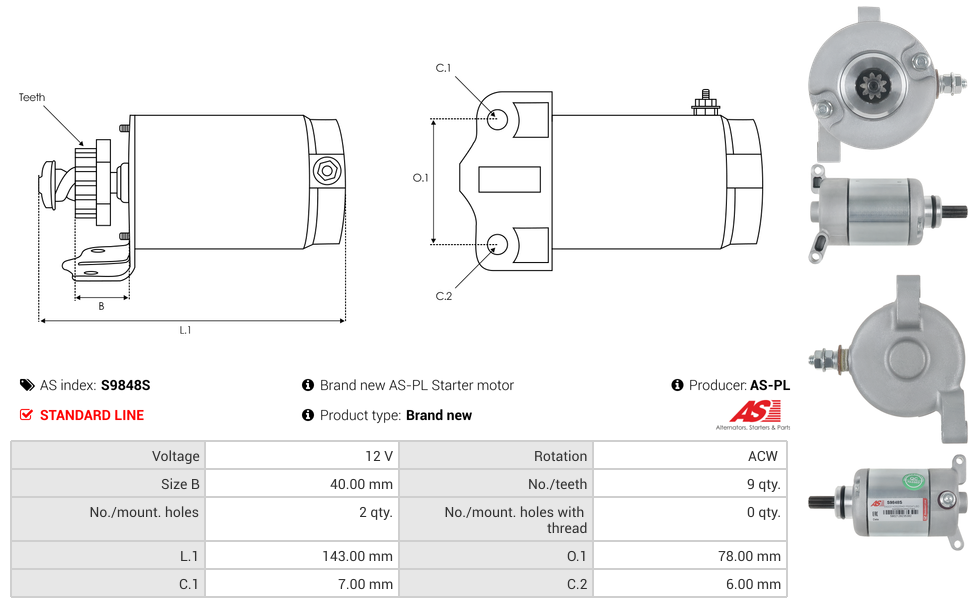

Specifications
| Length (L.1) | 143 mm |
| Mount Hole Center - Center (O.1) | 78 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 6 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 40 mm |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | WR250R | [249cc] | 01.2008-12.2013 |
| YAMAHA | WR250R | [250cc] | 01.2014-12.2015 |
| YAMAHA | WR250X | [249cc] | 01.2008-12.2011 |
Reference Information
| 30911N | WAI / TRANSPO |
| 3D7-81890-00-00 | YAMAHA |
| UD102731S | AS-PL |
