Price:
NZ$ 201.34 including GST
NZ$ 175.08 excluding GST
or four payments of $50.34
with
Learn More
each
S9840S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

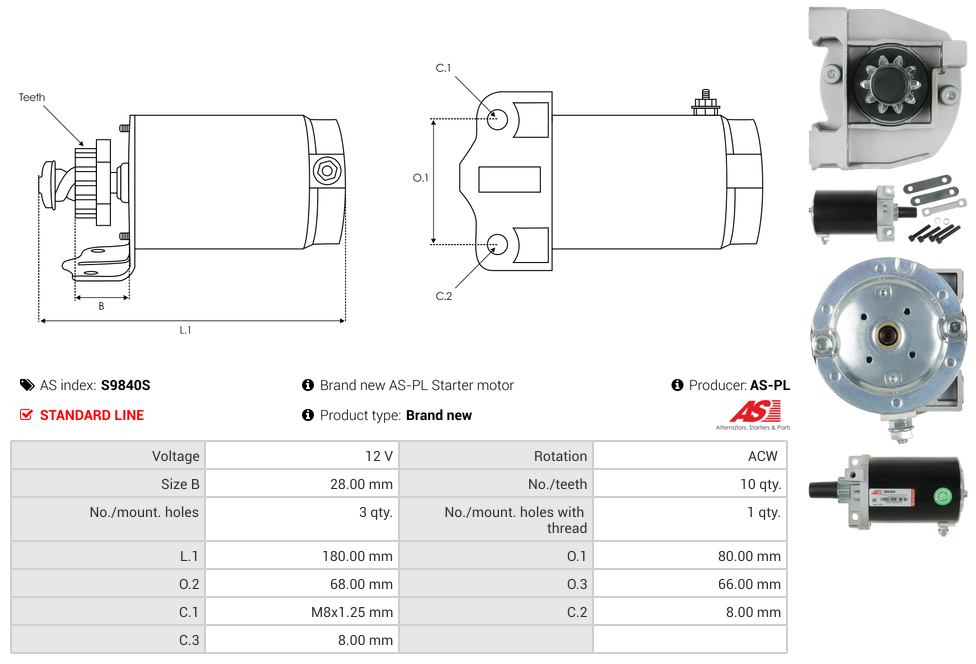

Specifications
| Length (L.1) | 180 mm |
| Mount Hole Center - Center (O.1) | 80 mm |
| Mount Hole Center - Center (O.2) | 68 mm |
| Mount Hole Center - Center (O.3) | 66 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | 8 mm |
| Mount Hole Diameter (C.3) | 8 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 28 mm |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GENERAC | Engine | [GN191] | |
| GENERAC | Engine | [GN220] | |
| GENERAC | Engine | [GN320] | |
| GENERAC | Engine | [GN360] | |
| GENERAC | Engine | [GN410] |
Reference Information
| 0D9004A | GENERAC |
| 0D9004B | GENERAC |
| 0E0601 | GENERAC |
| 0E06010SRV | GENERAC |
| 0E0601ASRV | GENERAC |
| 0E0601SRV | GENERAC |
| 106-10182 | ROBERT'S |
| 206-03123 | DIXIE |
| 5788 | LESTER |
| 5788N | WAI / TRANSPO |
| 71-09-5788 | WILSON |
| D9004A | GENERAC |
| D9004B | GENERAC |
| E0601 | GENERAC |
| STZ1725 | KRAUF |
| UD102697S | AS-PL |
