Price:
NZ$ 801.16 including GST
NZ$ 696.66 excluding GST
or four payments of $200.29
with
Learn More
each
S9831S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

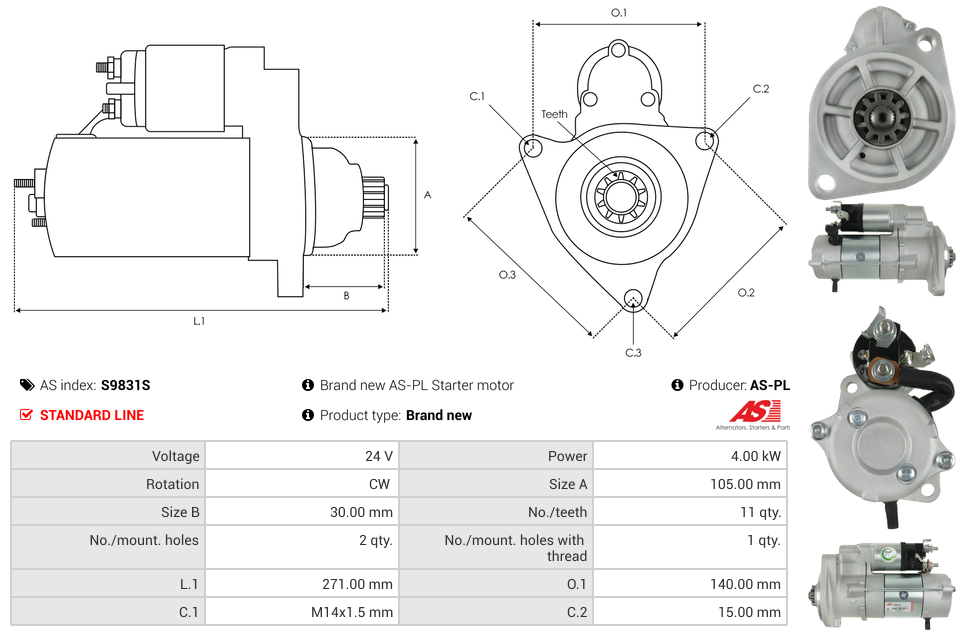

Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 271 mm |
| Mount Hole Center - Center (O.1) | 140 mm |
| Mount Hole Diameter (C.1) | M14x1.5 mm |
| Mount Hole Diameter (C.2) | 15 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 30 mm |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HINO | Dutro XZC600T | ||
| HINO | Dutro XZC605M | ||
| HINO | Dutro XZC630T | ||
| HINO | Dutro XZC645M | ||
| HINO | Dutro XZC655M | ||
| HINO | Dutro XZC675M | ||
| HINO | Dutro XZC675T | [N04C] |
Reference Information
| 0365-402-0143 | SAWAFUJI |
| 0365-402-0144 | SAWAFUJI |
| 28100-78250 | TOYOTA |
| STW3247 | KRAUF |
| UD102552S | AS-PL |
