Price:
NZ$ 119.66 including GST
NZ$ 104.05 excluding GST
or four payments of $29.92
with
Learn More
each
S9829S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

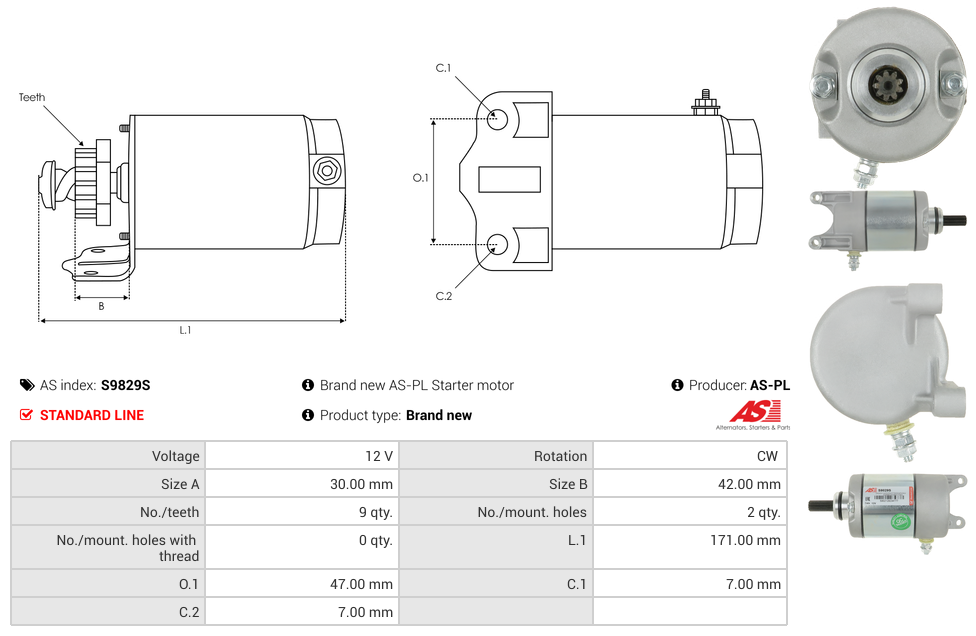

Specifications
| Length (L.1) | 171 mm |
| Mount Hole Center - Center (O.1) | 47 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 42 mm |
| Rotation | CW |
| Spigot Diameter (A) | 30 mm |
| Unit Type | HONDA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | CBF250 | [249cc] | 01.2006- |
| HONDA | CBX250 Twister | [250cc] | 01.2001-12.2010 |
| HONDA | XL250 Degree | [250cc] | 01.1991-12.1995 |
| HONDA | XR250 Tornado | [249cc] | 01.2001-12.2020 |
Reference Information
| 30924 | LESTER |
| 30924N | WAI / TRANSPO |
| 31200-KPF-851 | HONDA |
| UD102682S | AS-PL |
