Price:
NZ$ 80.10 including GST
NZ$ 69.65 excluding GST
or four payments of $20.03
with
Learn More
each
S9825S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

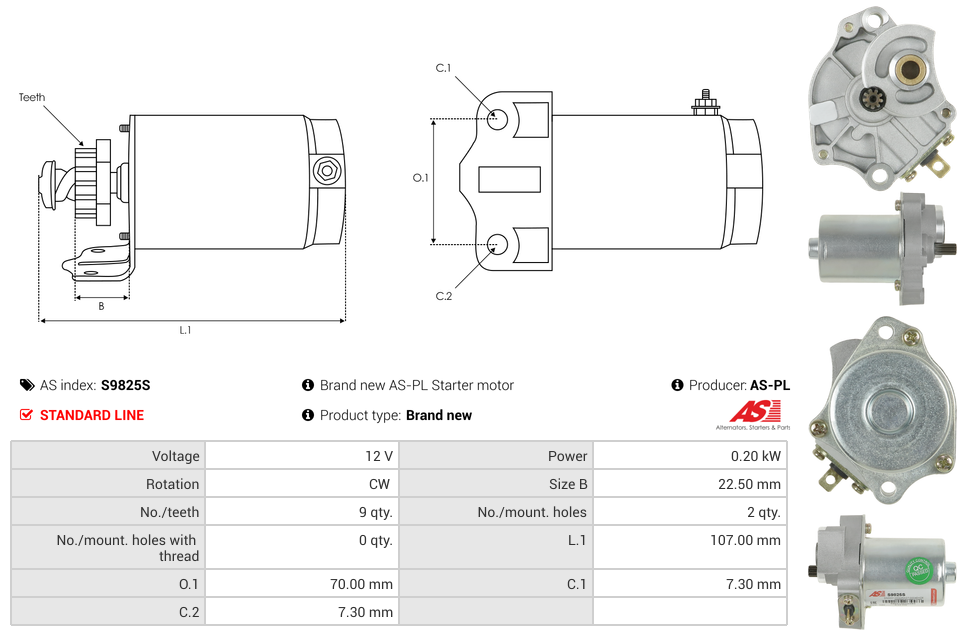

Specifications
| Kilowatt | 0.20 kW |
| Length (L.1) | 107 mm |
| Mount Hole Center - Center (O.1) | 70 mm |
| Mount Hole Diameter (C.1) | 7.30 mm |
| Mount Hole Diameter (C.2) | 7.30 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 22.50 mm |
| Rotation | CW |
| Unit Type | HONDA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Lead 100 |
Reference Information
| 31200-KFH-000 | HONDA |
| UD102669S | AS-PL |
