Price:
NZ$ 76.90 including GST
NZ$ 66.87 excluding GST
or four payments of $19.23
with
Learn More
each
S9814S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

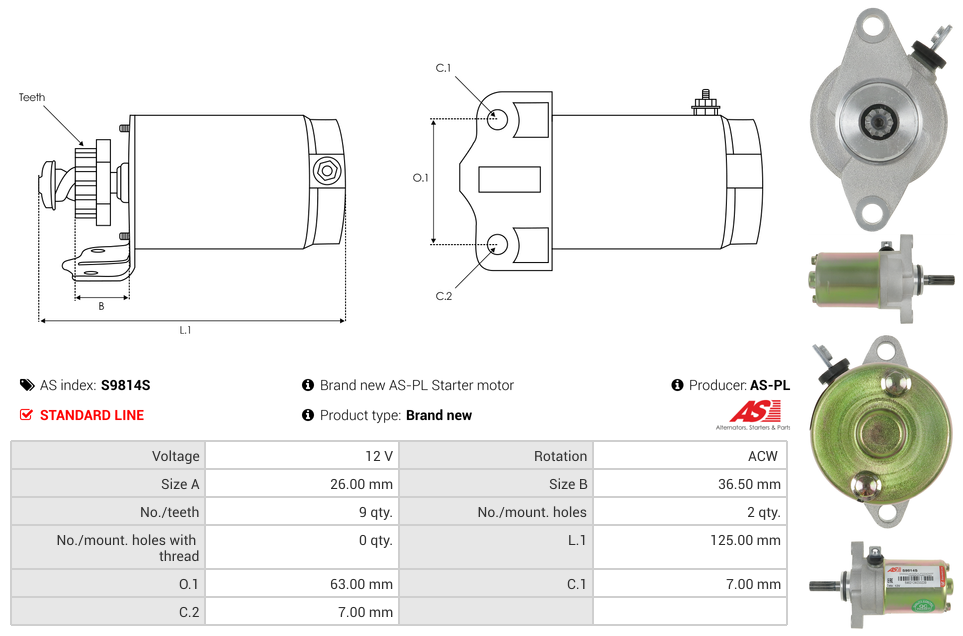

Specifications
| Length (L.1) | 125 mm |
| Mount Hole Center - Center (O.1) | 63 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 36.50 mm |
| Rotation | ACW |
| Spigot Diameter (A) | 26 mm |
| Unit Type | HI LEVEL |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KYMCO | Super 9 50 | 01.2007- |
Reference Information
| 37026 | LESTER |
| 519-CSM2470O | HI LEVEL |
| STZ0087 | HI LEVEL |
| UD19011S | AS-PL |
