Price:
NZ$ 151.31 including GST
NZ$ 131.57 excluding GST
or four payments of $37.83
with
Learn More
each
S9809S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

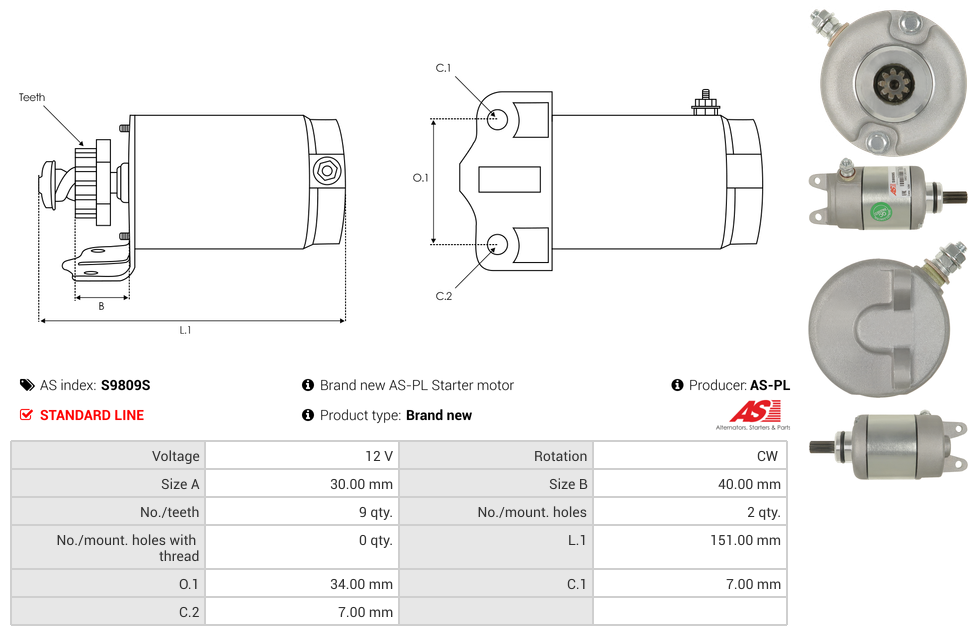

Specifications
| Length (L.1) | 151 mm |
| Mount Hole Center - Center (O.1) | 34 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 40 mm |
| Rotation | CW |
| Spigot Diameter (A) | 30 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KTM | 250 EXC-F | 01.2006-12.2013 | |
| KTM | 250 EXC-F Champion Edit. | 01.2010-12.2010 | |
| KTM | 250 EXC-F Factory Edit. | 01.2011-12.2011 | |
| KTM | 250 EXC-F Six Days | 01.2007-12.2013 | |
| KTM | 250 SX-F | 01.2012-12.2012 | |
| KTM | 250 SX-F Roczen Replica | 01.2012-12.2012 | |
| KTM | 250 XC-F | 01.2007-12.2012 | |
| KTM | 250 XCF-W | 01.2006-12.2013 | |
| KTM | 250 XCF-W Champion Edit. | 01.2010-12.2010 | |
| KTM | 250 XCF-W Six Days | 01.2010-12.2011 |
Reference Information
| 30808 | LESTER |
| 30808N | WAI / TRANSPO |
| 410-54229 | J&N |
| 77040001000 | KTM |
| UD19081S | AS-PL |
