Price:
NZ$ 545.86 including GST
NZ$ 474.66 excluding GST
or four payments of $136.47
with
Learn More
each

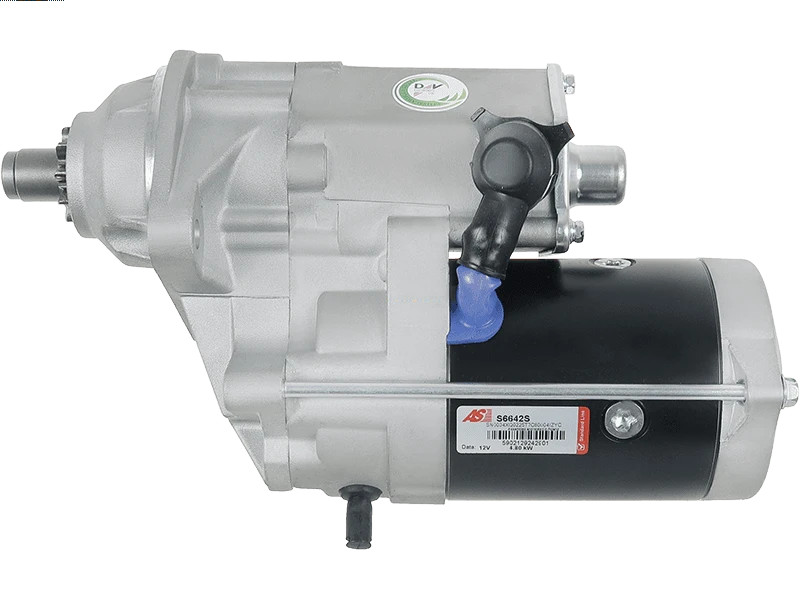

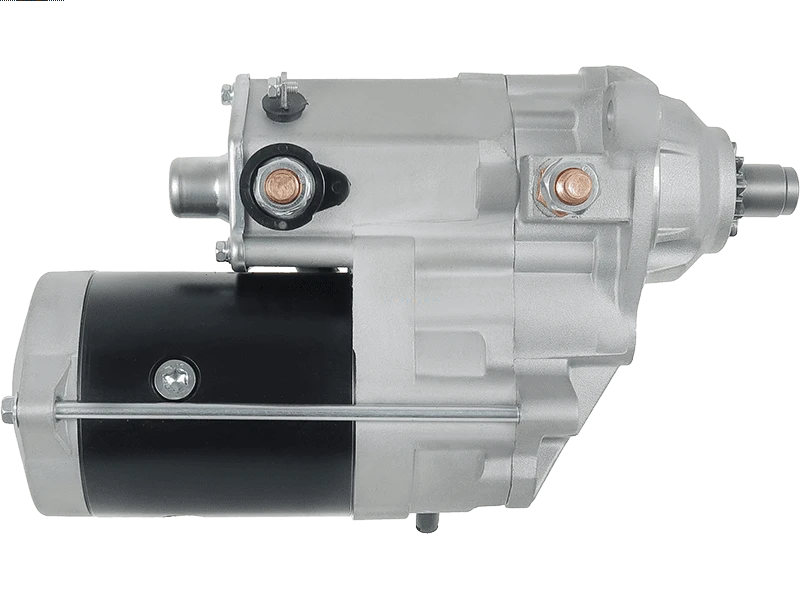

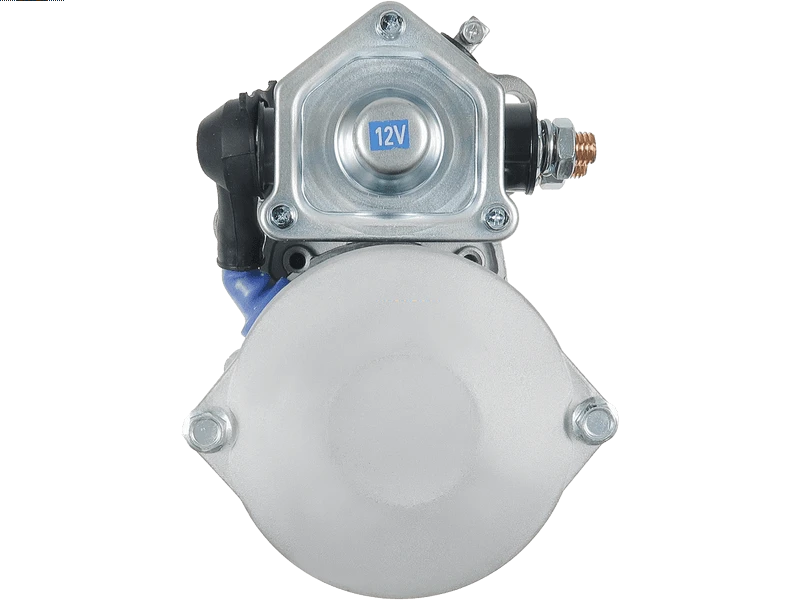

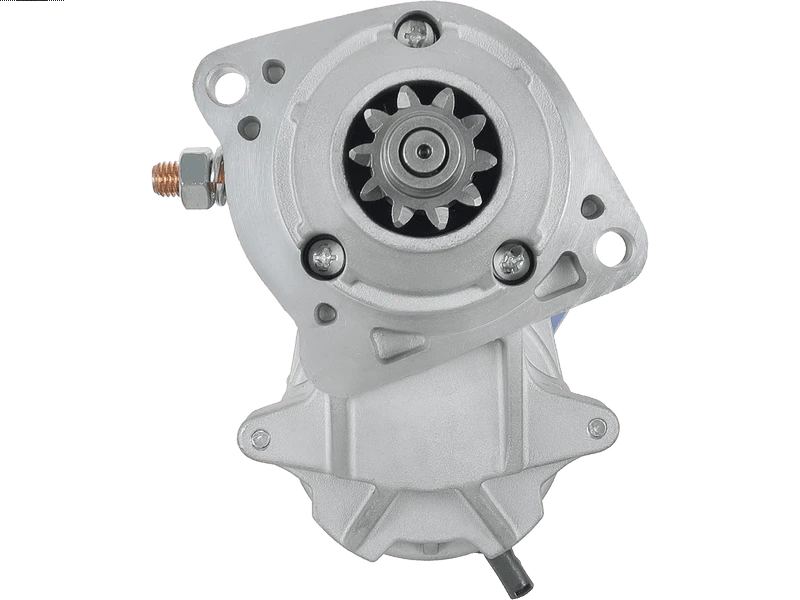

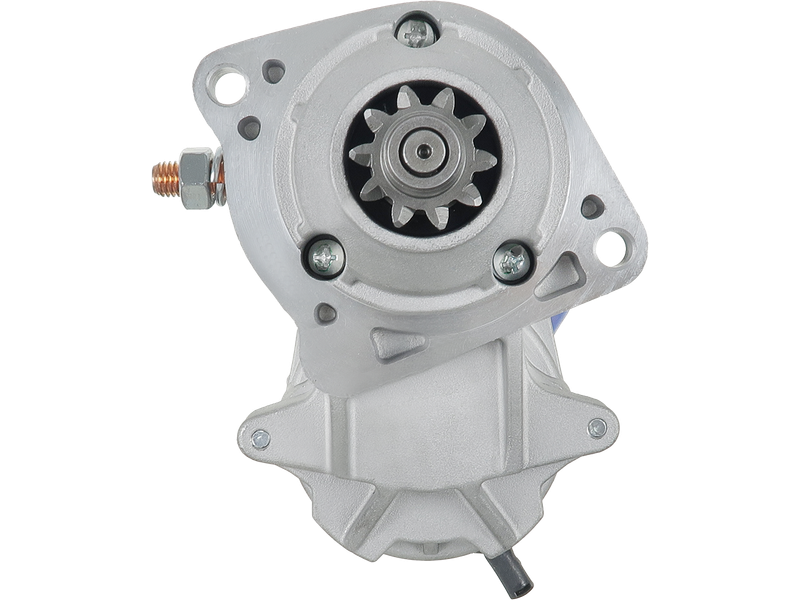

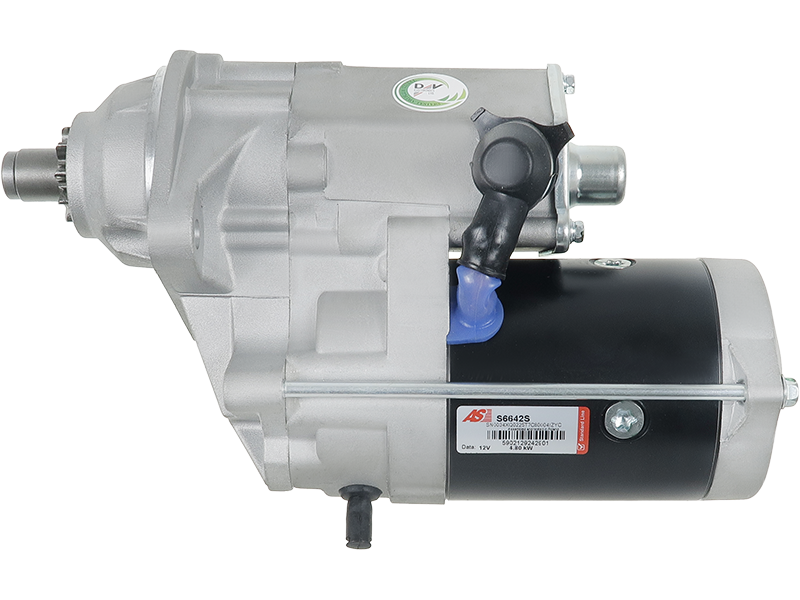

S6642S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 4.80 kW |
| Length (L.1) | 317 mm |
| Mount Hole Center - Center (O.1) | 128 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 48 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Engine 6.6 | [3116] | |
| CATERPILLAR | Engine 7.2 | [3126] |
Reference Information
| 0R9226 | CATERPILLAR |
| 10040434AV | ITAB AUTOMOTIVE |
| 107227 | FARCOM |
| 114645 | CARGO |
| 18989N | WAI / TRANSPO |
| 190-30118 | ROBERT'S |
| 20432434BN | REAL |
| 228000-5850 | DENSO |
| 228000-5851 | DENSO |
| 228000-7121 | DENSO |
| 24630112 | DIXIE |
| 254688 | KUHNER |
| 3123986 | HENKEL PARTS |
| 428000-1610 | DENSO |
| 6040434.0 | SANDO |
| 640.530.102.050 | PSH |
| 640.530.102.510 | PSH |
| 91295404 | WILSON |
| 9722809-585 | DENSO |
| CST40434AS | CASCO |
| DRS0283 | DELCO |
| F032114645 | CARGO |
| MAV424340A | SIOM |
| OR9226 | CATERPILLAR |
| RNL5851ND | RNL |
| S135.029 | PSH |
| S8649 | DIXIE |
| SDN434A | AUTOTEAM |
| STN4645 | KUHNER |
| STR6469 | ELECTROLOG |
| STR70337 | WOODAUTO |
| STR9050 | UNIPOINT |
| UD102958S | AS-PL |
| WOOSTR70337 | WOODAUTO |
