Price:
NZ$ 512.10 including GST
NZ$ 445.30 excluding GST
or four payments of $128.03
with
Learn More
each

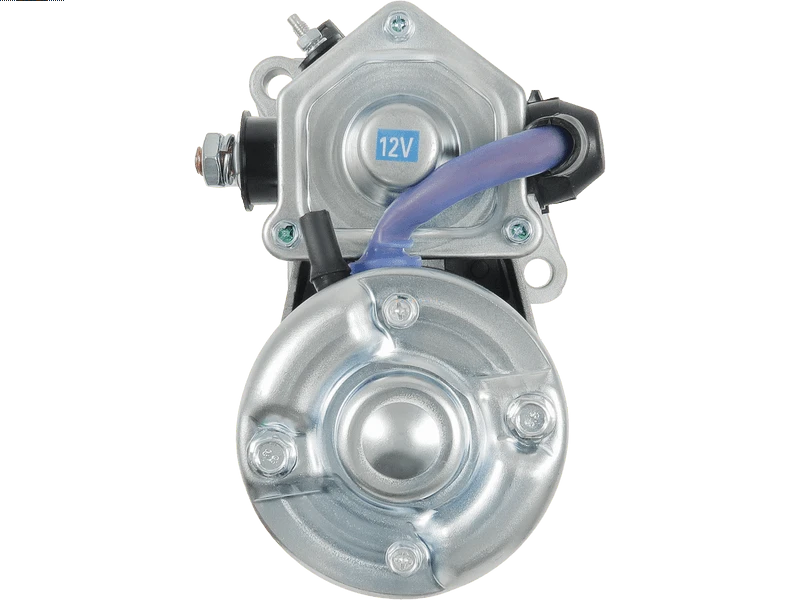

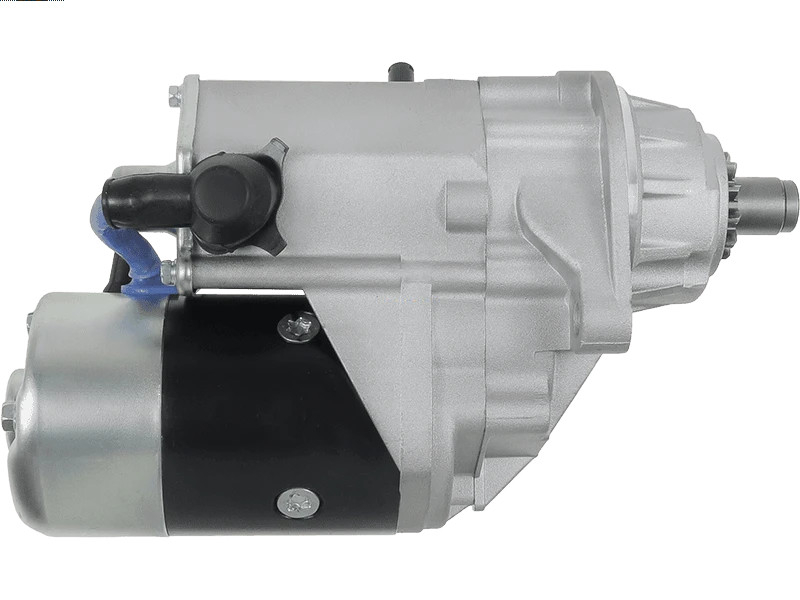

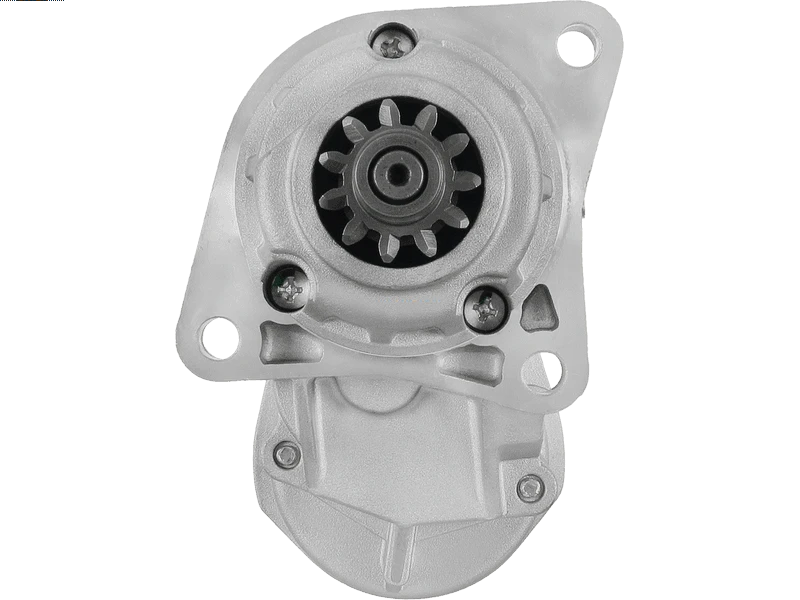

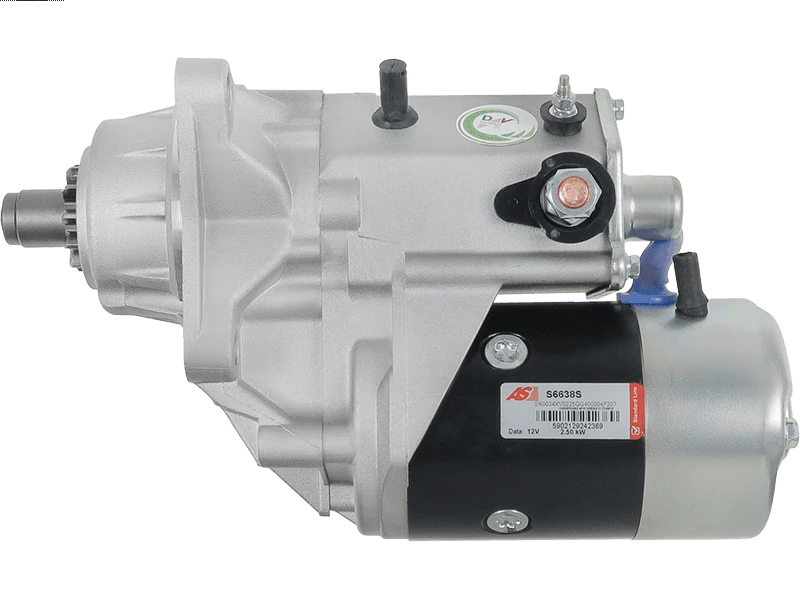

S6638S
No stock in NZ currently
No stock in NZ currently
Specifications
| Kilowatt | 2.50 kW |
| Length (L.1) | 299 mm |
| Mount Hole Center - Center (O.1) | 90.00 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| Mount Hole Diameter (C.3) | 11.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 47 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HINO | 145 NA 4.7 | [J05D-TA/TF] | 01.2005-12.2010 |
| HINO | 165 NB 4.7 | [J05D-TA/TF] | 01.2005-12.2010 |
| HINO | 185 NC 4.7 | [J05D-TA/TF] | 01.2005-12.2010 |
Reference Information
| 190-25179 | ROBERT'S |
| 190-25179NOE | ROBERT'S |
| 260.503.113.050 | PSH |
| 28100-2910B | HINO |
| 28100-2910R | HINO |
| 28100-2911A | HINO |
| 28100-2911B | HINO |
| 428000-2500 | DENSO |
| 91-29-5867 | WILSON |
| STN2502 | KRAUF |
| UD102963S | AS-PL |
