S6614S - Brand new AS-PL Starter motor

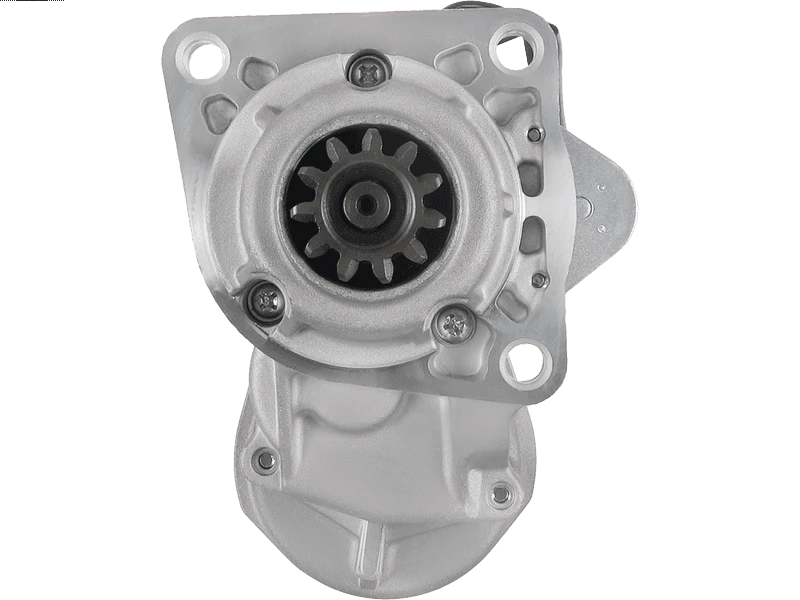

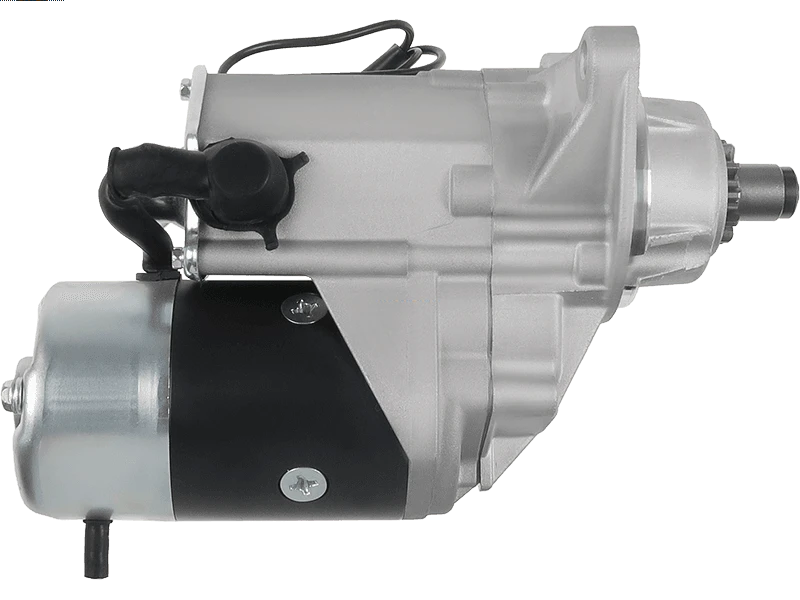

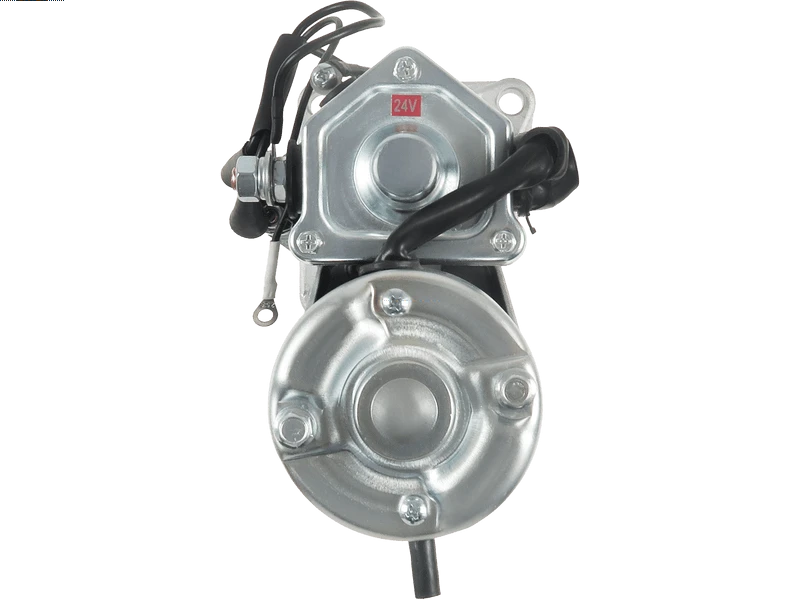

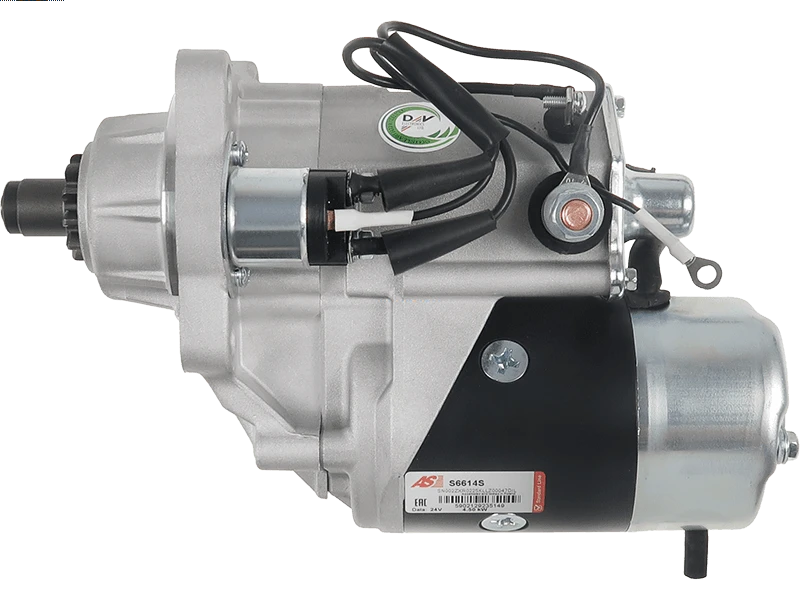

Name: Brand new AS-PL Starter motor
Brand: AS GROUP NZ
SKU: S6614S
Price: 532.25 NZD
Availability: SoldOut

Price:

NZ$ 532.25 including GST

NZ$ 462.83 excluding GST

or four payments of $133.06 with
Learn More

UOM:

each

Product Code:

S6614S

Quantity In Stock Nationally:

No stock in NZ currently

Availability:

No stock in NZ currently

Specifications
Vehicle Applications
Reference Information

Kilowatt	4.50 kW
Length (L.1)	296 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
Pinion at Rest (B)	48 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	DENSO
Voltage	24 V

Make	Model	Type	Year
VOLVO	FL 180-10 5.5	[D6B]	03.2000-
VOLVO	FL 180-11 5.5	[D6B180]	03.2000-
VOLVO	FL 180-12 5.5	[D6B180]	03.2000-
VOLVO	FL 180-13 5.5	[D6B180]	03.2000-
VOLVO	FL 180-14 5.5	[D6B180]	03.2000-
VOLVO	FL 180-15 5.5	[D6B180]	03.2000-
VOLVO	FL 220-10 5.5	[D6B]	03.2000-
VOLVO	FL 220-11 5.5	[D6B]	03.2000-
VOLVO	FL 220-12 5.5	[D6B]	03.2000-
VOLVO	FL 220-13 5.5		03.2000-
VOLVO	FL 220-14 5.5	[D6B220]	03.2000-
VOLVO	FL 220-15 5.5	[D6B220]	03.2000-
VOLVO	FL 220-16 5.5	[D6B]	03.2000-
VOLVO	FL 220-17 5.5	[D6B220]	03.2000-
VOLVO	FL 250-10 5.5	[D6B]	03.2000-
VOLVO	FL 250-11 5.5	[D6B250]	03.2000-
VOLVO	FL 250-12 5.5	[D6B250]	03.2000-
VOLVO	FL 250-13 5.5	[D6B250]	03.2000-
VOLVO	FL 250-14 5.5	[D6B]	03.2000-
VOLVO	FL 250-15 5.5	[D6B250]	03.2000-
VOLVO	FL 608 5.5	[D6A180]	01.1991-12.1999
VOLVO	FL 608 5.5	[D6A210]	01.1993-12.1999
VOLVO	FL 608 5.5	[TD61G]	10.1985-12.1999
VOLVO	FL 608 5.5	[TD61GA]	10.1985-12.1999
VOLVO	FL 608 5.5	[TD63E]	01.1991-12.1999
VOLVO	FL 608 5.5	[TD63ES]	01.1993-12.1999
VOLVO	FL 609 5.5	[D6A210]	01.1993-08.2000
VOLVO	FL 609 5.5	[TD63ES]	01.1993-08.2000
VOLVO	FL 610 5.5	[D6A210]	01.1993-08.2000
VOLVO	FL 610 5.5	[TD63ES]	01.1993-08.2000
VOLVO	FL 617 5.5	[D6A180]	09.1985-08.2000
VOLVO	FL 617 5.5	[D6B180]	09.1985-08.2000
VOLVO	FL 617 5.5	[TD61GB]	09.1985-08.2000
VOLVO	FL 617 5.5	[TD61GC]	09.1985-08.2000
VOLVO	FL 617 5.5	[TD61GS]	09.1985-08.2000
VOLVO	FL 617 5.5	[TD63E]	09.1985-08.2000
VOLVO	FL 618 5.5	[D6A250]	01.1995-08.2000
VOLVO	FL 618 5.5	[D6B250]	01.1995-08.2000
VOLVO	FL 619 5.5	[TD61F]	09.1985-11.1994
VOLVO	FL 621 5.5	[D6B220]	01.1995-08.2000
VOLVO	FL 626 5.5	[D6A230]	01.1995-08.2000
VOLVO	FL 626 5.5 CNG	[G6B205]	01.1995-08.2000

10040627AV	ITAB AUTOMOTIVE
128000-7600	DENSO
128000-7601	DENSO
128000-7602	DENSO
128000-7603	DENSO
128000-7604	DENSO
19789	LESTER
19789N	WAI / TRANSPO
20432726BN	REAL
336487	LOGISTIK
338034094	DRI
420760	VOLVO
45-1354	ELSTOCK
6040627.0	SANDO
811.519.113.050	PSH
8192262	VOLVO
AC-CBS1443	ACAUTO
CS1443	HC PARTS
CST40627AS	CASCO
IR9719	PROTECH
LRS02153	LUCAS
LRS2153	LUCAS
PRSS869	3EFFE
S101770	BTS TURBO
S135.540	PSH
ST02533	TMI
STR22055AN	WOODAUTO
STR6734	ELECTROLOG
STRS869	3EFFE
UD102533S	AS-PL
WOOSTR22055AN	WOODAUTO
