Price:
NZ$ 522.69 including GST
NZ$ 454.51 excluding GST
or four payments of $130.67
with
Learn More
each
S1294S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

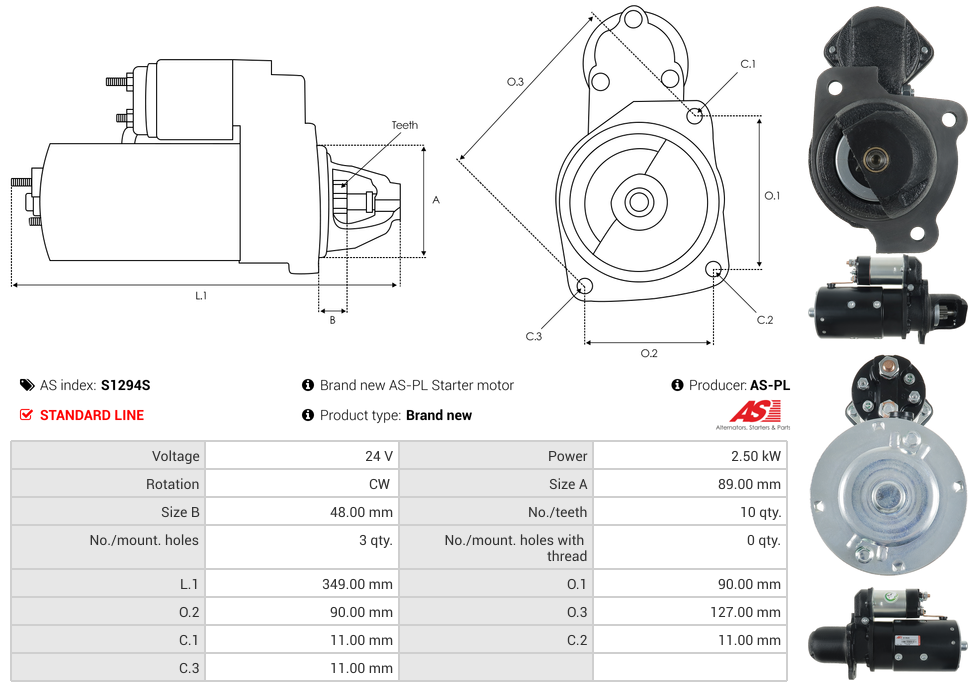

Specifications
| Kilowatt | 2.50 kW |
| Length (L.1) | 349 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 48 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | Various Models |
Reference Information
| 1109051 | DELCO |
| 140-27131 | ROBERT'S |
| 140878 | LESTER |
| 201-27207 | DIXIE |
| TS-1787 | DIXIE |
| UD102894S | AS-PL |
