Price:
NZ$ 522.69 including GST
NZ$ 454.51 excluding GST
or four payments of $130.67
with
Learn More
each
S1289S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

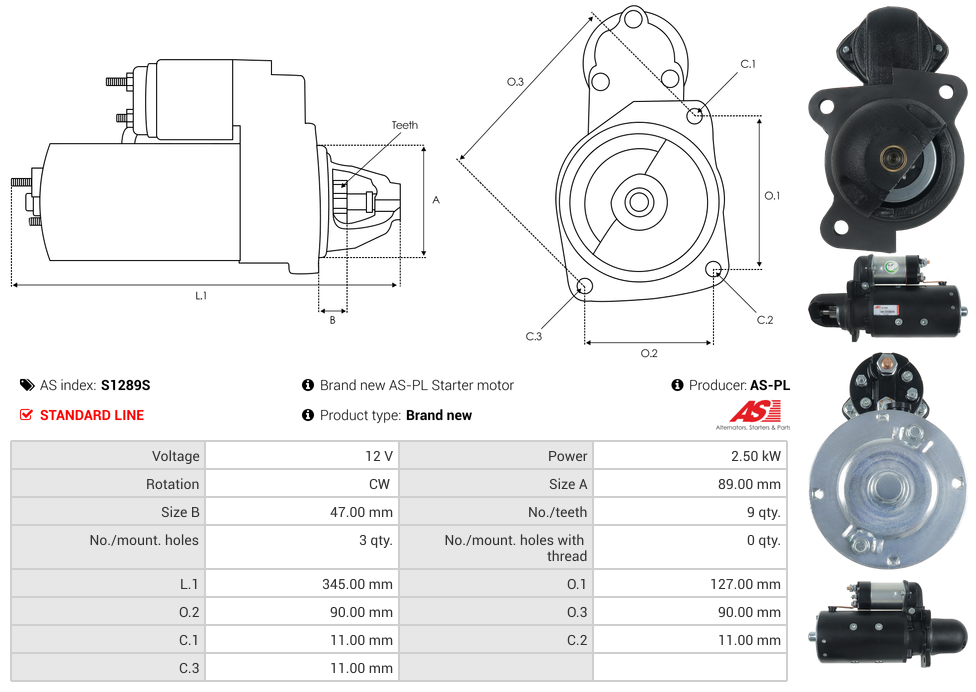

Specifications
| Kilowatt | 2.50 kW |
| Length (L.1) | 345 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 47 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALLIS CHALMERS | AC-P 40D | [TMD27] | 01.1982-12.1985 |
| ALLIS CHALMERS | AC-P 50D | [TMD27] | 01.1982-12.1985 |
| ALLIS CHALMERS | AC-S 70D | [TMD27] | 01.1982-12.1985 |
Reference Information
| 1109147 | DELCO |
| 140-27144 | ROBERT'S |
| 1998276 | DELCO |
| 1998402 | DELCO |
| 201-27136 | DIXIE |
| 3004555 | HYSTER |
| 6147 | LESTER |
| 6147N | WAI / TRANSPO |
| 6169 | LESTER |
| 8620794 | ALLIS CHALMERS |
| 91-01-4238 | WILSON |
| TS-1346 | DIXIE |
| UD102950S | AS-PL |
