Price:
NZ$ 546.94 including GST
NZ$ 475.60 excluding GST
or four payments of $136.74
with
Learn More
each

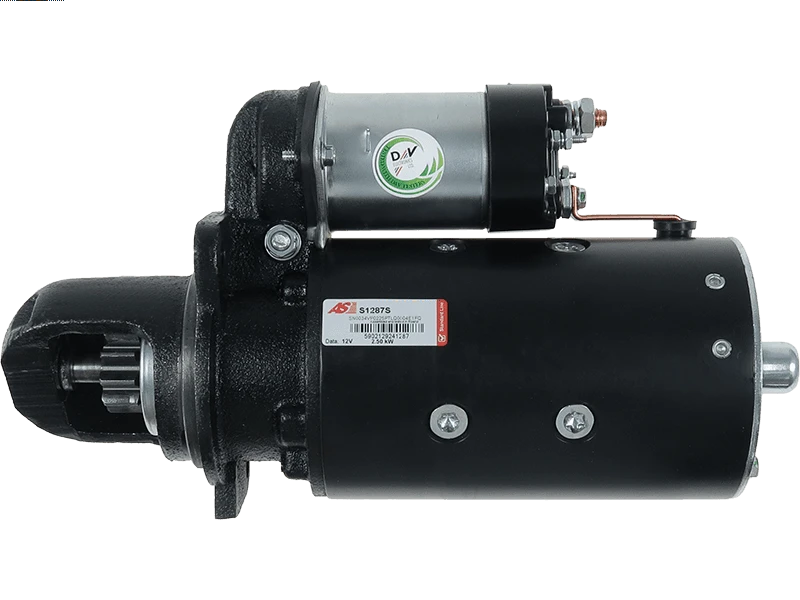

S1287S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 2.50 kW |
| Length (L.1) | 349 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 47 mm |
| Rotation | ACW |
| Spigot Diameter (A) | 88.50 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 65C | ||
| CATERPILLAR | 65E | ||
| CATERPILLAR | 75C | ||
| CATERPILLAR | 75D | ||
| CATERPILLAR | 75E | ||
| CATERPILLAR | 85C | ||
| CATERPILLAR | 85D | ||
| CATERPILLAR | 85E | ||
| CATERPILLAR | 95E | ||
| CATERPILLAR | CP-563 | ||
| CATERPILLAR | CS-323C | ||
| CATERPILLAR | CS-531 | ||
| CATERPILLAR | CS-531C | ||
| CATERPILLAR | CS-533C | ||
| CATERPILLAR | CS-563C | ||
| CATERPILLAR | CS-573C | ||
| CATERPILLAR | CS-583 | ||
| CATERPILLAR | CS-583C | ||
| CATERPILLAR | PM-201 | ||
| CATERPILLAR | RM-500 | ||
| INTERNATIONAL | 500 | [BD-154] | 01.1965-12.1968 |
| INTERNATIONAL | TCD-5 | [D-144] | 01.1959-12.1964 |
Reference Information
| 1107544 | DELCO |
| 1108659 | DELCO |
| 201-27115 | DIXIE |
| 260-62178 | DIXIE |
| 4194 | LESTER |
| 4523 | LESTER |
| 91-01-3990 | WILSON |
| TS-1119A | DIXIE |
| UD102885S | AS-PL |
