Price:
NZ$ 343.71 including GST
NZ$ 298.88 excluding GST
or four payments of $85.93
with
Learn More
each
S01027S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

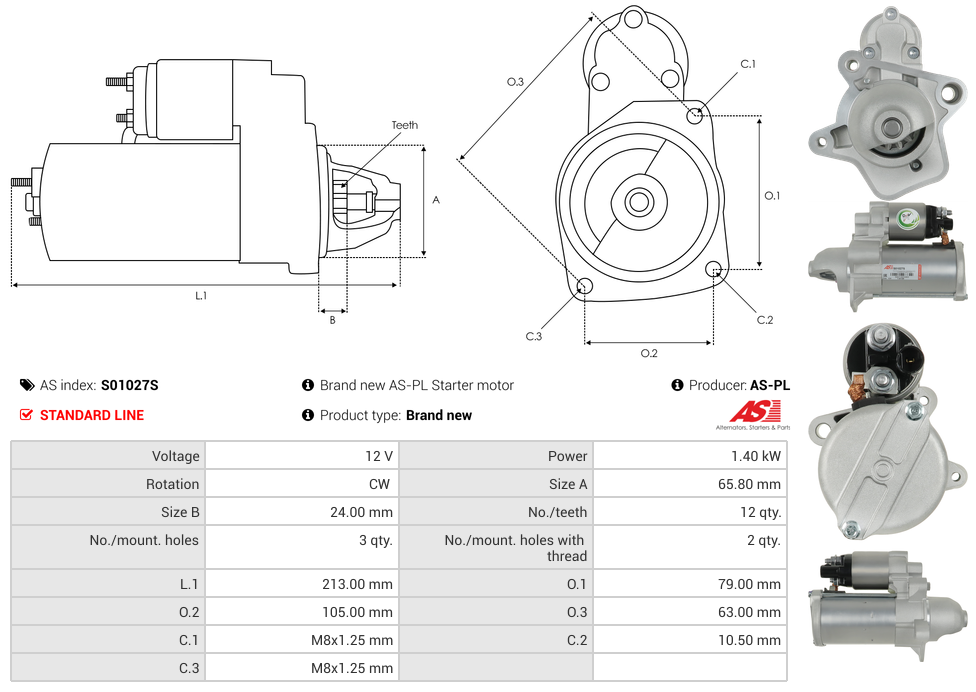

Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 213 mm |
| Mount Hole Center - Center (O.1) | 79 mm |
| Mount Hole Center - Center (O.2) | 105 mm |
| Mount Hole Center - Center (O.3) | 63 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 12 qty |
| Pinion at Rest (B) | 24 mm |
| Rotation | CW |
| Spigot Diameter (A) | 65.80 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JEEP | Cherokee 2.0 | 01.2019-12.2022 | |
| JEEP | Wrangler 2.0 | 01.2019-12.2022 |
Reference Information
| 0001172612 | BOSCH |
| 0001172613 | BOSCH |
| 120-10247NOE | ROBERT'S |
| 25-5628 | ELSTOCK |
| 56029737AA | CHRYSLER |
| 634092122 | DRI |
| 830.420.122.010 | PSH |
| 830.420.122.280 | PSH |
| 900-1098 | PIC |
| 911271 | DELCO |
| 91-15-7366 | WILSON |
| DRS1271 | DELCO |
| S-6342 | DIXIE |
| ST03065 | TMI |
| UD102459S | AS-PL |
