Price:
NZ$ 1,982.07 including GST
NZ$ 1,723.54 excluding GST
or four payments of $495.52
with
Learn More
each
S01026S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

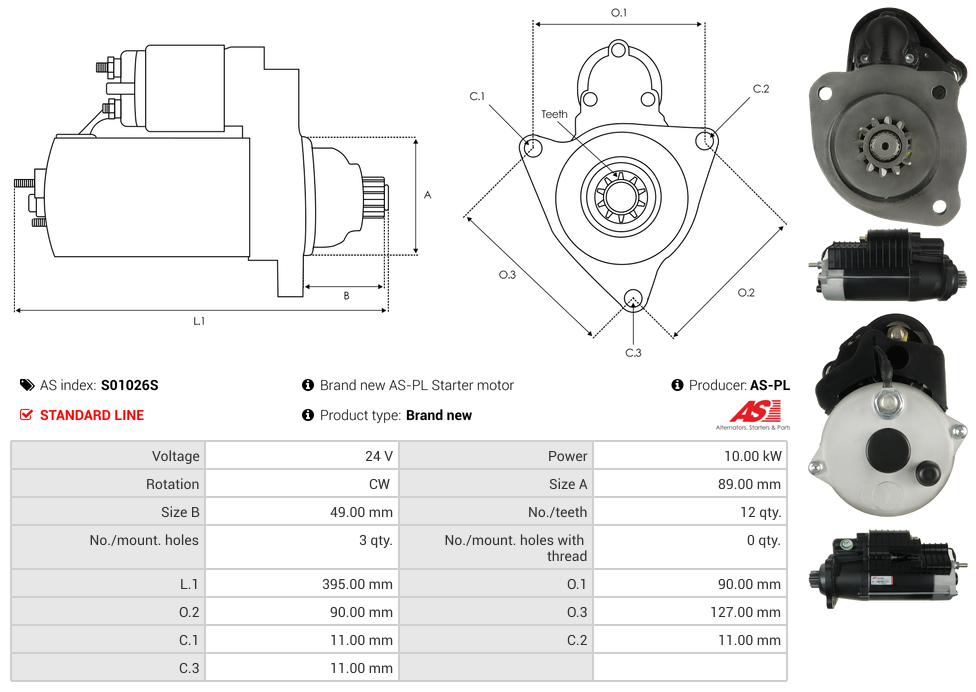

Specifications
| Kilowatt | 10 kW |
| Length (L.1) | 395 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| Pinion at Rest (B) | 49 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MWM | Various Models |
Reference Information
| 0001350018 | BOSCH |
| 0001350019 | BOSCH |
| 10010819OV | ITAB AUTOMOTIVE |
| 12344169 | MWM |
| 20401918OE | REAL |
| 255966B | KUHNER |
| 521.601.123.010 | PSH |
| 6010819.1 | SANDO |
| BOS0001350019 | WOODAUTO |
| CST10819GS | CASCO |
| MAV12819 | SITECH |
| MAV128190 | SITECH |
| STRJ208 | 3EFFE |
| UD30198S | AS-PL |
