Price:
NZ$ 752.56 including GST
NZ$ 654.40 excluding GST
or four payments of $188.14
with
Learn More
UOM:
each
Product Code:
A9506S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

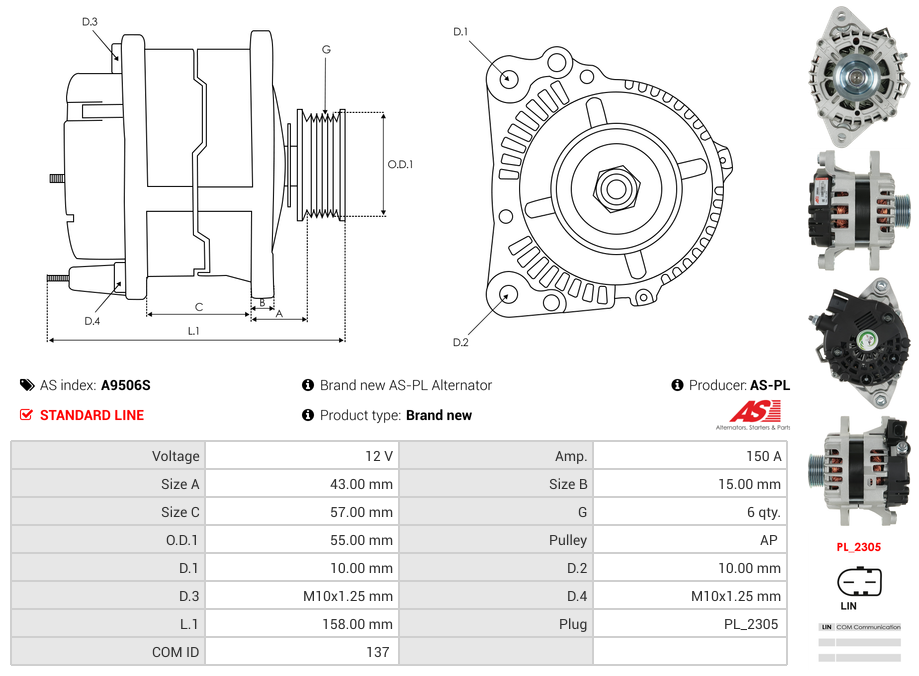

Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 15 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 158 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| Plug Code | PL_2305 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 55 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Solid |
| Unit Type | HYUNDAI / KIA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Azera 2.5 | 01.2020- | |
| HYUNDAI | Grandeur 2.5 | 01.2020- | |
| HYUNDAI | Santa Cruz 2.5 | 01.2020- | |
| HYUNDAI | SANTA CRUZ (NX4A OB) 2.5 GDI | G4KP | 09.2021- |
| HYUNDAI | Santa Fe 2.5 | 01.2021- | |
| HYUNDAI | SANTA FE IV (TM, TMA) 2.5 MPI | G4KM | 07.2021- |
| HYUNDAI | SANTA FE IV (TM, TMA) 2.5 MPI AWD | G4KM | 07.2021- |
| HYUNDAI | Sonata 2.5 | 01.2019- | |
| HYUNDAI | SONATA VIII (DN8) 2.5 MPI | G4KM | 01.2020- |
| HYUNDAI | Tucson 2.5 | 01.2020- | |
| HYUNDAI | TUCSON (NX4E, NX4A) 2.5 GDi HTRAC | G4KN | 01.2021- |
| KIA | Sorento 2.5 | 01.2021- |
Reference Information
| 2723062 | VALEO |
| 37300-2SGD1 | HYUNDAI / KIA |
| 90-22-5791 | WILSON |
| ALV4272 | KRAUF |
| UD102661A | AS-PL |
