Price:
NZ$ 530.37 including GST
NZ$ 461.19 excluding GST
or four payments of $132.59
with
Learn More
UOM:
each
Product Code:
A6863S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently

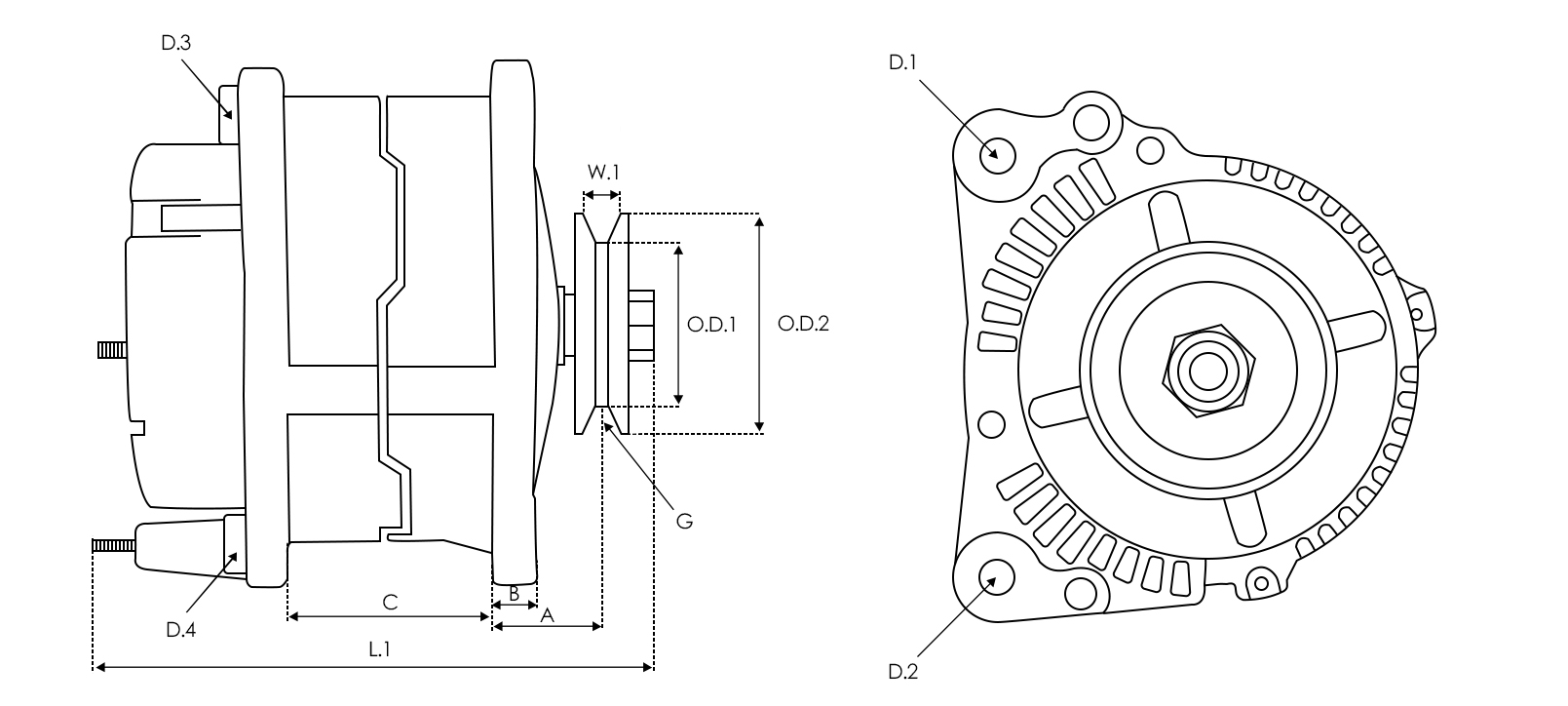

Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 282 mm |
| Mount Inside Length or Pad Mount C-C (C) | 110.50 mm |
| Plug Code | PL_3601 |
| Pulley Grooves | 1 qty |
| Pulley Outside Diameter (O.D.2) | 48 mm |
| Pulley to Mount Distance (A) | 66.00 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Land Cruiser HJ47 | ||
| TOYOTA | Land Cruiser HJ60 | ||
| TOYOTA | Land Cruiser HJ70 | ||
| TOYOTA | Land Cruiser HJ75 | ||
| TOYOTA | LAND CRUISER (_J4_, _J5_) 4.0 D (HJ47RV) | 2H | 08.1980-12.1984 |
| TOYOTA | LAND CRUISER (_J4_, _J5_) 4.0 D (HJ47_V) | 2H | 08.1980-10.1984 |
| TOYOTA | LAND CRUISER (_J6_) 4.0 D (HJ60_) | 2H | 10.1981-01.1988 |
| TOYOTA | LAND CRUISER (_J6_) 4.0 Diesel (HJ60) | 2H | 01.1982-12.1985 |
| TOYOTA | LAND CRUISER (_J6_) 4.0 Diesel (HJ60) | 2H | 08.1980-09.1982 |
| TOYOTA | LAND CRUISER (_J6_) 4.0 Diesel (HJ60) | 2H | 10.1982-12.1989 |
| TOYOTA | LAND CRUISER (_J7_, _JL7_) 4.0 D 4x4 (HJ75RV) | 2H | 11.1984-01.1990 |
| TOYOTA | LAND CRUISER Pickup (_J4_) 4.0 D (HJ47_P, HJ47RP) | 2H | 08.1980-09.1984 |
| TOYOTA | LAND CRUISER Pickup (_J4_) 4.0 D (HJ47_P, HJ47RP) | 2H | 08.1980-10.1984 |
| TOYOTA | LAND CRUISER Pick-up (_J7_, _JL7_) 4.0 D 4x4 (HJ75, HJ75RP) | 2H | 11.1984-03.1990 |
Reference Information
| 0986AN0630 | BOSCH |
| 100210-2830 | DENSO |
| 121000-1270 | DENSO |
| 27030-68110 | TOYOTA |
| ALN4098 | KRAUF |
| HXA027 | DENSO |
| UD103190A | AS-PL |
