Price:
NZ$ 530.47 including GST
NZ$ 461.28 excluding GST
or four payments of $132.62
with
Learn More
UOM:
each
Product Code:
A6858S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

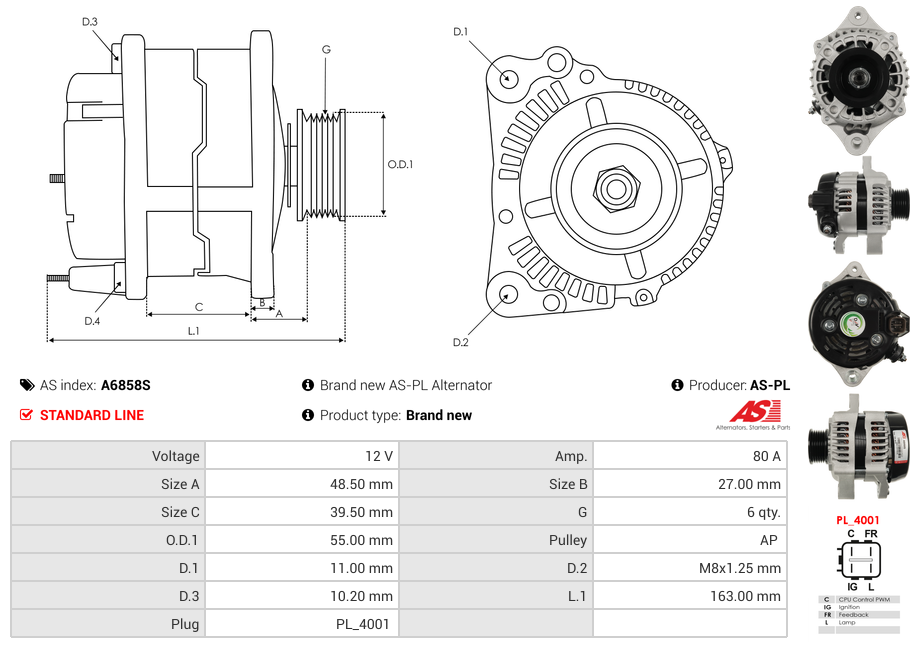

Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 27 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 10.20 mm |
| Length (L.1) | 163 mm |
| Mount Inside Length or Pad Mount C-C (C) | 39.50 mm |
| Plug Code | PL_4001 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 55 mm |
| Pulley to Mount Distance (A) | 48.50 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | LITEACE Bus (S4_) 1.5 (S402M) | 3SZ-VE | 01.2010- |
| TOYOTA | LITEACE Platform/Chassis (S4_U) 1.5 4WD (S412U) | 3SZ-VE | 01.2008- |
| TOYOTA | LITEACE Platform/Chassis (S4_U) 1.5 (S402U) | 3SZ-VE | 01.2008- |
| TOYOTA | LITEACE Van (S4_) 1.5 (S402M) | 3SZ-VE | 01.2008- |
| TOYOTA | Previa 2.4 | 01.2011-12.2014 | |
| TOYOTA | Previa 3.5 | 01.2011-12.2014 | |
| TOYOTA | Town Ace | 01.2008-12.2016 | |
| TOYOTA | TOWN ACE Platform/Chassis (S4_) 1.5 4WD (S412U) | 3SZ-VE | 01.2008- |
| TOYOTA | TOWN ACE Platform/Chassis (S4_) 1.5 (S402U) | 3SZ-VE | 01.2008- |
| TOYOTA | TOWN ACE Van (S4_) 1.5 4WD (S412M) | 3SZ-VE | 01.2008- |
| TOYOTA | TOWN ACE Van (S4_) 1.5 (S402M) | 3SZ-VE | 01.2008- |
| TOYOTA | Yaris 1.0 |
Reference Information
| 104210-9190 | DENSO |
| 104210-9520 | DENSO |
| 20504 | LESTER |
| 27060-BZ200 | DENSO |
| 27060-BZ202 | DENSO |
| A6858 | AS-PL |
| ALT6785 | ELECTROLOG |
| TG104210-9520 | DENSO |
| UD103201A | AS-PL |
Video/Publications
