Price:
NZ$ 579.28 including GST
NZ$ 503.72 excluding GST
or four payments of $144.82
with
Learn More
UOM:
each
Product Code:
A6847S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

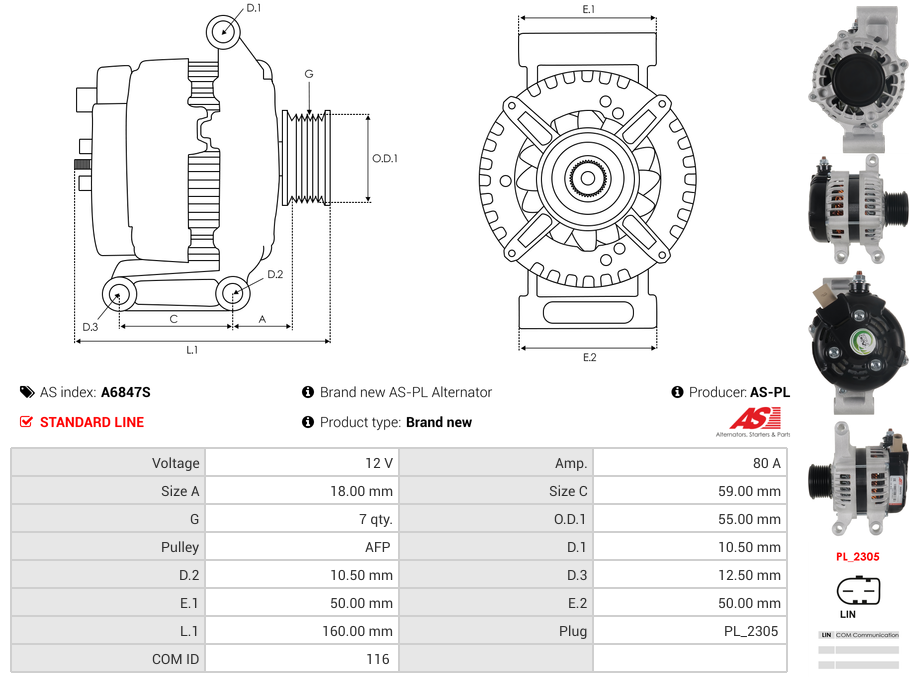

Specifications
| Amp | 80 A |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 160 mm |
| Mount Inside Length or Pad Mount C-C (C) | 59 mm |
| Pad mount thickness (E.1) | 50 mm |
| Pad mount thickness (E.2) | 50 mm |
| Plug Code | PL_2310 |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.2) | 55 mm |
| Pulley to Mount Distance (A) | 18 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISUZU | D-Max 1.9 Ddi | [RZ4E-TC] | 03.2017-12.2022 |
| ISUZU | D-Max 1.9 Ddi 4x4 | [RZ4E-TC] | 03.2017-12.2022 |
| ISUZU | D-Max 1.9 Ddi 4x4 | [RZ4E-TCX] | 11.2019- |
| ISUZU | D-MAX III (TFR, TFS) 1.9 DDI 4x4 (TFS87) | RZ4E-TCX | 11.2019- |
| ISUZU | D-MAX II (TFR, TFS) 1.9 Ddi 4x4 (TFS87J) | RZ4E-TC | 03.2017-12.2022 |
| ISUZU | D-MAX II (TFR, TFS) 1.9 Ddi (TFR87J) | RZ4E-TC | 03.2017-12.2022 |
Reference Information
| 104211-2630 | DENSO |
| 135.938.090.050 | WAI |
| 21927N | WAI |
| 8983852170 | ISUZU |
| A6847S | AS-PL |
| ALT6940 | ELECTROLOG |
| AM-3351 | AUTO MAGNETO |
| TG104211-2630 | DENSO |
| UD102613A | AS-PL |
View your shopping basket or Browse other items in Alternators.
