Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 529.62 including GST
NZ$ 460.54 excluding GST
or four payments of $132.41
with
Learn More
each
S9787S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

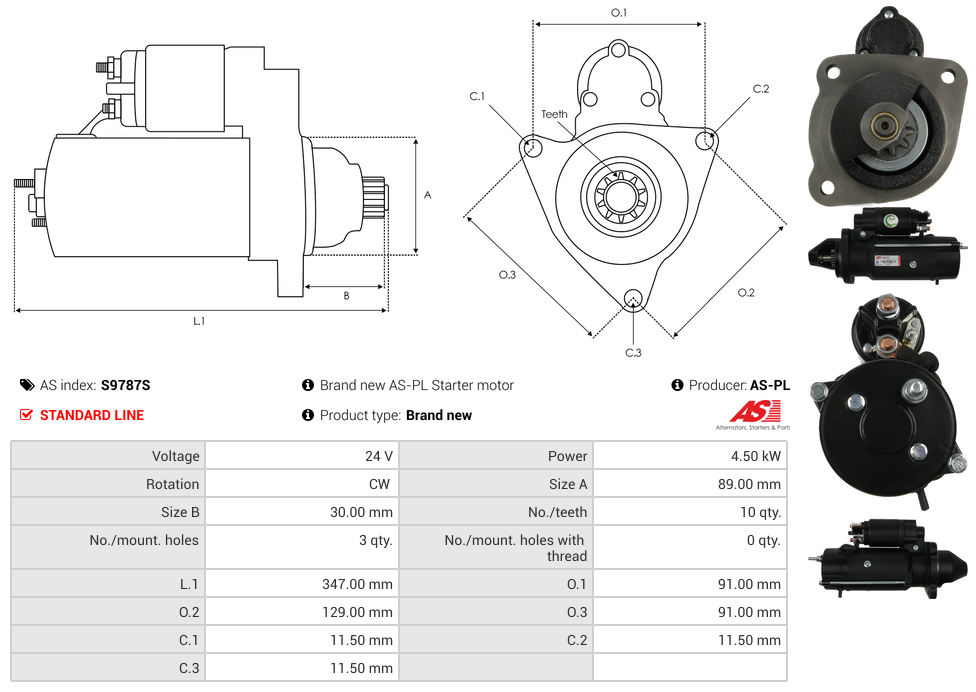

MS196Specifications
| Kilowatt | 4.50 kW |
| Length (L.1) | 347 mm |
| Mount Hole Center - Center (O.1) | 91 mm |
| Mount Hole Center - Center (O.2) | 129 mm |
| Mount Hole Center - Center (O.3) | 91 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| Mount Hole Diameter (C.3) | 11.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 30 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | M315D2 | ||
| CATERPILLAR | M317D2 | ||
| PERKINS | Various Models |
Reference Information
| 10021648OV | ITAB AUTOMOTIVE |
| 109147 | FARCOM |
| 11.131.897 | ISKRA / LETRIKA |
| 11.132.188 | ISKRA / LETRIKA |
| 182-30531 | ROBERT'S |
| 20419846OE | REAL |
| 3417601 | PERKINS |
| 6021648.1 | SANDO |
| 701.541.103.310 | PSH |
| 72735824 | MAHLE |
| AZF4246 | ISKRA / LETRIKA |
| AZF4326 | ISKRA / LETRIKA |
| CST21648GS | CASCO |
| IS1290 | ISKRA / LETRIKA |
| MAHMS196 | WOODAUTO |
| MAV236480 | SIOM |
| MS196 | MAHLE |
| S145.143 | PSH |
| STI2558 | KRAUF |
| STR79286 | ELECTROLOG |
| UD102262S | AS-PL |
| WG2044953 | WILMINK GROUP |
Video/Publications
