Information
428000-8740Associated Numbers
107324 Farcom 11090339 EuroTec 122901 EAA 1909356 PIC 254366 Elstock 4280008740 JAGUAR C2Z13750 CX2311001AC LUCAS LRS02694 LRS2694 314054132 DRI 3907 CEVAM Denso 5228000915 6040540 Sando 840511133 PSH 911004 EDR AEY2694 Auto Electro Jaguar DRS1004 Remy DS2114 Lucas ST1196 AMK 10040540OV 88214761 20432045OE CST40540GS AZMT-53-010-1558 ST01858 EAA-123751 STR6726 10040540AV 254788 AC-CBS6090 428000-8740 20432045BN 3126755 STRE277 840.511.133.050 STN8740 6040540.1 31276N CX23-11001-AC SDN540 25-4366 CST40540AS UD102555S STR70352
107324 Farcom
11090339 EuroTec
122901 EAA
1909356 PIC
254366 Elstock
4280008740
10040540OV 88214761 20432045OE CST40540GS AZMT-53-010-1558 ST01858 EAA-123751 STR6726 10040540AV 254788 LRS02694 AC-CBS6090 428000-8740 6040540 314054132 LRS2694 20432045BN 11090339 3126755 STRE277 C2Z13750 AEY2694 107324 840.511.133.050 STN8740 6040540.1 31276N CX23-11001-AC SDN540 25-4366 3907 CST40540AS UD102555S STR70352
|
31276N |
WAI |
|---|---|
|
4280008740 |
Denso |
|
5228000915 |
Denso |
|
840511133 |
PSH |
|
C2Z13750 |
Jaguar |
|
CX2311001AC |
Jaguar |
|
DRS1004 |
Delco Remy |
|
DS2114 |
Delco Remy |
|
LRS02694 |
Lucas |
|
LRS2694 |
Lucas |
|
STR70352 |
Wood Auto |
|
WOOSTR70352 |
Wood Auto |
4280008740
JAGUAR C2Z13750
JAGUAR CX2311001AC
LUCAS LRS02694
LUCAS LRS2694
JAGUAR C2Z13750
JAGUAR CX2311001AC
LUCAS LRS02694
LUCAS LRS2694
314054132 DRI
3907 CEVAM
4280008740 Denso
5228000915 Denso
6040540 Sando
840511133 PSH
911004 EDR
AEY2694 Auto Electro
C2Z13750 Jaguar
CX2311001AC Jaguar
DRS1004 Remy
DS2114 Remy
LRS02694 Lucas
LRS2694 Lucas
ST1196 AMK

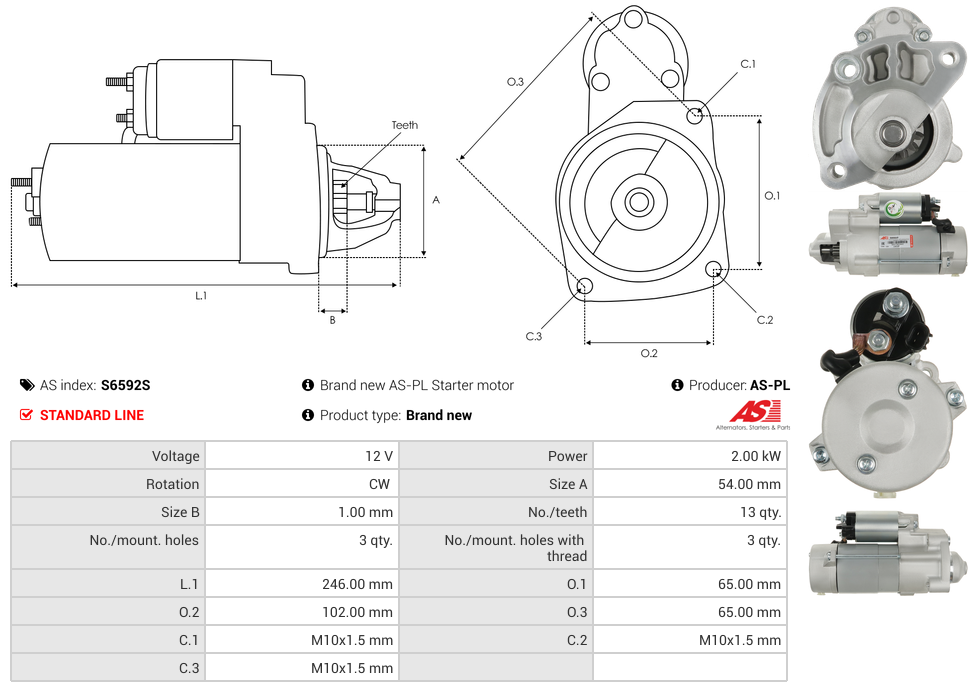

Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 246 mm |
| Mount Hole Center - Center (O.1) | 65 mm |
| Mount Hole Center - Center (O.2) | 102 mm |
| Mount Hole Center - Center (O.3) | 65 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 1 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 54 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAGUAR | XF 2.2 D | [224DT(DW12C)] | 03.2012-04.2015 |
| JAGUAR | XF 2.2 D | [224DT(DW12C)] | 04.2011-04.2015 |
| JAGUAR | XF 2.2 D | [224DT(DW12C)] | 05.2011-04.2015 |
| JAGUAR | XF Sportbrake 2.2 D | [224DT(DW12C)] | 09.2012-04.2014 |
Reference Information
| 10040540AV | ITAB AUTOMOTIVE |
| 10040540OV | ITAB AUTOMOTIVE |
| 107324 | FARCOM |
| 11090339 | EUROTEC |
| 20432045BN | REAL |
| 20432045OE | REAL |
| 25-4366 | ELSTOCK |
| 254788 | KUHNER |
| 3126755 | HENKEL PARTS |
| 31276N | WAI / TRANSPO |
| 314054132 | DRI |
| 3907 | CEVAM |
| 428000-8740 | DENSO |
| 6040540.0 | SANDO |
| 6040540.1 | SANDO |
| 840.511.133.050 | PSH |
| 88214761 | POWERMAX |
| AC-CBS6090 | ACAUTO |
| AEY2694 | AUTOELECTRO |
| AZMT-53-010-1558 | A.Z. MEISTERTEILE |
| C2Z13750 | JAGUAR |
| CST40540AS | CASCO |
| CST40540GS | CASCO |
| CX23-11001-AC | FORD |
| LRS02694 | LUCAS |
| LRS2694 | LUCAS |
| S135.754 | PSH |
| SDN540 | AUTOTEAM |
| ST01858 | TMI |
| STN8740 | KRAUF |
| STR6726 | ELECTROLOG |
| STR70352 | WOODAUTO |
| STRE277 | 3EFFE |
| UD102555S | AS-PL |
Video/Publications
