Associated Numbers
J N 41012171 41012471 Delco 9000888 Wilson 91013904 References: Arrowhead SDR0252 J& 41012114 JANNCO 41012198R Lester 6793 Mercury Marine 50808011A4 Volvo 3862985 855334 71016793 91014559 41012198 19010615 IMI Hi Torque IMI302001 21129980 22361DR2 WAI 50808011A05 6793N 8000186 Remy 970505092 PSH L26925202A 41012171R 10457444 10457445 10457447 10457462 6616 Lucas TVS 26925202A OMC 921288 71014298 9101 SDR0393 6966 PIC Picture ID 1406075A 10455602 1108742 1109485 1998405 Substitutes: 91014433 57-074 57074

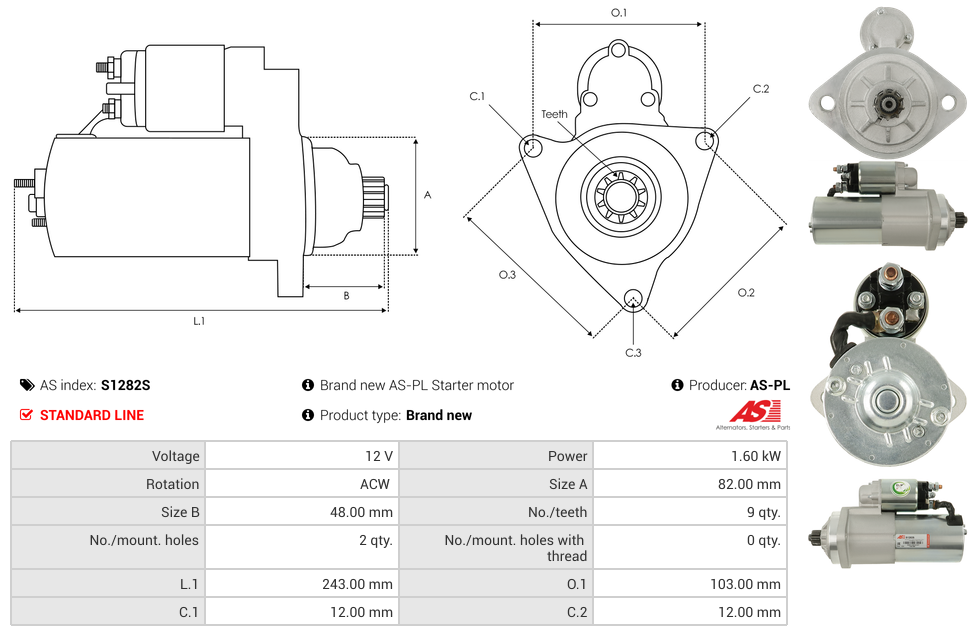

Specifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 243 mm |
| Mount Hole Center - Center (O.1) | 103 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCRUISER | 500 8.9 Bulldog | 01.1997-12.2001 |
Reference Information
| 10060141AV | ITAB AUTOMOTIVE |
| 20409141BN | REAL |
| 21129980 | VOLVO |
| 26-4405 | ELSTOCK |
| 3862985 | VOLVO |
| 50-808011A05 | MERCRUISER |
| 50-808011A4 | MERCRUISER |
| 6060141.0 | SANDO |
| 619131092 | DRI |
| 6793 | LESTER |
| 6793N | WAI / TRANSPO |
| 8000186 | DELCO |
| 9000888 | DELCO |
| 91-01-4559 | WILSON |
| 970.505.092.030 | PSH |
| CST60141AS | CASCO |
| LRS02732 | LUCAS |
| LRS2732 | LUCAS |
| RA122009 | MISCELLANEOUS |
| S102616 | BTS TURBO |
| S136.068 | PSH |
| S1479 | DIXIE |
| SDL141A | AUTOTEAM |
| ST02420 | TMI |
| STR80138 | WOODAUTO |
| TT16011 | TESLA |
| UD102429S | AS-PL |
| WOOSTR80138 | WOODAUTO |
