Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
CASE
Price:
NZ$ 436.86 including GST
NZ$ 379.88 excluding GST
or four payments of $109.22
with
Learn More
each
S9361S
S9786S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

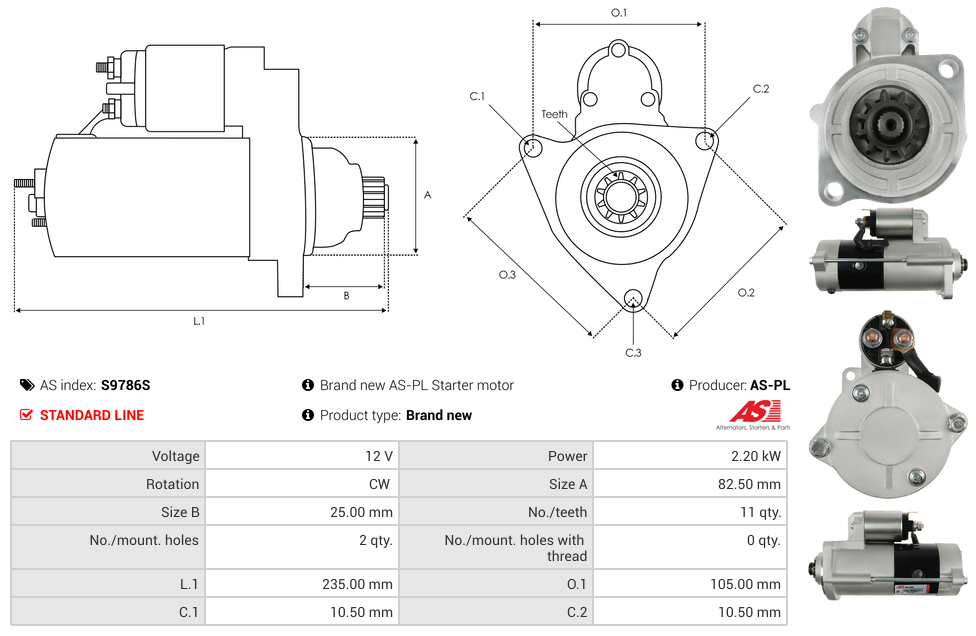

40333447Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | CASE |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LS | G40 | ||
| LS | R50 | ||
| LS | R60 | ||
| LS | R65 | ||
| LS | U60 | [S4Q] | |
| LS | U60 | [S4QT] | |
| LS | U65 |
Reference Information
| 256345 | KUHNER |
| 256345M | KUHNER |
| 40333447 | CASE |
| QDJ1331 | CASE |
| UD102436S | AS-PL |
