Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 140.98 including GST
NZ$ 122.59 excluding GST
or four payments of $35.25
with
Learn More
each
S9777S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

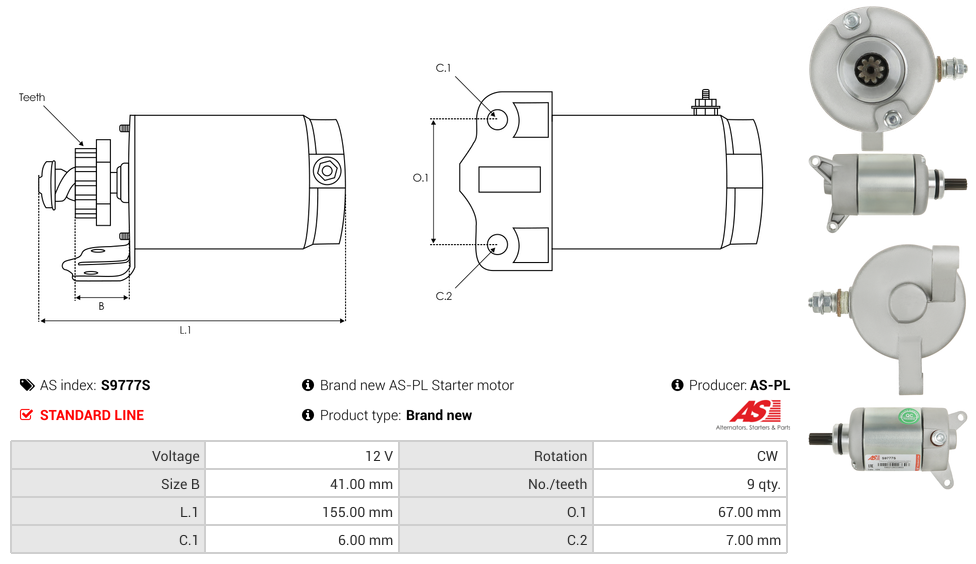

Specifications
| Length (L.1) | 155 mm |
| Mount Hole Center - Center (O.1) | 67 mm |
| Mount Hole Diameter (C.1) | 6 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | YFZ450 | [439cc] | 01.2004-12.2008 |
Reference Information
| 10439180 | ALANKO |
| 18761 | LESTER |
| 18761N | WAI / TRANSPO |
| 400.530.102.190 | PSH |
| 439180 | ALANKO |
| 5TG-81800-00 | YAMAHA |
| 5TG-81800-00-00 | YAMAHA |
| 5TG-81890-00 | YAMAHA |
| 5TG-81890-00-00 | YAMAHA |
| 71-26-18761 | WILSON |
| RS41235 | DELCO |
| STR75476 | WOODAUTO |
| UD19071S | AS-PL |
Video/Publications
