Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 166.64 including GST
NZ$ 144.90 excluding GST
or four payments of $41.66
with
Learn More
each
S9764S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

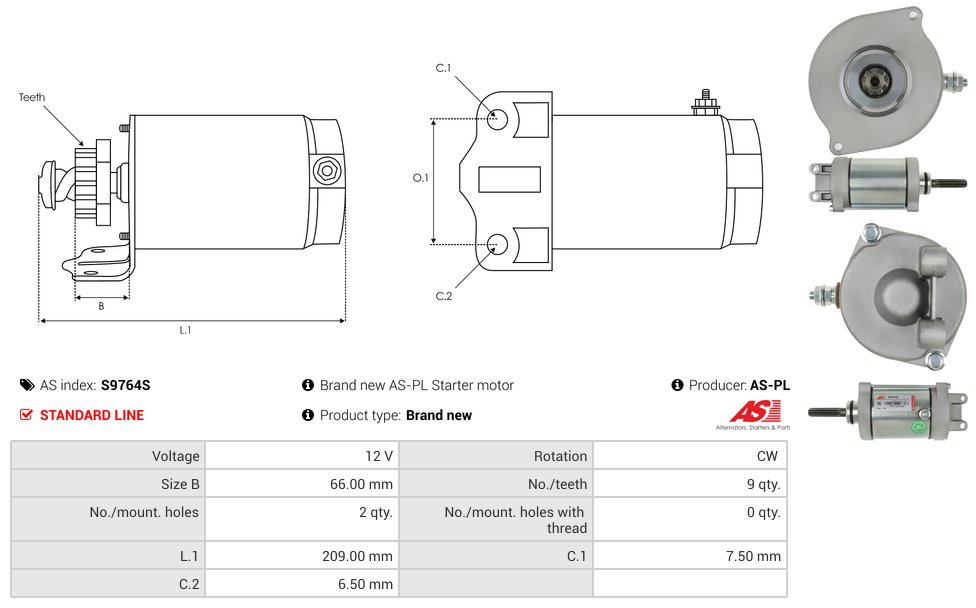

Specifications
| Length (L.1) | 209 mm |
| Mount Hole Diameter (C.1) | 7.50 mm |
| Mount Hole Diameter (C.2) | 6.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 66 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ARCTIC CAT | 700 EFI | [695cc] | 01.2006-12.2008 |
| ARCTIC CAT | 700 EFI LE | [695cc] | 01.2007-12.2008 |
| ARCTIC CAT | 700 TRV | [695cc] | 01.2007-12.2008 |
| SUZUKI | LT-A700X | [695cc] | 01.2005-12.2007 |
| SUZUKI | LT-A750X | [722cc] | 01.2008-12.2008 |
Reference Information
| 18810 | LESTER |
| 18810N | WAI / TRANSPO |
| 31100-31G00 | SUZUKI |
| 3545-020 | ARCTCO |
| 410-54073 | J&N |
| RS41254 | DELCO |
| SMU0397 | ARROWHEAD |
| UD19227S | AS-PL |
