Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 183.24 including GST
NZ$ 159.34 excluding GST
or four payments of $45.81
with
Learn More
each
S9763S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

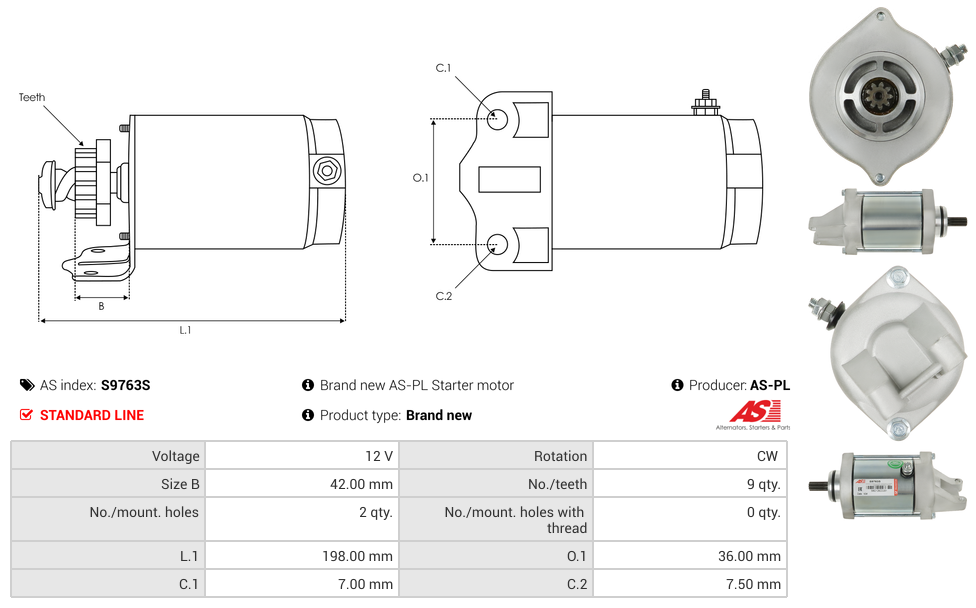

Specifications
| Length (L.1) | 198.00 mm |
| Mount Hole Center - Center (O.1) | 36.00 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 42.00 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | GSF1200SA Bandit | [1157cc] | 01.1997-12.1997 |
| SUZUKI | GSF1200S Bandit | [1157cc] | 01.1997-12.1998 |
| SUZUKI | GSF1200S Bandit | [1157cc] | 01.1999-12.2000 |
| SUZUKI | GSF1200S Bandit | [1157cc] | 01.2001-12.2005 |
| SUZUKI | GSX1100G | [1100cc] | 01.1991-12.1992 |
| SUZUKI | GSX1100G | [1100cc] | 01.1993-12.1993 |
| SUZUKI | GSXR1100 | [1127cc] | 01.1989-12.1990 |
| SUZUKI | GSXR1100 | [1127cc] | 01.1991-12.1992 |
Reference Information
| 18733 | LESTER |
| 18733N | WAI / TRANSPO |
| 31100-26D00 | SUZUKI |
| 31100-26D10 | SUZUKI |
| 31100-40C00 | SUZUKI |
| 31100-40C02 | SUZUKI |
| 410-54085 | J&N |
| 71-26-18733 | WILSON |
| RS41230 | DELCO |
| SMU0248 | ARROWHEAD |
| UD19226S | AS-PL |
Video/Publications
