Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 140.98 including GST
NZ$ 122.59 excluding GST
or four payments of $35.25
with
Learn More
each
S9703S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

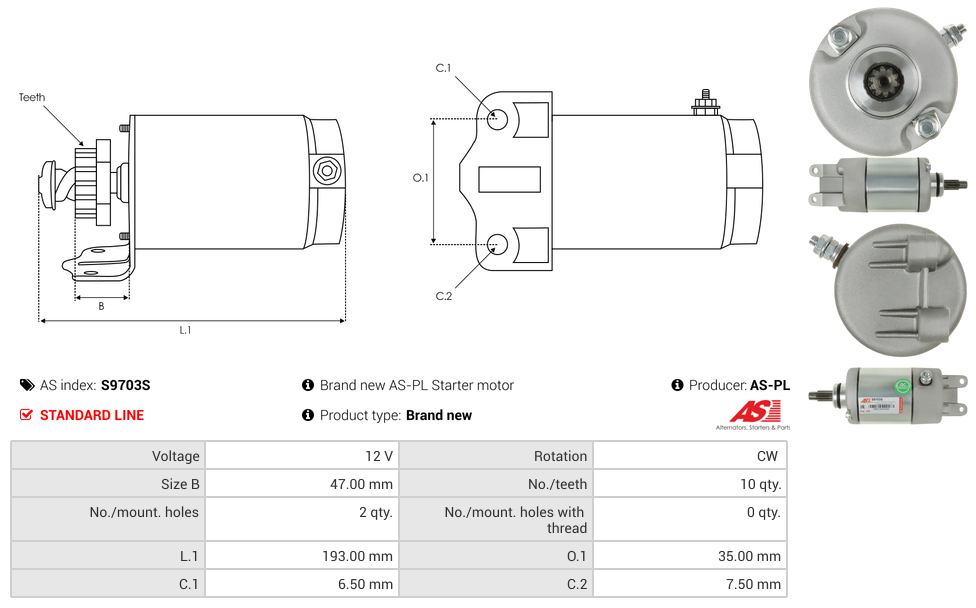

Specifications
| Length (L.1) | 193 mm |
| Mount Hole Center - Center (O.1) | 35 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 7.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | TRX300EX | [281cc] | 01.1993-12.2008 |
Reference Information
| 10440706 | ALANKO |
| 104509 | FARCOM |
| 111926 | CARGO |
| 18329 | LESTER |
| 18329N | WAI / TRANSPO |
| 242-06107 | DIXIE |
| 254941 | KUHNER |
| 31200-HM3-671 | HONDA |
| 440706 | ALANKO |
| 71-26-18329 | WILSON |
| F032111926 | CARGO |
| HN2-0005N | JUST PARTS |
| MS-815 | DIXIE |
| MS-815N | DIXIE |
| RS41182 | DELCO |
| SM134-22 | MITSUBA |
| SMU0029 | ARROWHEAD |
| STU1505 | KRAUF |
| UD19173S | AS-PL |
Video/Publications
