Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 150.91 including GST
NZ$ 131.23 excluding GST
or four payments of $37.73
with
Learn More
each
S9687S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

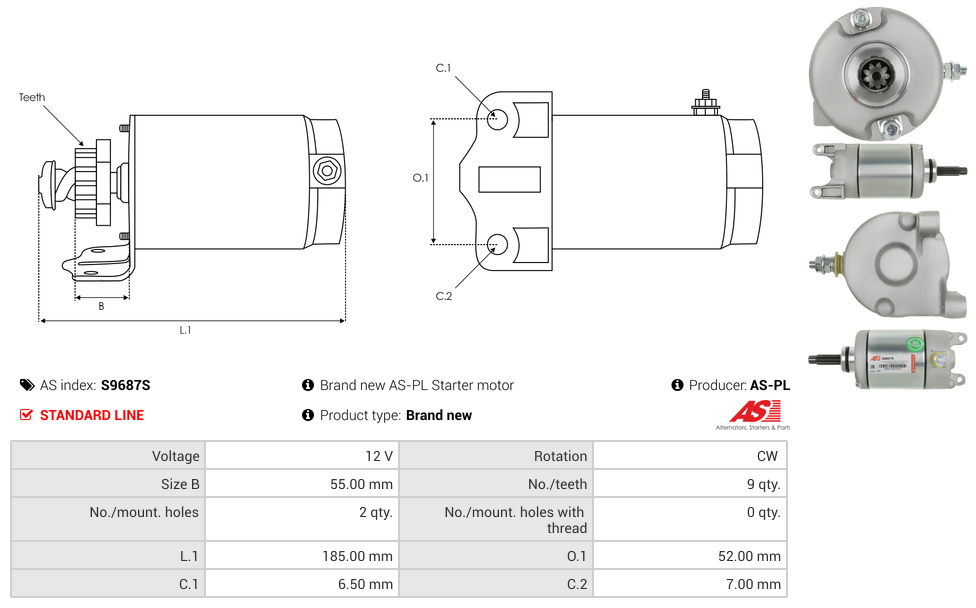

Specifications
| Length (L.1) | 185 mm |
| Mount Hole Center - Center (O.1) | 52 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 55 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | TRX400EX | [397cc] | 01.1999-12.2001 |
| HONDA | TRX400EX | [397cc] | 01.2002-12.2004 |
Reference Information
| 10439257 | ALANKO |
| 18608 | LESTER |
| 18608N | WAI / TRANSPO |
| 242-06133 | WAI / TRANSPO |
| 31200-HN1-000 | HONDA |
| 31200-MBV-731 | HONDA |
| 31200-MFB-003 | HONDA |
| 439257 | ALANKO |
| 71-26-18608 | WILSON |
| GM23016 | GAUSS |
| RS41224 | DELCO |
| SMU0214 | ARROWHEAD |
| STU2989 | KRAUF |
| UD19143S | AS-PL |
