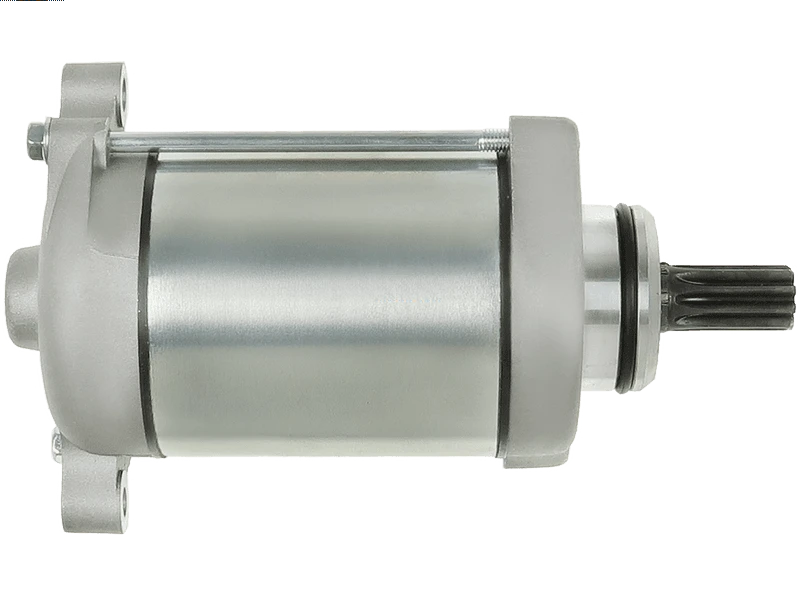

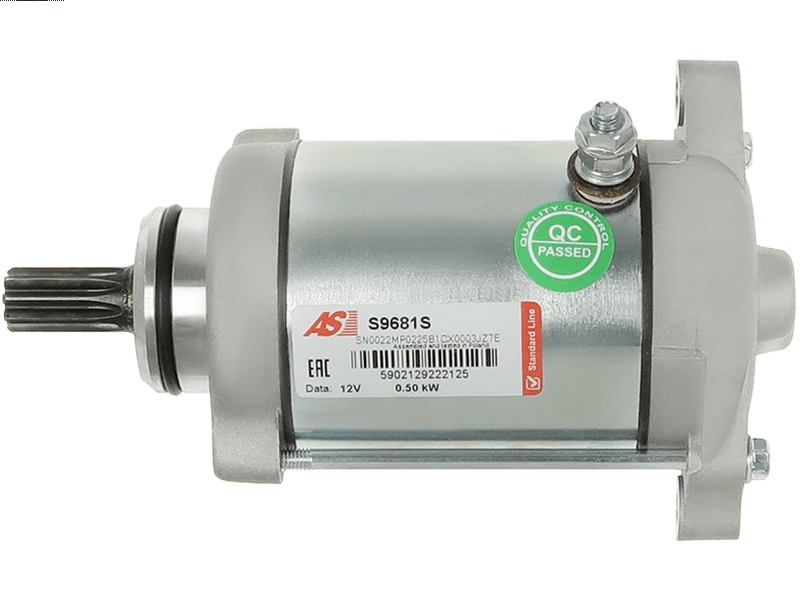

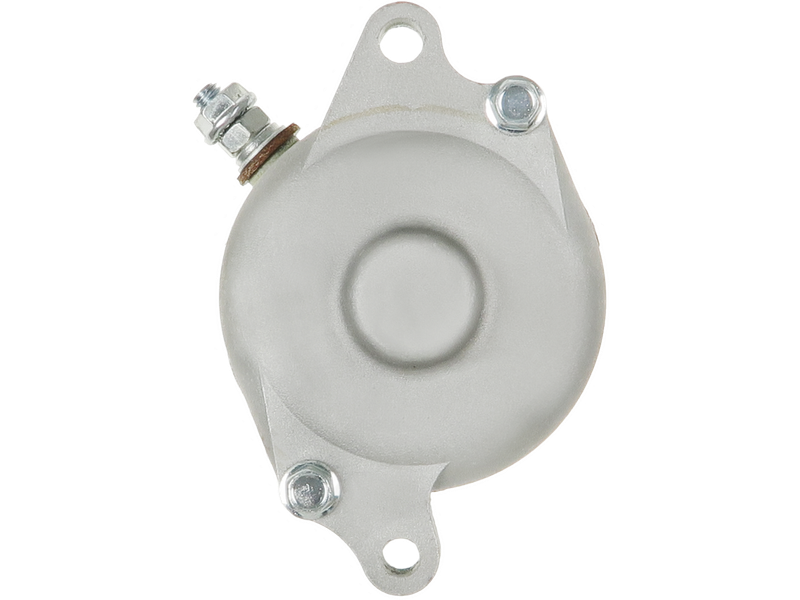

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 166.58 including GST
NZ$ 144.85 excluding GST
or four payments of $41.65
with
Learn More
each
S9681S
2
Specifications
| Kilowatt | 0.50 kW |
| Length (L.1) | 168 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Diameter (C.1) | 7.50 mm |
| Mount Hole Diameter (C.2) | 6.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |

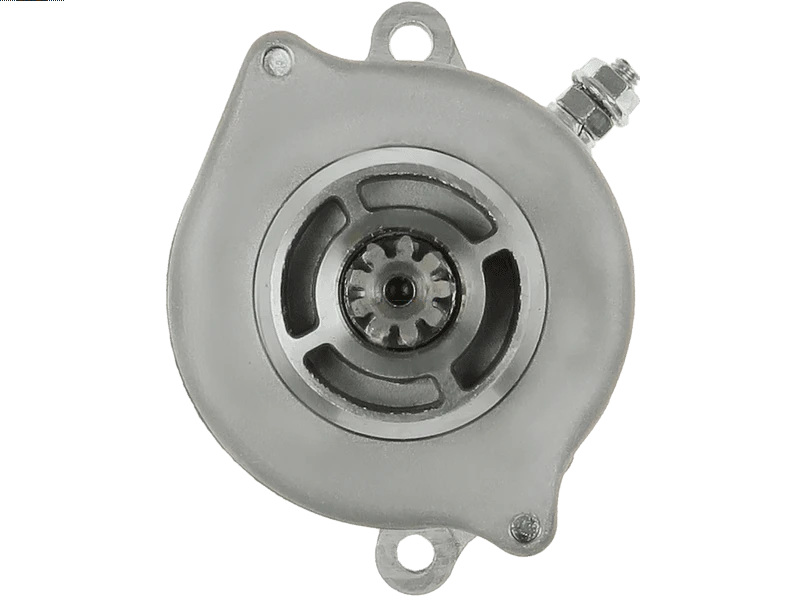

| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ARCTIC CAT | 400 2x4 | [376cc] | 01.1998-12.2002 |
| ARCTIC CAT | 400 4x4 | [376cc] | 01.1998-12.2002 |
| ARCTIC CAT | 500 4x4 | [493cc] | 01.2000-12.2009 |
| ARCTIC CAT | 500 4x4 | [493cc] | 01.2001-12.2001 |
| ARCTIC CAT | 500 4x4 | [493cc] | 01.2002-12.2002 |
| ARCTIC CAT | 500 4x4 | [493cc] | 01.2002-12.2007 |
| ARCTIC CAT | 500 4x4 LE | [493cc] | 01.2005-12.2006 |
| ARCTIC CAT | 500 4x4 MRP | [493cc] | 01.2003-12.2003 |
| ARCTIC CAT | 500 4x4 TBX | [493cc] | 01.2002-12.2006 |
| ARCTIC CAT | 500 4x4 TRV | [493cc] | 01.2004-12.2008 |
| ARCTIC CAT | 500 TRV | [493cc] | 01.2006-12.2006 |
| ARCTIC CAT | 650 H1 4x4 | [641cc] | 01.2005-12.2006 |
| ARCTIC CAT | 650 H1 4x4 | [641cc] | 01.2007-12.2007 |
| ARCTIC CAT | 650 H1 4x4 SE | [641cc] | 01.2006-12.2006 |
| ARCTIC CAT | 650 H1 FIS | [641cc] | 01.2007-12.2007 |
| ARCTIC CAT | 650 H1 TBX | [641cc] | 01.2007-12.2007 |
| ARCTIC CAT | 650 H1 TRV | [641cc] | 01.2007-12.2007 |
| ARCTIC CAT | 650 TRV | [641cc] | 01.2007-12.2007 |
| ARCTIC CAT | Prowler 650 | [641cc] | 01.2006-12.2007 |
| MASSEY FERGUSON | 400 4x4 | [376cc] | 01.2000-12.2002 |
| MASSEY FERGUSON | 650 4x4 | [641cc] | 01.2005-12.2007 |
| MASSEY FERGUSON | LT-A500F | [500cc] | 01.2000-12.2001 |
| SUZUKI | DR650 SE | [644cc] | 01.1998-12.1998 |
| SUZUKI | DR650 SE | [644cc] | 01.1999-12.1999 |
| SUZUKI | LT-A500F | [493cc] | 01.2002-12.2007 |
| SUZUKI | LT-F500F | [493cc] | 01.2003-12.2007 |
| SUZUKI | LT-F500F | [500cc] | 01.1998-12.2000 |
| SUZUKI | LT-F500F | [500cc] | 01.2001-12.2002 |
Reference Information
| 0825-001 | ARCTCO |
| 0825-012 | ARCTCO |
| 10439167 | ALANKO |
| 18796 | LESTER |
| 18796N | WAI / TRANSPO |
| 242-06155 | DIXIE |
| 255691 | KUHNER |
| 26024567 | LUCAS |
| 31100-44D10 | SUZUKI |
| 31100-44D20 | SUZUKI |
| 31100-44D21 | SUZUKI |
| 3545-012 | ARCTCO |
| 3545-015 | ARCTCO |
| 410-54062 | J&N |
| 439167 | ALANKO |
| 71-26-18796 | WILSON |
| SM-64 | MITSUBA |
| SMU0265 | ARROWHEAD |
| SMU0299 | ARROWHEAD |
| UD19127S | AS-PL |
Video/Publications
