Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 166.58 including GST
NZ$ 144.85 excluding GST
or four payments of $41.65
with
Learn More
each
S9659S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

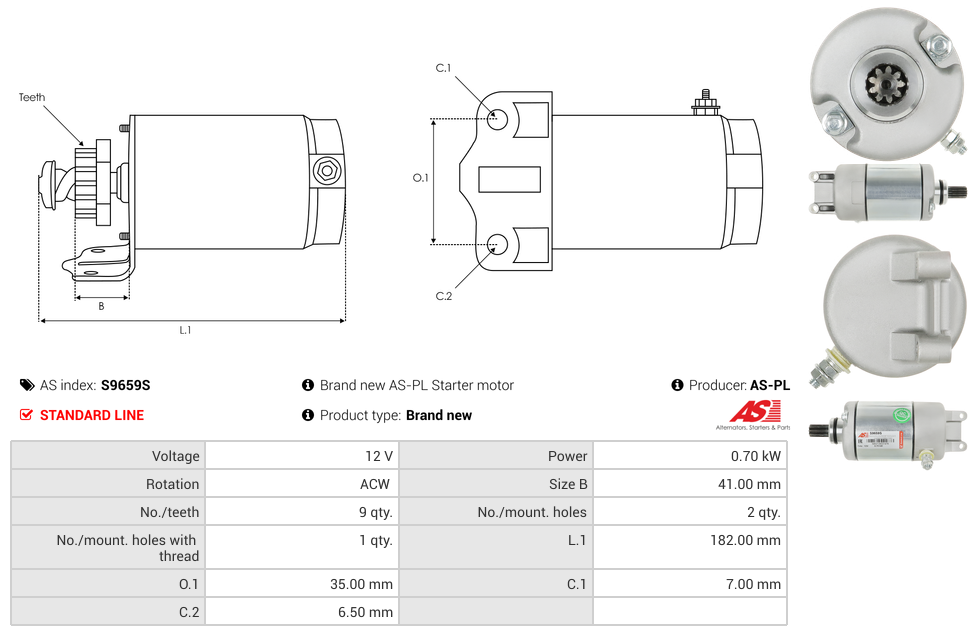

Specifications
| Kilowatt | 0.70 kW |
| Length (L.1) | 182 mm |
| Mount Hole Center - Center (O.1) | 35 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 6.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | TMAX | [500cc] |
Reference Information
| 090550800 | DUCATI |
| 108485 | FARCOM |
| 255813 | KUHNER |
| 37039 | LESTER |
| 37039N | WAI / TRANSPO |
| 4B5-81890-00-00 | YAMAHA |
| 5GJ-81890-00 | YAMAHA |
| 5GJ-81890-00-00 | YAMAHA |
| UD19163S | AS-PL |
