Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 119.60 including GST
NZ$ 104.00 excluding GST
or four payments of $29.90
with
Learn More
UOM:
each
Product Code:
S9650S
Quantity In Stock Nationally
2 in stock nationally

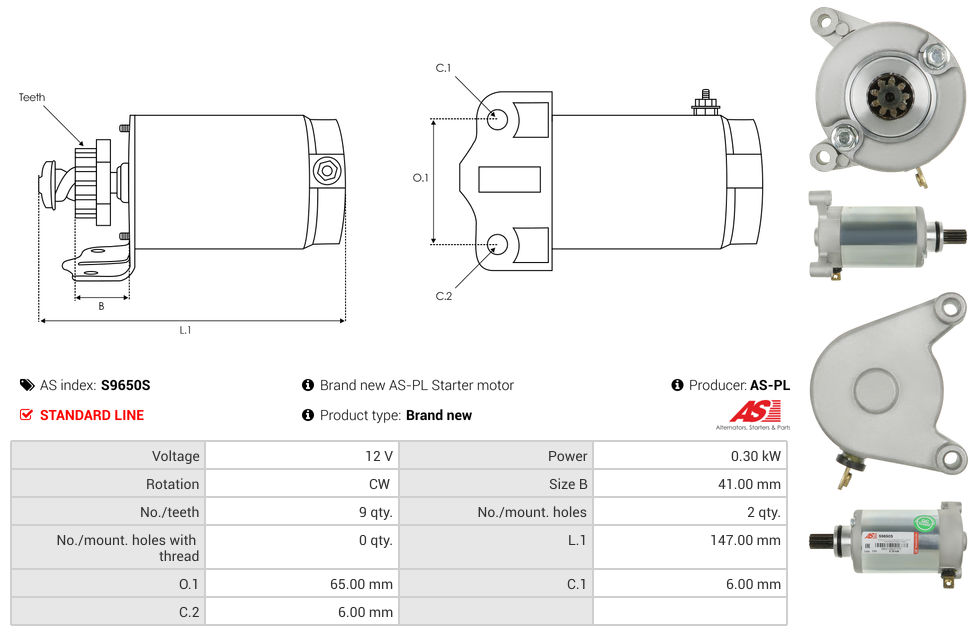

Specifications
| Kilowatt | 0.30 kW |
| Length (L.1) | 147 mm |
| Mount Hole Center - Center (O.1) | 65 mm |
| Mount Hole Diameter (C.1) | 6 mm |
| Mount Hole Diameter (C.2) | 6 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYOSUNG | XRX XRX | 01.1999- | |
| HYOSUNG | XRX XRX 125 SM | 01.2010- | |
| HYOSUNG | XRX XRX (RX-125) | 01.1999-12.2010 | |
| SUZUKI | DR DR 125 S | 01.1991- | |
| SUZUKI | DR DR 125 SE | 01.1997-12.2000 | |
| SUZUKI | DR DR 125 SE (SF44A) | 01.1991-12.1996 | |
| SUZUKI | DR DR 125 SM | 01.2008-12.2010 | |
| SUZUKI | DR DR 125 S (SF43B) | 01.1991-12.1994 | |
| SUZUKI | GN GN 125 Classic (NF41A) | 01.1999-12.1999 | |
| SUZUKI | GN GN 125 Classic (NF41A) | 01.1999-12.1999 | |
| SUZUKI | GN GN 125 (NF41A) | 01.1989-12.1997 | |
| SUZUKI | GN GN 125 (NF41A) | 01.1989-12.1999 | |
| SUZUKI | GN GN 125 (NF41A) | 01.1989-12.1999 | |
| SUZUKI | RV200 M/C | 01.2017-12.2019 | |
| SUZUKI | RV200 M/C | 01.2017-12.2019 |
Reference Information
| 10040580AV | ITAB AUTOMOTIVE |
| 18811 | LESTER |
| 18811N | WAI |
| 20432085BN | REAL |
| 31100-05300 | SUZUKI |
| 31100-05320 | SUZUKI |
| 31100-05500 | SUZUKI |
| 31100-05501 | SUZUKI |
| 31100-05510 | SUZUKI |
| 6040580.0 | SANDO |
| CST40580AS | CASCO |
| UD19032S | AS-PL |
Video/Publications
