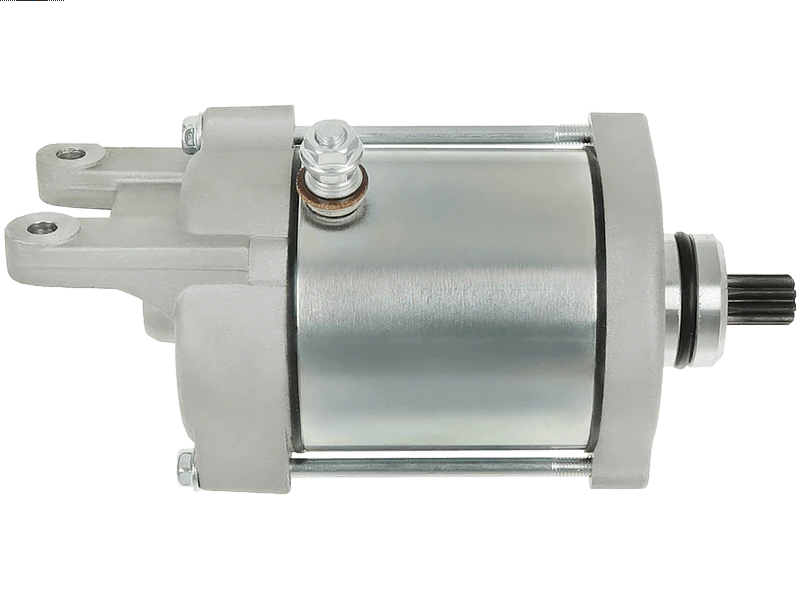

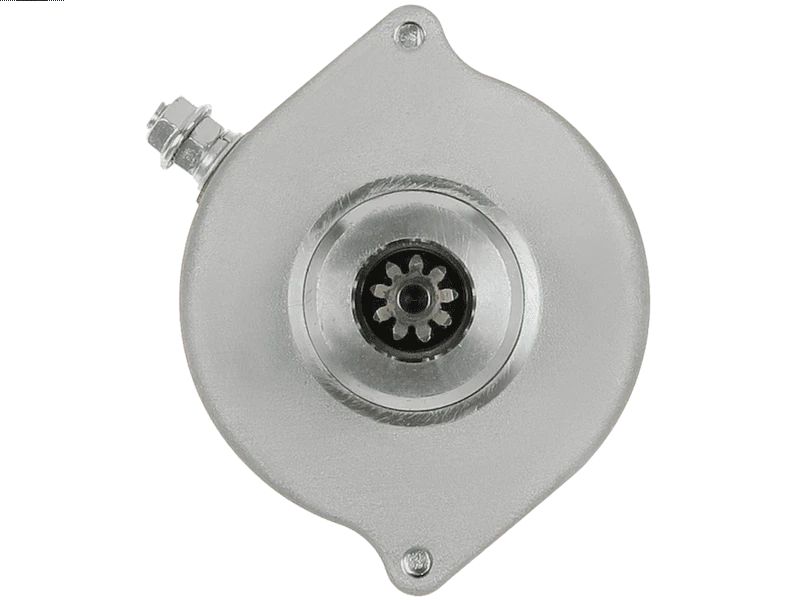

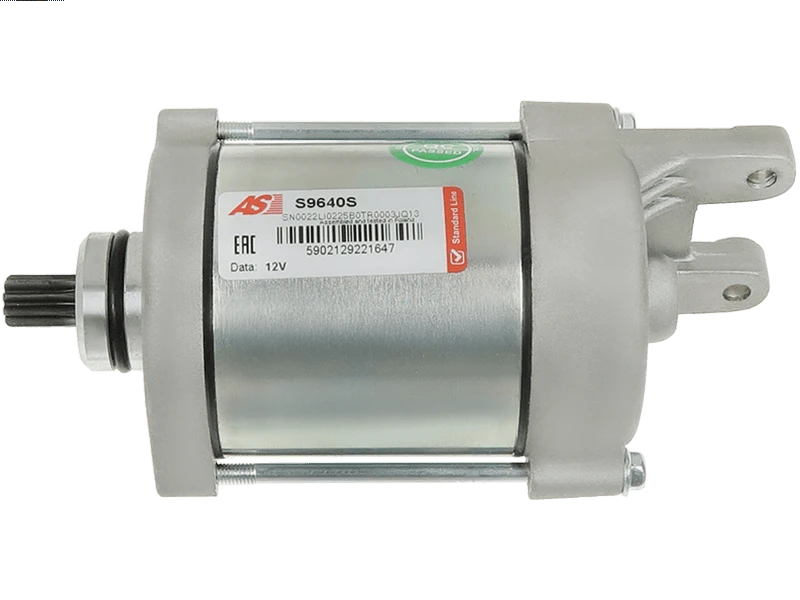

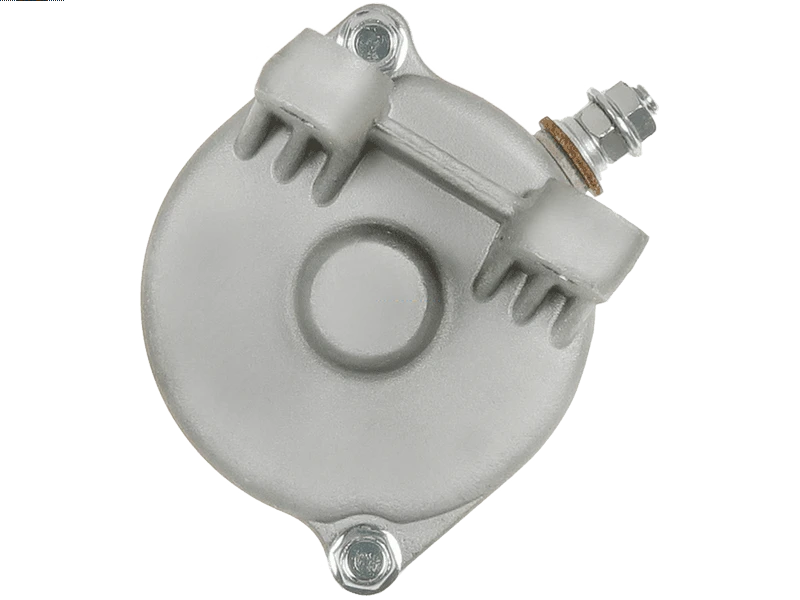

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 128.64 including GST
NZ$ 111.86 excluding GST
or four payments of $32.16
with
Learn More
each
S9640S
No stock in NZ currently
No stock in NZ currently

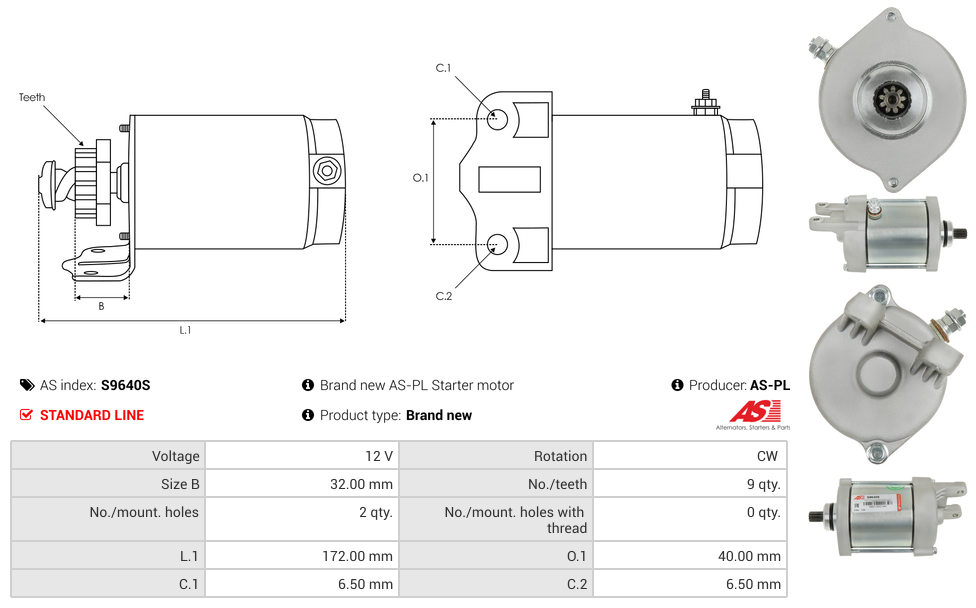

Specifications
| Length (L.1) | 172 mm |
| Mount Hole Center - Center (O.1) | 40 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 6.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 32 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KYMCO | MXU250 | [249cc] |
Reference Information
| 10439120 | ALANKO |
| 106-10413 | ROBERT'S |
| 108515 | FARCOM |
| 18911 | LESTER |
| 18911N | WAI / TRANSPO |
| 19599N | WAI / TRANSPO |
| 255740 | KUHNER |
| 31210-LBA7-900 | KYMCO |
| 31210-LBA-790B | KYMCO |
| 3304274 | ARCTCO |
| 400.098.092.190 | PSH |
| 439120 | ALANKO |
| RAS41255 | DELCO |
| S132.577 | PSH |
| S31200-RB1-000 | BOMBARDIER |
| STR75475 | WOODAUTO |
| UD19084S | AS-PL |
