Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 115.20 including GST
NZ$ 100.17 excluding GST
or four payments of $28.80
with
Learn More
each
S9633S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

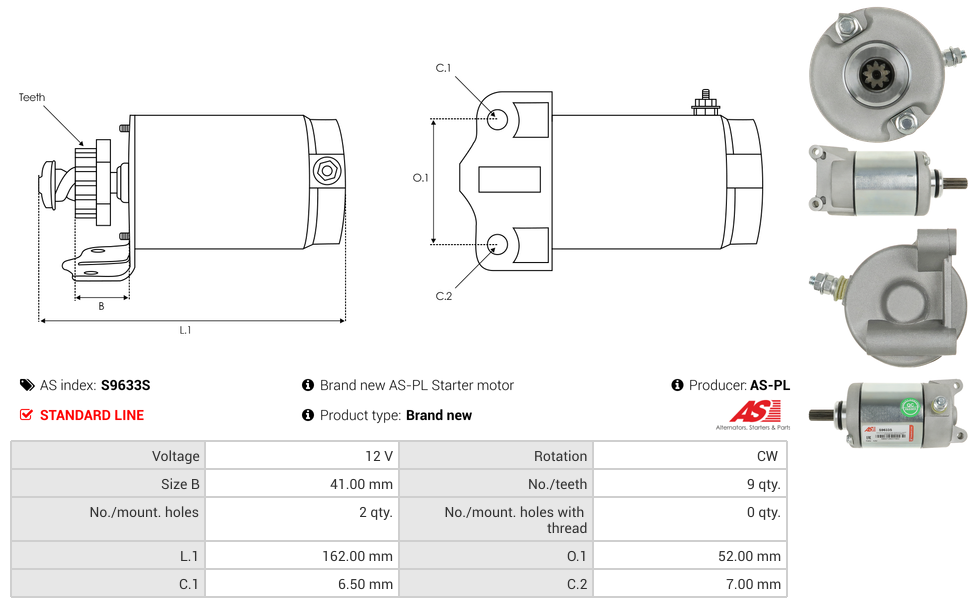

Specifications
| Length (L.1) | 162 mm |
| Mount Hole Center - Center (O.1) | 52 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | CRF 230 F | [223cc] | 01.2006- |
| HONDA | XLR 125 | [124cc] | 01.1996-12.2003 |
| HONDA | XLR 125 R | [124cc] | 01.1998-12.1999 |
Reference Information
| 18850 | LESTER |
| 18850N | WAI / TRANSPO |
| 31200-KBB-901 | HONDA |
| 31200-KW1-901 | HONDA |
| 31200-KW8-901 | HONDA |
| 464240 | TUCKER ROCKY |
| GM23003 | GAUSS |
| UD19052S | AS-PL |
