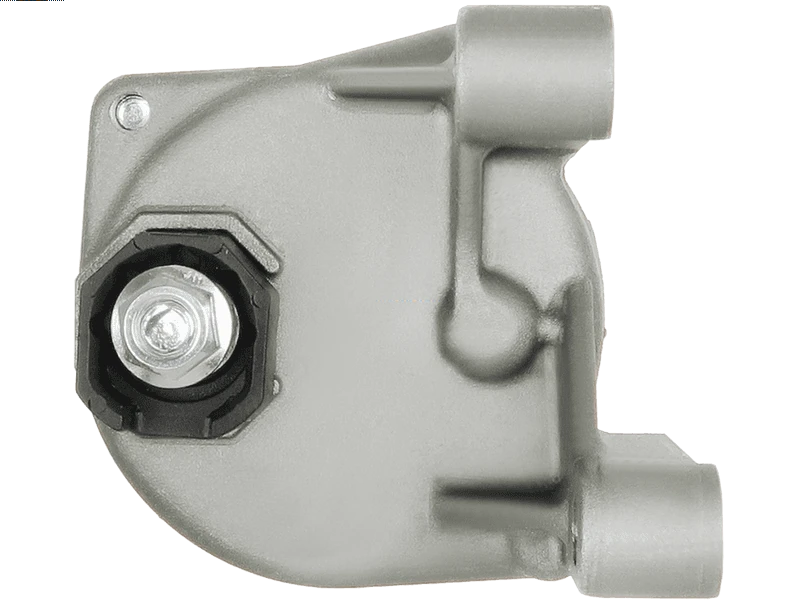

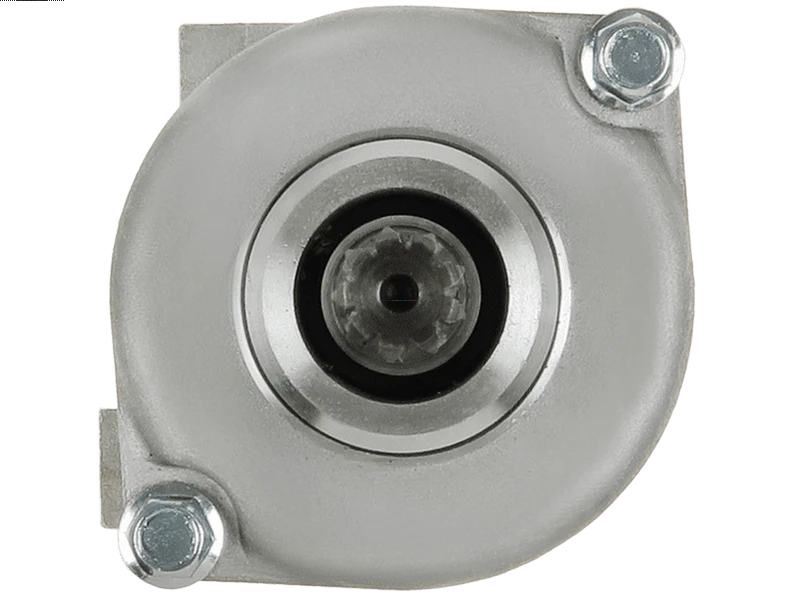

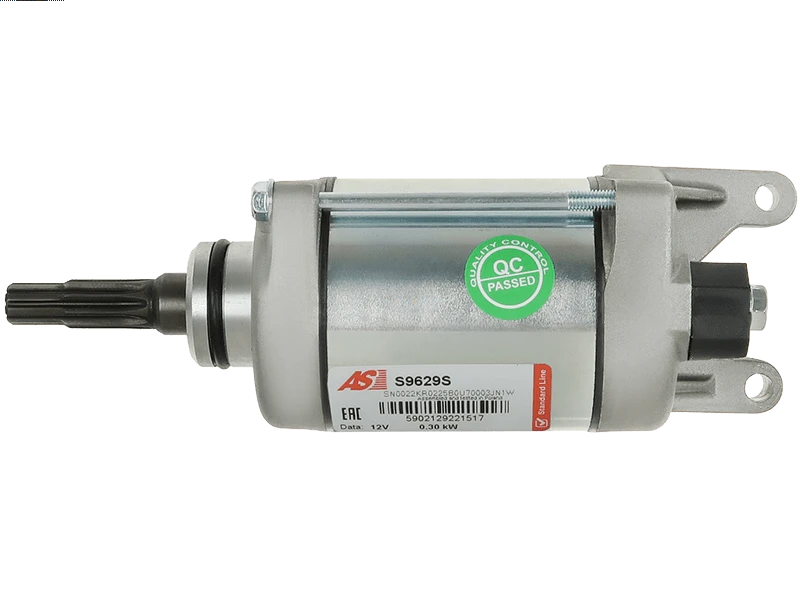

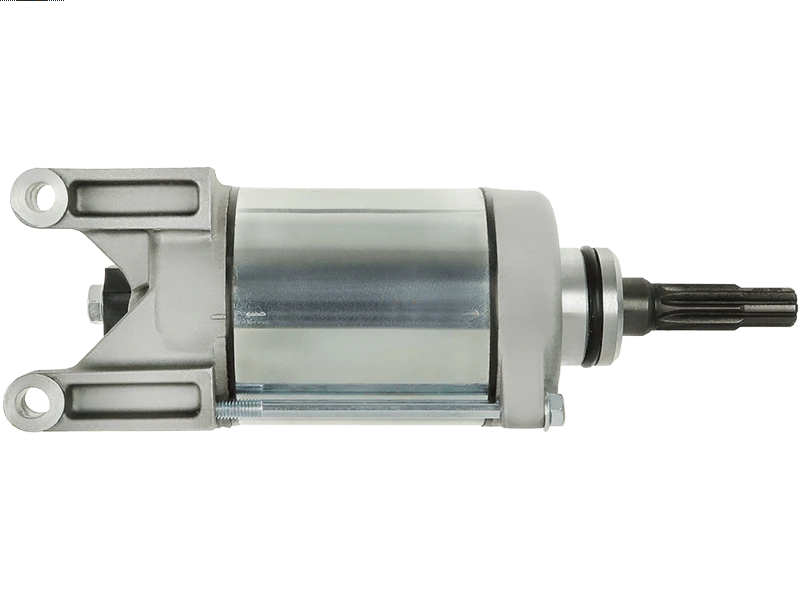

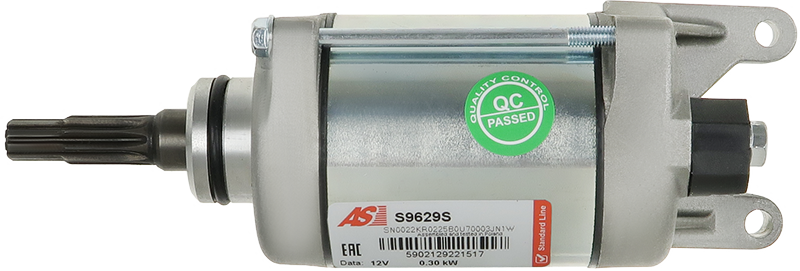

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 160.97 including GST
NZ$ 139.97 excluding GST
or four payments of $40.24
with
Learn More
UOM:
each
Product Code:
S9629S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

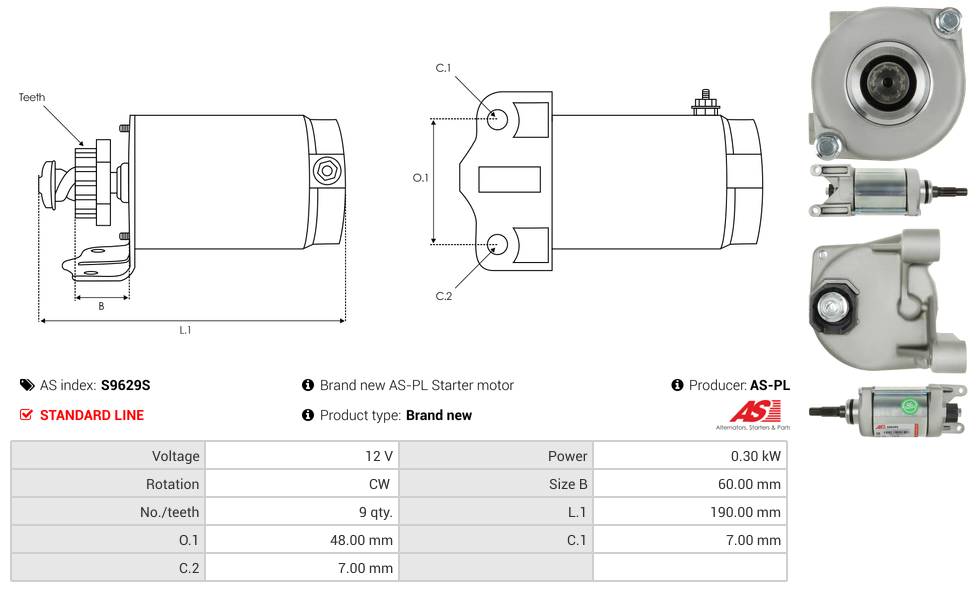

Specifications
| Kilowatt | 0.30 kW |
| Length (L.1) | 190 mm |
| Mount Hole Center - Center (O.1) | 48 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 60 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | CB300R | ||
| HONDA | CB ( - 500cc) CB 300 R | 01.2009-12.2013 | |
| HONDA | CB ( - 500cc) CB 300 R Flex | 01.2013-12.2015 | |
| HONDA | CB ( - 500cc) CB 300 R Limited Edition | 01.2012-12.2014 | |
| HONDA | CBR250R | ||
| HONDA | CBR ( - 600cc) CBR 250 R ABS | 01.2012-12.2015 | |
| HONDA | CBR ( - 600cc) CBR 250 R (MC41) | 01.2011-12.2013 | |
| HONDA | XRE300 | ||
| HONDA | XRE XRE 300 Flex ABS | 01.2013- | |
| HONDA | XRE XRE 300 Rally Flex ABS | 03.2015- |
Reference Information
| 16071 | LESTER |
| 16071N | WAI |
| 31200-KVK-901 | HONDA |
| GM23008 | GAUSS |
| STRJ236 | 3EFFE |
| UD19057S | AS-PL |
