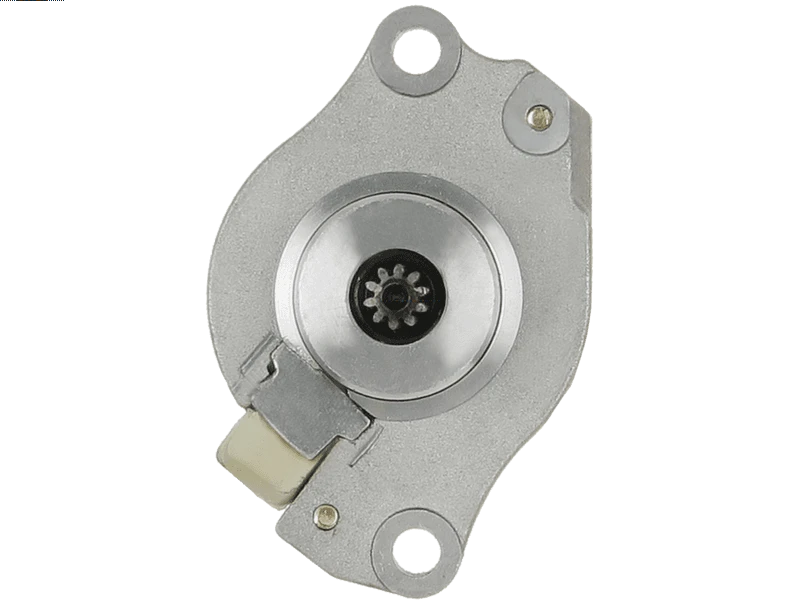

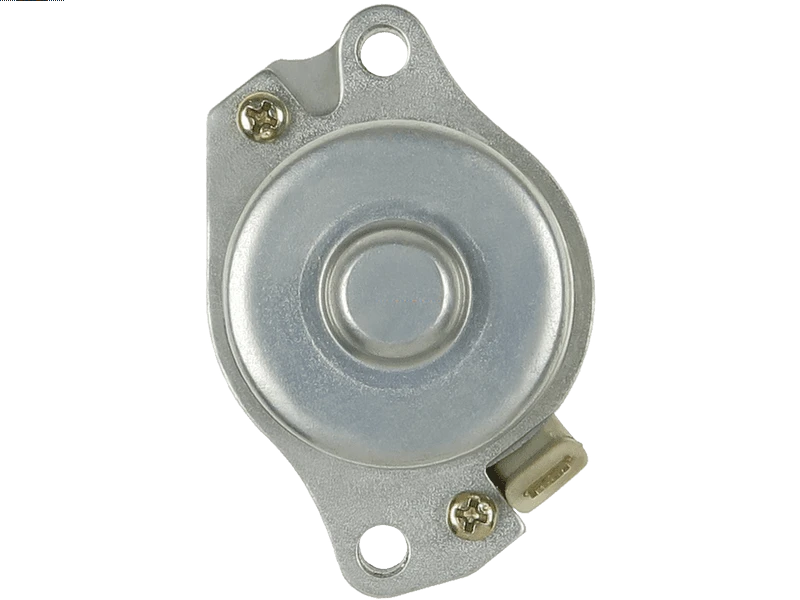

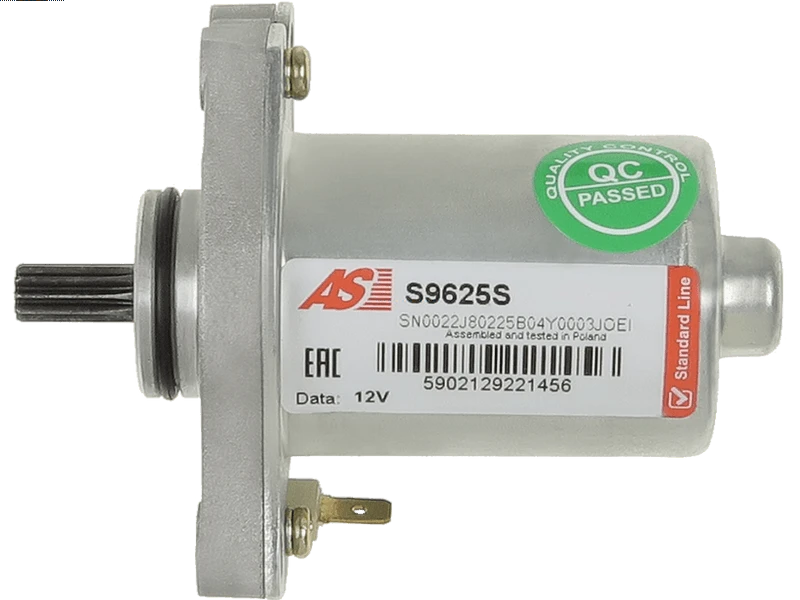

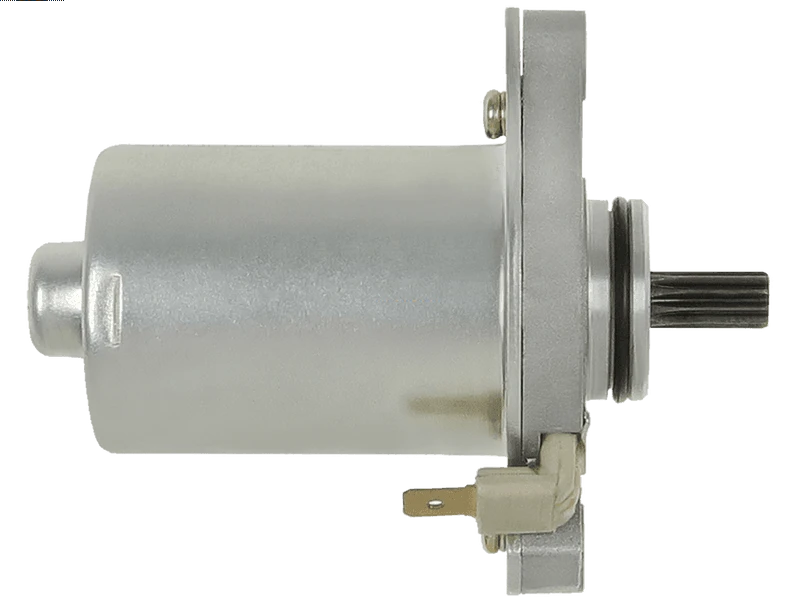

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 63.10 including GST
NZ$ 54.87 excluding GST
or four payments of $15.78
with
Learn More
UOM:
each
Product Code:
S9625S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.40 kW |
| Length (L.1) | 95 mm |
| Mount Hole Center - Center (O.1) | 63.50 mm |
| Mount Hole Diameter (C.1) | 5.50 mm |
| Mount Hole Diameter (C.2) | 5.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 24 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| APRILIA | AMICO Amico 50 CatCon. (GC) | 01.1990-12.1994 | |
| APRILIA | AMICO Amico 50 GL CatCon. (HV) | 01.1993-12.1999 | |
| APRILIA | AMICO Amico 50 LX CatCon. (GC) | 01.1995-12.1996 | |
| APRILIA | AMICO Amico 50 Sport CatCon. (GC) | 01.1992-12.1993 | |
| APRILIA | AREA Area 51 CatCon. (MY) | 01.1998-12.2003 | |
| APRILIA | AREA Area 51 Replica (MY) | 01.2000-12.2003 | |
| APRILIA | AREA Area 51 SBK CatCon. (MY) | 01.2000-12.2002 | |
| APRILIA | GULLIVER Gulliver AC CatCon. (LH) | 01.1995-12.1998 | |
| APRILIA | GULLIVER Gulliver LC CatCon. (LH) | 01.1997-12.1999 | |
| APRILIA | MC MC Gulliver CatCon. (LH) | 01.1996-12.1999 | |
| APRILIA | RALLY Rally 50 AC CatCon. (MD) | 01.1995-12.2003 | |
| APRILIA | RALLY Rally 50 LC CatCon. (MD) | 01.1997-12.1998 | |
| APRILIA | RALLY Rally 50 (MD) | 01.1990-12.1996 | |
| APRILIA | RALLY Rally 50 (MD) | 01.1990-12.1996 | |
| APRILIA | SONIC Sonic AC CatCon. (PB) | 01.1998-12.2001 | |
| APRILIA | SONIC Sonic LC CatCon. (PB) | 01.1998-12.1999 | |
| APRILIA | SONIC Sonic LC CatCon. (PB) | 01.1998-12.1999 | |
| APRILIA | SR SR 50 CatCon. (LB) | 01.1993-12.1997 | |
| APRILIA | SR SR 50 LC CatCon. (LB) | 01.1996-12.1997 | |
| APRILIA | SR SR 50 LC Ditech Racing (RL) | 01.2001-12.2003 | |
| APRILIA | SR SR 50 LC Ditech Racing (RL) | 01.2001-12.2003 | |
| APRILIA | SR SR 50 LC Ditech (RL) | 01.2001-12.2004 | |
| APRILIA | SR SR 50 LC Racing CatCon. (RL) | 01.1999-12.2001 | |
| APRILIA | SR SR 50 LC Sport CatCon. | 01.2000-12.2002 | |
| APRILIA | SR SR 50 LC Sport CatCon. (RL) | 01.2000-12.2002 | |
| APRILIA | SR SR 50 LC Sport Ditech (RL) | 01.2001-12.2003 | |
| APRILIA | SR SR 50 LC Sport Ditech (RL) | 01.2001-12.2003 | |
| APRILIA | SR SR 50 Netscaper CatCon. (MZ) | 01.1997-12.1998 | |
| APRILIA | SR SR 50 Stelth CatCon. (MZ) | 01.1997-12.1999 | |
| APRILIA | SR SR 50 WWW CatCon. (LY) | 01.1997-12.2002 | |
| YAMAHA | AEROX Aerox 50 CatCon. (AEROX-R, YQ) | 01.1997-12.1999 | |
| YAMAHA | AEROX Aerox 50 Ultimate CatCon. (AEROX-R, YQ) | 01.1998-12.1999 | |
| YAMAHA | AXIS Axis 50 CatCon. (3UG) | 01.1995-12.1997 | |
| YAMAHA | AXIS Axis 50 CatCon. (5AK) | 01.1995-12.1998 | |
| YAMAHA | BREEZE Breeze 50 CatCon. | 01.1994-12.1998 | |
| YAMAHA | BWs BW 50 | 01.1993-12.1994 | |
| YAMAHA | BWs BW 50 (4BX/4RD) | 01.1991-12.1996 | |
| YAMAHA | BWs BW 50 R (4BX/4RD) | 01.1991-12.1996 | |
| YAMAHA | DT DT 50 M (2M4) | 01.1978-12.1983 | |
| YAMAHA | DT DT 50 MX (1NN) | 01.1986-12.1989 | |
| YAMAHA | DT DT 50 MX-S (102282, 2UM) | 01.1986-12.1989 | |
| YAMAHA | DT DT 50 R (3MN) | 01.1989-12.1998 | |
| YAMAHA | JOG Jog R | 01.2002-12.2005 | |
| YAMAHA | JOG Jog RR | 01.2002-12.2005 | |
| YAMAHA | JOG Jog RR (SA22) | 01.2006- | |
| YAMAHA | JOG Jog R (SA22) | 01.2006- | |
| YAMAHA | NEOS Neos 50 2T | 01.2004-12.2006 | |
| YAMAHA | NEOS Neos 50 2T (5AD) | 01.2007- | |
| YAMAHA | NEOS Neos 50 2T CatCon. | 01.1997-12.2007 | |
| YAMAHA | NEOS Neos 50 2T (SA15) | 01.2002-12.2003 | |
| YAMAHA | NEOS Neos 50 4T (5AD) | 11.2008- | |
| YAMAHA | WHY Why 50 CatCon. | 01.1999-12.2012 | |
| YAMAHA | YJ50 Vino Classic | 05.2001- | |
| YAMAHA | ZEST Zest 50 (4FW) | 01.1993-12.1997 | |
| YAMAHA | ZEST Zest 50 CatCon. | 01.1994-12.1999 | |
| YAMAHA | ZEST Zest 80 (4MU) | 01.1994-12.1998 |
Reference Information
| 10439190 | ALANKO |
| 108753 | FARCOM |
| 18749N | WAI |
| 3AA-81800-00-00 | YAMAHA |
| 3AA-81800-02-00 | YAMAHA |
| 3FC-81800-00-00 | YAMAHA |
| 3FC-81800-01-00 | YAMAHA |
| 3FC-81800-10-00 | YAMAHA |
| 3GF-H1800-00-00 | YAMAHA |
| 3GF-H1800-10-00 | YAMAHA |
| 3KJ-81800-00-00 | YAMAHA |
| 3KJ-81800-01-00 | YAMAHA |
| 3YJ-81800-00-00 | YAMAHA |
| 3YJ-81800-01-00 | YAMAHA |
| 4CU-H1800-00-00 | YAMAHA |
| 4CU-H1800-01-00 | YAMAHA |
| 4CU-H1800-10-00 | YAMAHA |
| 4SB-H1800-00-00 | YAMAHA |
| 4SB-H1800-10-00 | YAMAHA |
| 4VV-H1800-00-00 | YAMAHA |
| 4VV-H1800-10-00 | YAMAHA |
| 5BM-818-00-00 | YAMAHA |
| 5BM-81800-00 | YAMAHA |
| 5BM-81800-01-00 | YAMAHA |
| 5SU-H1800-00-00 | YAMAHA |
| 5SU-H1800-10-00 | YAMAHA |
| 5WW-H1800-00-00 | YAMAHA |
| 5WW-H1800-10-00 | YAMAHA |
| AP8206459 | APRILIA |
| AP8206805 | APRILIA |
| AP8224103 | APRILIA |
| UD19009S | AS-PL |
