Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 60.49 including GST
NZ$ 52.60 excluding GST
or four payments of $15.12
with
Learn More
each
S9620S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

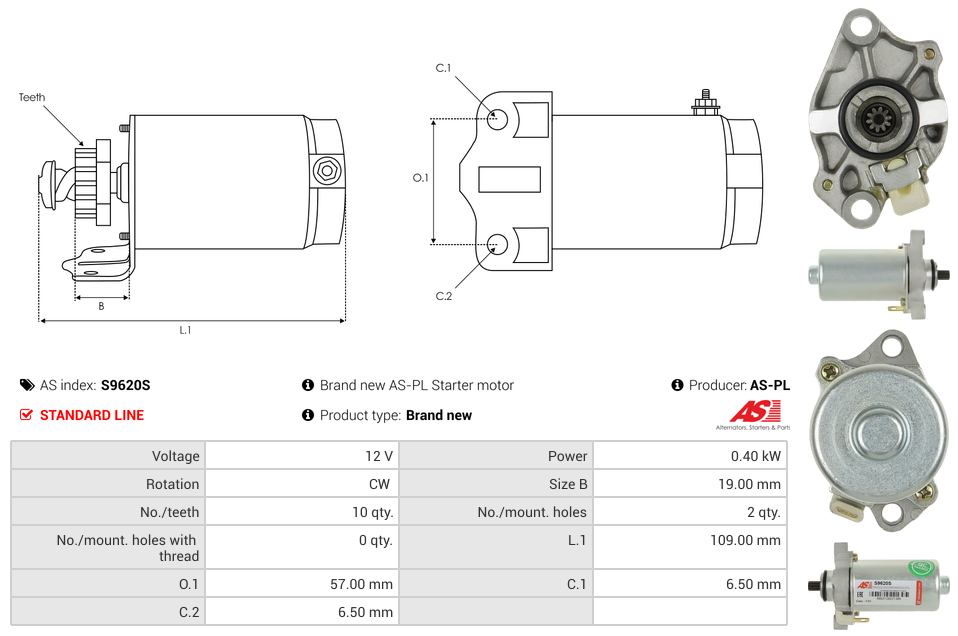

Specifications
| Kilowatt | 0.40 kW |
| Length (L.1) | 109 mm |
| Mount Hole Center - Center (O.1) | 57 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 6.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 19 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | CH80 Elite | [80cc] | 01.1993-12.2007 |
Reference Information
| 10033113AV | ITAB AUTOMOTIVE |
| 18853 | LESTER |
| 18853N | WAI / TRANSPO |
| 20467311BN | REAL |
| 255735 | KUHNER |
| 31200-GE1-712 | HONDA |
| 410-54103 | J&N |
| 44800500 | MALAGUTI |
| 6033113.0 | SANDO |
| 71-26-18853 | WILSON |
| 96921R | APRILIA |
| AP8570105 | PIAGGIO |
| CST33113AS | CASCO |
| MAV351130A | SIOM |
| RS41253 | DELCO |
| SMT113A | AUTOTEAM |
| SMU0374 | ARROWHEAD |
| UD19003S | AS-PL |
