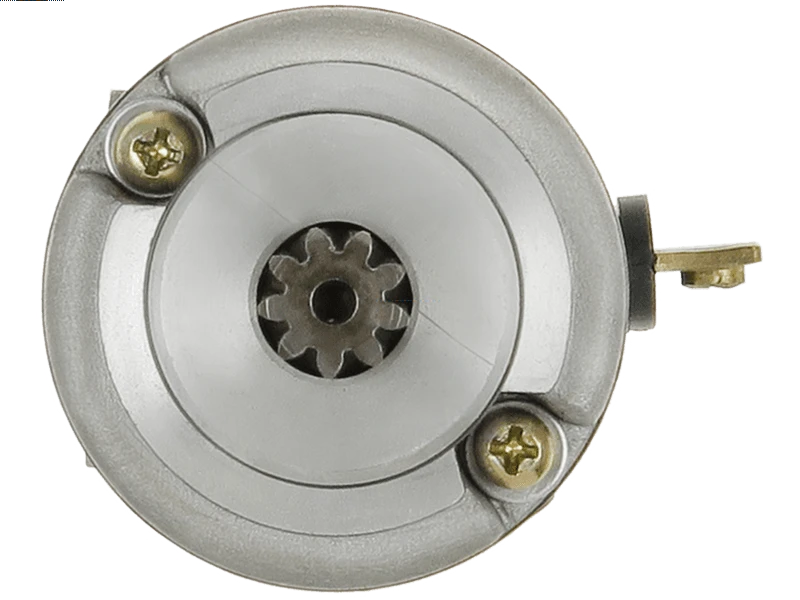

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 147.64 including GST
NZ$ 128.38 excluding GST
or four payments of $36.91
with
Learn More
each
S9617S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 136 mm |
| Mount Hole Center - Center (O.1) | 28 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 37 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GASGAS | EC 250 Cami F | [247cc] | 11.2013- |
| YAMAHA | WR 250 F | [249cc] | 01.2004-01.2005 |
| YAMAHA | WR 250 F | [249cc] | 01.2005- |
| YAMAHA | WR 250 F | [250cc] | 01.2001-12.2002 |
| YAMAHA | WR 250 F | [250cc] | 01.2003-12.2004 |
Reference Information
| 10438051 | ALANKO |
| 18839 | LESTER |
| 18839N | WAI / TRANSPO |
| 256465 | KUHNER |
| 5UM-81890-00-00 | YAMAHA |
| 5UM-81890-10-00 | YAMAHA |
| UD19008S | AS-PL |
Video/Publications
