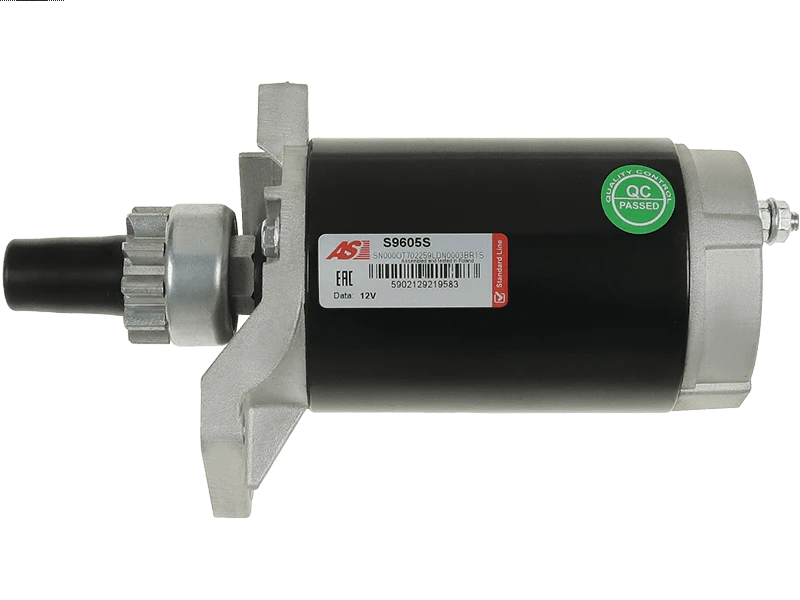

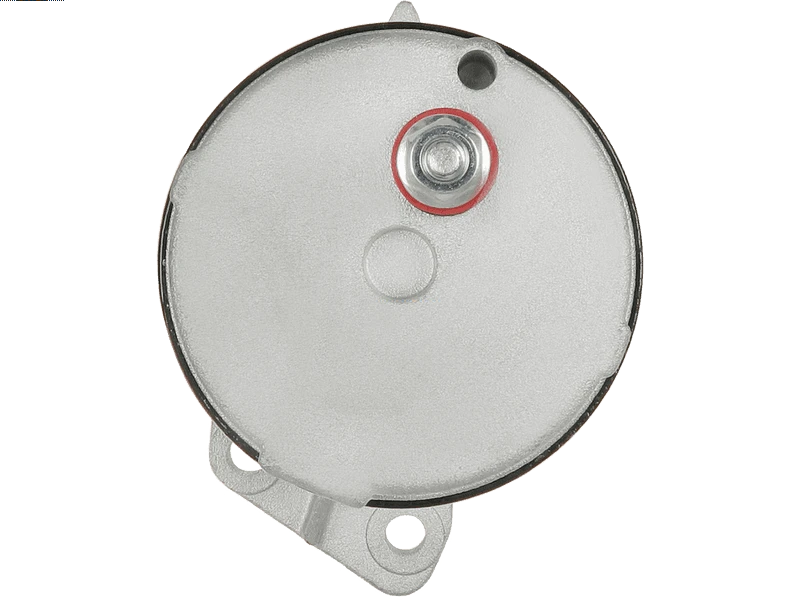

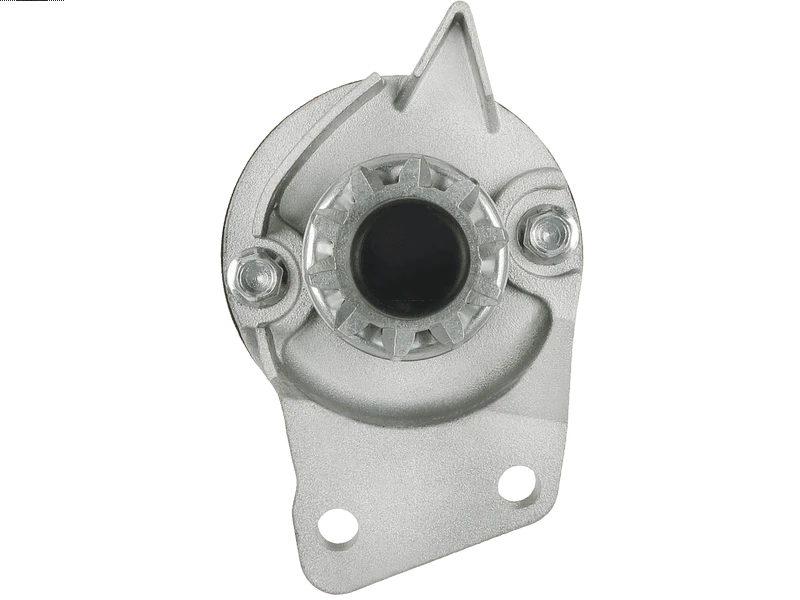

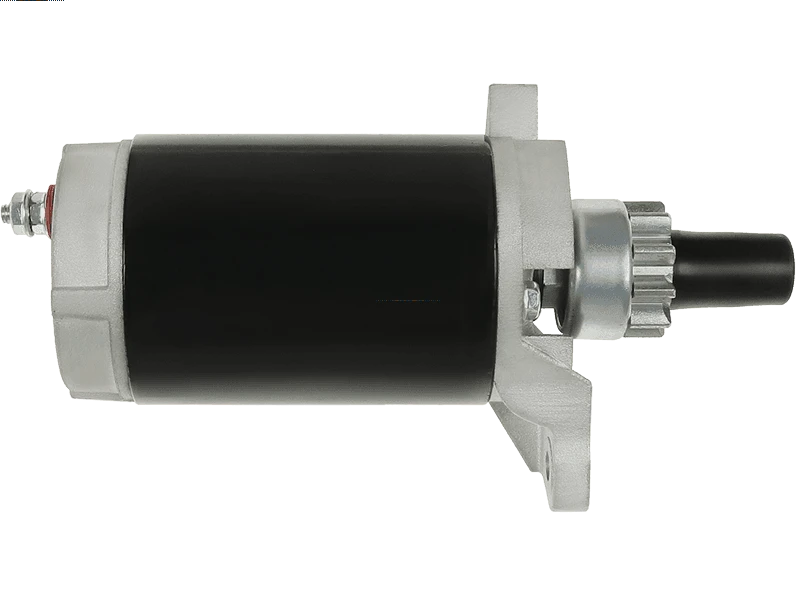

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 195.52 including GST
NZ$ 170.02 excluding GST
or four payments of $48.88
with
Learn More
each
S9605S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 227 mm |
| Mount Hole Center - Center (O.1) | 37 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 8.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 24 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUB CADET | 1912 | [B48G-19.9H.P.] | 01.1985-12.1986 |
| CUB CADET | 1912 | [B48G(19.9H.P.)] | 01.1985-12.1986 |
| CUB CADET | 1914 | [B48G-19.9H.P.] | 01.1985-12.1986 |
| CUB CADET | 1914 | [B48G(19.9H.P.)] | 01.1985-12.1986 |
| CUB CADET | 982 | [B48G-19.9H.P.] | 01.1979-12.1984 |
| CUB CADET | 982 | [B48G(19.9H.P.)] | 01.1979-12.1984 |
| CUB CADET | 984 | [B48G-19.9H.P.] | 01.1982-12.1984 |
| CUB CADET | 984 | [B48G(19.9H.P.)] | 01.1982-12.1984 |
| CUB CADET | 986 | [B48G-19.9H.P.] | 01.1982-12.1984 |
| CUB CADET | 986 | [B48G(19.9H.P.)] | 01.1982-12.1984 |
| JOHN DEERE | 316 | [B43E] | 01.1983-12.1992 |
| JOHN DEERE | 316 | [P218G] | 01.1984-12.1992 |
| JOHN DEERE | 318 | [B43E] | 01.1983-12.1992 |
| JOHN DEERE | 318 | [P218G] | 01.1983-12.1992 |
| JOHN DEERE | 420 | [B48G] | 01.1983-12.1991 |
| JOHN DEERE | 420 | [P220G] | 01.1983-12.1991 |
| JOHN DEERE | F910 | [B48G-20H.P.] | 01.1984-12.1991 |
| JOHN DEERE | F910 | [B48G,20H.P.] | 01.1984-12.1991 |
| JOHN DEERE | F910 | [P220G-20H.P.] | 01.1984-12.1991 |
| JOHN DEERE | F910 | [P220G,20H.P.] | 01.1984-12.1991 |
| JOHN DEERE | F930 | [T260-24H.P.] | 01.1984-12.1990 |
| JOHN DEERE | F930 | [T260,24H.P.] | 01.1984-12.1990 |
| NEW HOLLAND | L250 | [B43G] | 01.1984-12.1999 |
| ONAN | B43E | [B43E] | 01.1979-12.1989 |
| ONAN | B43G | [B43G] | 01.1979-12.1989 |
| ONAN | B48G | [B48G] | 01.1979-12.1989 |
| TORO | Groundsmaster 220 | [B48G-GA020] | 01.1992-12.1997 |
| TORO | Groundsmaster 62 | 01.1982-12.1986 |
Reference Information
| 10441028 | ALANKO |
| 108577 | FARCOM |
| 113015 | CARGO |
| 1911529 | ONAN |
| 1911567 | ONAN |
| 20603112 | DIXIE |
| 2-2642-UT | WAI / TRANSPO |
| 254972 | KUHNER |
| 4367240M030SM | UNITED TECHNOLOGIES |
| 4379040M030SM | UNITED TECHNOLOGIES |
| 507127 | NEW HOLLAND |
| 5701 | LESTER |
| 5701N | WAI / TRANSPO |
| 71-09-5701 | WILSON |
| 91-09-1026 | WILSON |
| 950.506.102.190 | PSH |
| F032113015 | CARGO |
| HE1911567 | JOHN DEERE |
| S150.932 | PSH |
| S43672 | MITSUBA |
| SAB0009 | ARROWHEAD |
| SM43672 | MITSUBA |
| SM43762 | UNITED TECHNOLOGIES |
| SM43790 | MITSUBA |
| STR88225 | WOODAUTO |
| STZ3790 | KRAUF |
| UD13709S | AS-PL |
| WOOSTR88225 | WOODAUTO |
