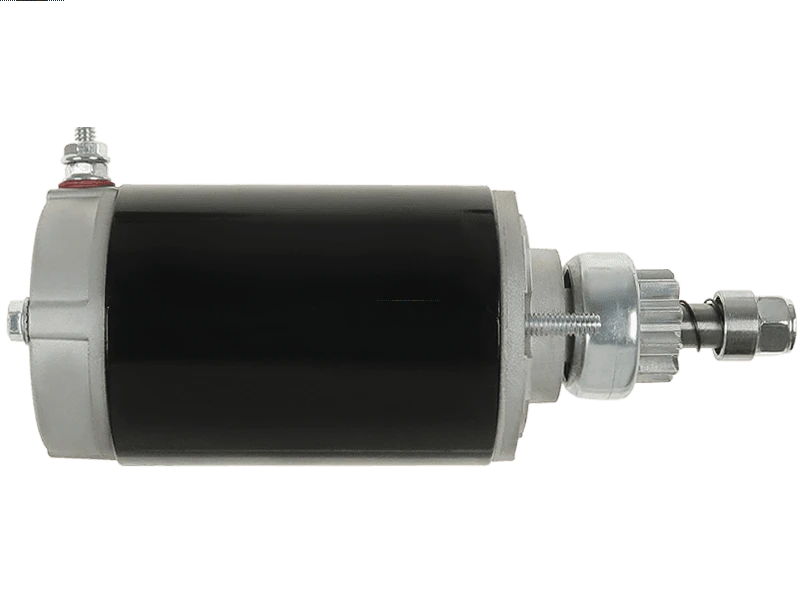

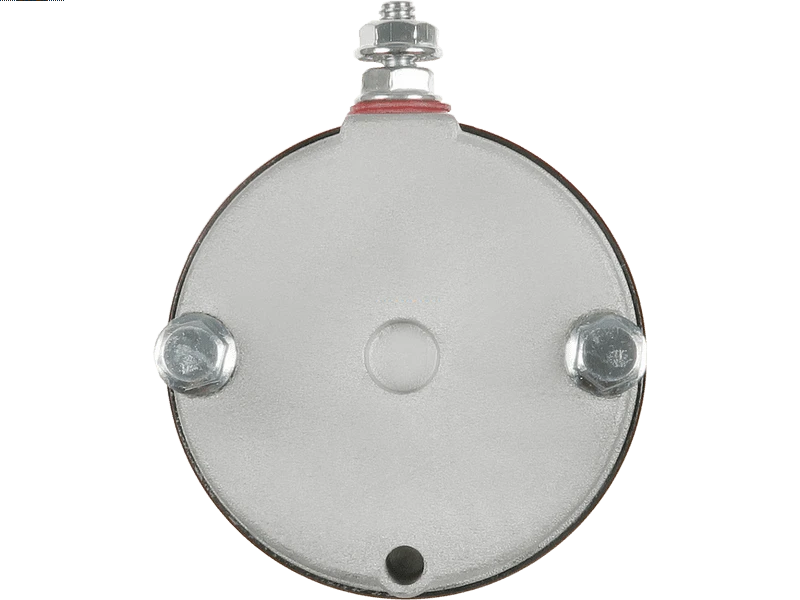

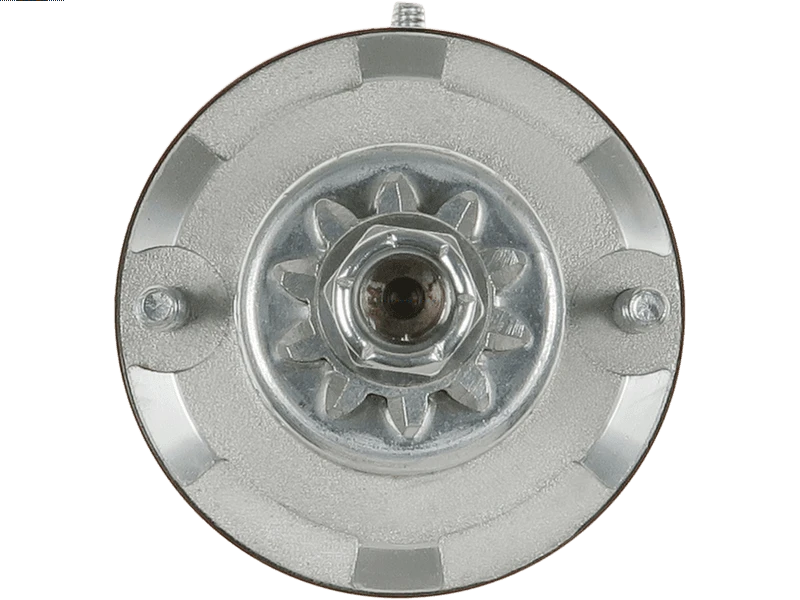

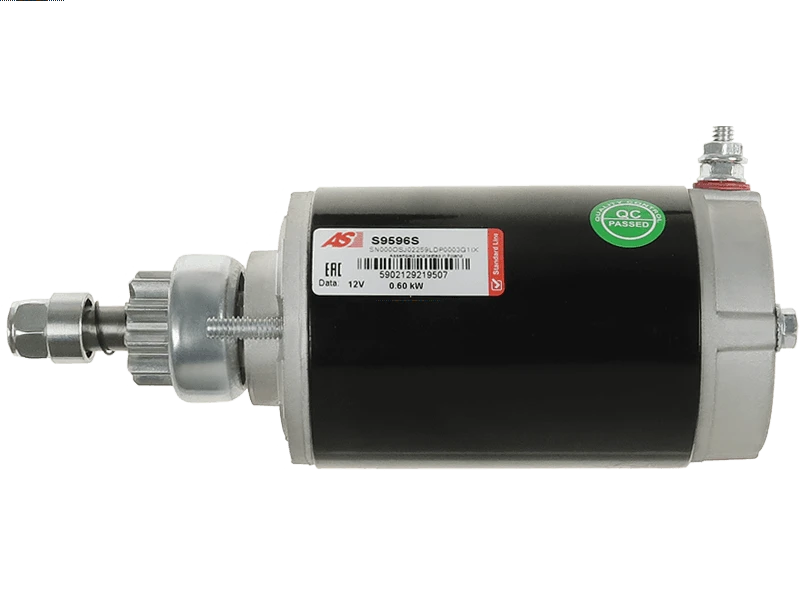

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 208.96 including GST
NZ$ 181.70 excluding GST
or four payments of $52.24
with
Learn More
each
S9596S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.60 kW |
| Length (L.1) | 215 mm |
| No./Mount holes | 0 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 44 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOBCAT | 440 | [KT17QS] | 01.1983-12.1985 |
| CUB CADET | 1415 | [14H.P.] | 01.1988-12.1989 |
| CUB CADET | 1420 | [14H.P.] | 01.1988-12.1991 |
| CUB CADET | 1430 | [14H.P.] | 01.1992-12.1993 |
| CUB CADET | 1535 | [15H.P.] | 01.1990-12.1991 |
| CUB CADET | 1541 | [15H.P.] | 01.1990-12.1991 |
| CUB CADET | 1615 | [16H.P.] | 01.1987-12.1987 |
| CUB CADET | 1620 | [16H.P.] | 01.1987-12.1987 |
| CUB CADET | 1710 | [17H.P.] | 01.1985-12.1985 |
| CUB CADET | 1711 | [17H.P.] | 01.1985-12.1985 |
| CUB CADET | 1712 | [17H.P.] | 01.1985-12.1985 |
| CUB CADET | 1715 | [17H.P.] | 01.1988-12.1989 |
| CUB CADET | 1720 | [17H.P.] | 01.1988-12.1991 |
| CUB CADET | 1730 | [17H.P.] | 01.1992-12.1993 |
| CUB CADET | 1806 | [18H.P.] | 01.1987-12.1989 |
| CUB CADET | 1810 | [18H.P.] | 01.1986-12.1989 |
| CUB CADET | 1811 | [18H.P.] | 01.1986-12.1989 |
| CUB CADET | 1812 | [18H.P.] | 01.1986-12.1989 |
| CUB CADET | 1860 | [18H.P.] | 01.1990-12.1991 |
| CUB CADET | 1861 | [18H.P.] | 01.1992-12.1992 |
| CUB CADET | 1862 | [18H.P.] | 01.1990-12.1992 |
| CUB CADET | 1872 | [18H.P.] | 01.1987-12.1989 |
| CUB CADET | 1882 | [18H.P.] | 01.1990-12.1991 |
| CUB CADET | 682 | [17H.P.] | 01.1980-12.1984 |
| CUB CADET | 782 | [17H.P.] | 01.1980-12.1984 |
| CUB CADET | 784 | [17H.P.] | 01.1982-12.1984 |
| KOHLER | KT-17 | [KT-17] | |
| KOHLER | KT-19 | [KT-19] | |
| KOHLER | M-18 | [M-18] | |
| KOHLER | MV-16S | [MV-16S] | |
| KOHLER | MV-17 | [MV-17] | |
| KOHLER | MV-18 | [MV-18] | |
| TORO | HMR-1600 | [(16H.P.)] | 01.1989-12.1989 |
| TORO | HMR-1600 | [16H.P.] | 01.1989-12.1989 |
| TORO | Proline 117 | [MV16S56511] | 01.1990-12.1993 |
| TORO | Proline 180 | [MV16S] | 01.1993-12.2003 |
| TORO | Proline 190 | [MV18S58543] | 01.1991-12.1991 |
Reference Information
| 104259 | FARCOM |
| 10440338 | ALANKO |
| 106-020 | PIC |
| 110949 | CARGO |
| 1770540 | UNITED TECHNOLOGIES |
| 177054030SM | UNITED TECHNOLOGIES |
| 1770540MO30SM | UNITED TECHNOLOGIES |
| 1819040 | UNITED TECHNOLOGIES |
| 1819040M030SM | UNITED TECHNOLOGIES |
| 1819040MO30SM | UNITED TECHNOLOGIES |
| 20603101 | DIXIE |
| 2-2083-UT | WAI / TRANSPO |
| 3117864 | HENKEL PARTS |
| 400.090.090.200 | PSH |
| 4509812 | KOHLER |
| 5209803 | KOHLER |
| 5209809 | KOHLER |
| 5209812 | KOHLER |
| 5213140 | UNITED TECHNOLOGIES |
| 5213140M030SM | UNITED TECHNOLOGIES |
| 5213140MO30SM | UNITED TECHNOLOGIES |
| 5666220MO30SM | UNITED TECHNOLOGIES |
| 5666240M030SM | UNITED TECHNOLOGIES |
| 5666240MO30SM | UNITED TECHNOLOGIES |
| 5757 | LESTER |
| 5757N | WAI / TRANSPO |
| 60862 | KUHNER |
| 71-09-5757 | WILSON |
| 91-09-1022 | WILSON |
| F032110949 | CARGO |
| MS670 | PRESTOLITE |
| S132.883 | PSH |
| SAB0041 | ARROWHEAD |
| SM17705 | UNITED TECHNOLOGIES |
| SM18190 | UNITED TECHNOLOGIES |
| SM56662 | MITSUBA |
| STR1070 | UNIPOINT |
| STR88206 | WOODAUTO |
| STR9713 | ELECTROLOG |
| UD13685S | AS-PL |
| US862 | HC PARTS |
| WOOSTR88206 | WOODAUTO |
