Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
UNITED TECHNOLOGIES
Price:
NZ$ 205.13 including GST
NZ$ 178.37 excluding GST
or four payments of $51.28
with
Learn More
each
S9567S
1

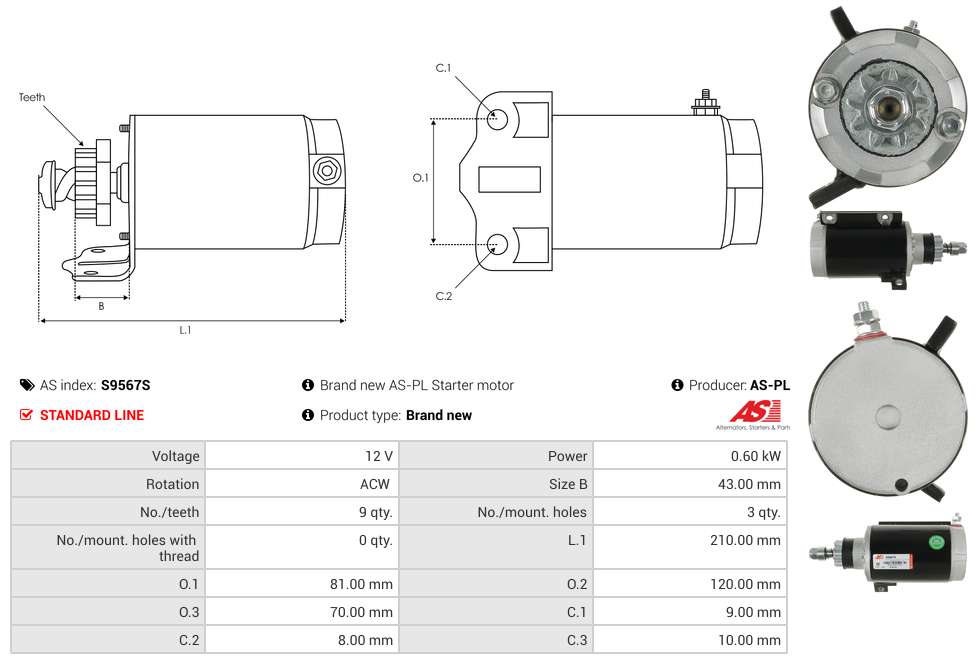

Specifications
| Kilowatt | 0.60 kW |
| Length (L.1) | 210 mm |
| Mount Hole Center - Center (O.1) | 81 mm |
| Mount Hole Center - Center (O.2) | 120 mm |
| Mount Hole Center - Center (O.3) | 70 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 8 mm |
| Mount Hole Diameter (C.3) | 10 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 43 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | UNITED TECHNOLOGIES |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| EVINRUDE | E40E | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E40EL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E40TE | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E40TEL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E40TL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E40TTL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| EVINRUDE | E48ESL | [44.9ci-48H.P.] | 01.1987-12.1996 |
| EVINRUDE | E50BE | [44.9ci-50H.P.] | 01.1989-12.1994 |
| EVINRUDE | E50BEL | [44.9ci-50H.P.] | 01.1989-12.1995 |
| EVINRUDE | E50TEL | [44.9ci-50H.P.] | 01.1989-12.1997 |
| EVINRUDE | E50TL | [44.9ci-50H.P.] | 01.1989-12.1997 |
| JOHNSON | 40E | [44.9ci-40H.P.] | 01.1989-12.1995 |
| JOHNSON | 40EL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| JOHNSON | 40PL | [44.9ci-40H.P.] | 01.1999-12.2005 |
| JOHNSON | 40R | [44.9ci-40H.P.] | 01.1989-12.2001 |
| JOHNSON | 40TE | [44.9ci-40H.P.] | 01.1989-12.1998 |
| JOHNSON | 40TEL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| JOHNSON | 40TL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| JOHNSON | 40TPL | [44.9ci-40H.P.] | 01.1999-12.2001 |
| JOHNSON | 40TTL | [44.9ci-40H.P.] | 01.1989-12.1998 |
| JOHNSON | 48ESL | [44.9ci-48H.P.] | 01.1987-12.1996 |
| JOHNSON | 50EL | [44.9ci-50H.P.] | 01.1999-12.2001 |
| JOHNSON | 50ESL | [44.9ci-50H.P.] | 01.1997-12.1998 |
| JOHNSON | 50J Jet | [44.9ci-35H.P.] | 01.1991-12.1997 |
| JOHNSON | 50PL | [44.9ci-50H.P.] | 01.1999-12.2005 |
| JOHNSON | 50TEL | [44.9ci-50H.P.] | 01.1989-12.1995 |
| JOHNSON | 50TLE | [44.9ci-50H.P.] | 01.1989-12.1998 |
| JOHNSON | 50TSL | [44.9ci-50H.P.] | 01.1997-12.1998 |
Reference Information
| 0586279DS200 | BOMBARDIER |
| 10011121AV | ITAB AUTOMOTIVE |
| 104252 | FARCOM |
| 10439030 | ALANKO |
| 110647 | CARGO |
| 112155 | CARGO |
| 20412121BN | REAL |
| 2-2160 | WAI / TRANSPO |
| 3117809 | HENKEL PARTS |
| 400.039.093.200 | PSH |
| 5059240 | UNITED TECHNOLOGIES |
| 5059240MO30SM | UNITED TECHNOLOGIES |
| 5704640M030SM | UNITED TECHNOLOGIES |
| 5704640MO30SM | UNITED TECHNOLOGIES |
| 5713 | LESTER |
| 5713N | WAI / TRANSPO |
| 583482 | OMC |
| 584980 | OMC |
| 586284 | OMC |
| 6011121.0 | SANDO |
| 60876 | KUHNER |
| 71-09-5713 | WILSON |
| 91-09-1042 | WILSON |
| CST11121AS | CASCO |
| F032110647 | CARGO |
| F032112155 | CARGO |
| MAV131210A | SIOM |
| MS689 | PRESTOLITE |
| S132.540 | PSH |
| SAB0078 | ARROWHEAD |
| SM57046 | UNITED TECHNOLOGIES |
| ST-5713 | RCP |
| STR1067 | WOODAUTO |
| STR88209 | WOODAUTO |
| STZ1751 | KRAUF |
| UD102443S | AS-PL |
| UD102446S | AS-PL |
| UD13690S | AS-PL |
| US876 | HC PARTS |
| WOOSTR88209 | WOODAUTO |
Video/Publications
