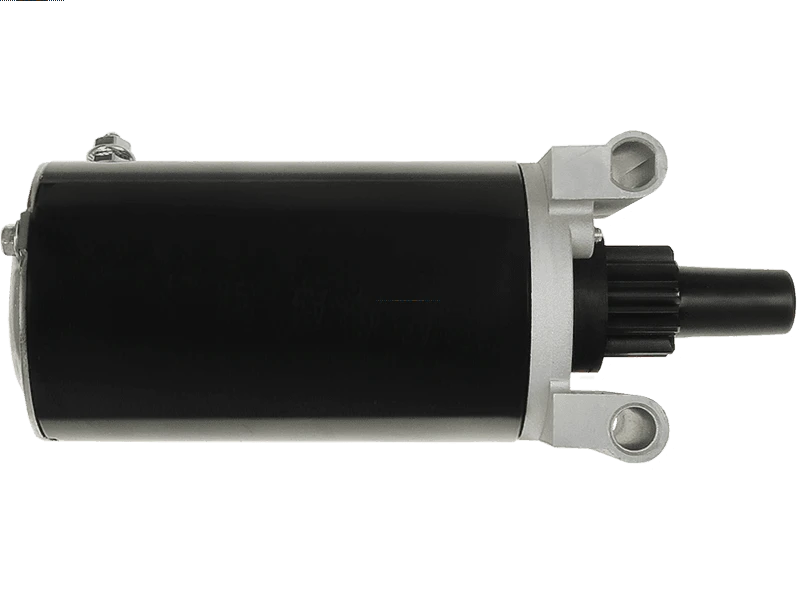

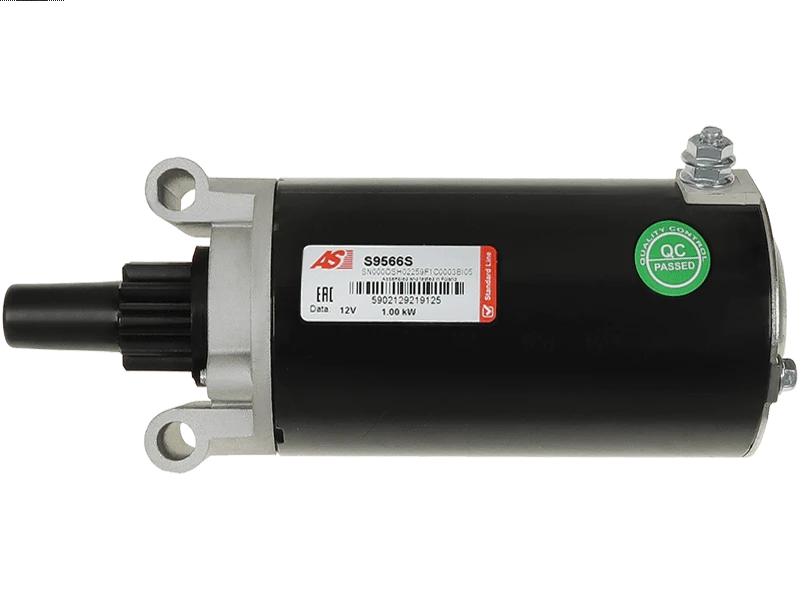

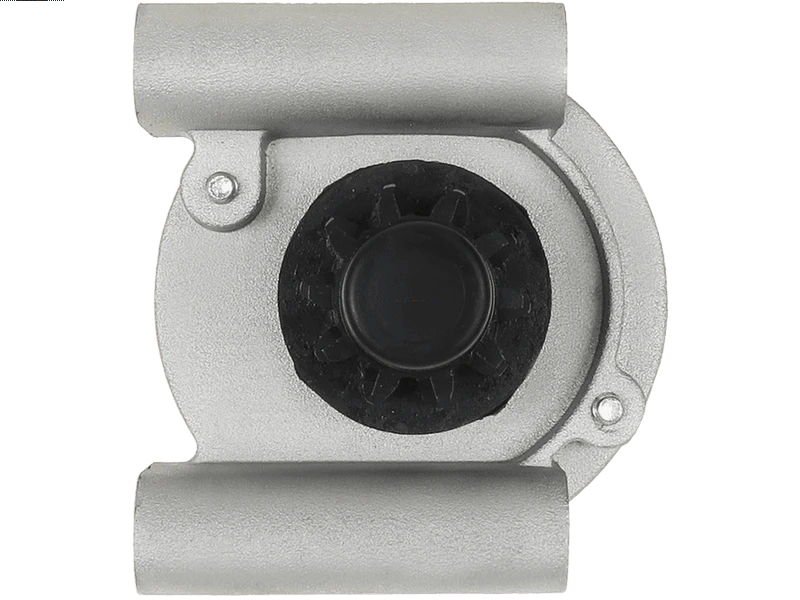

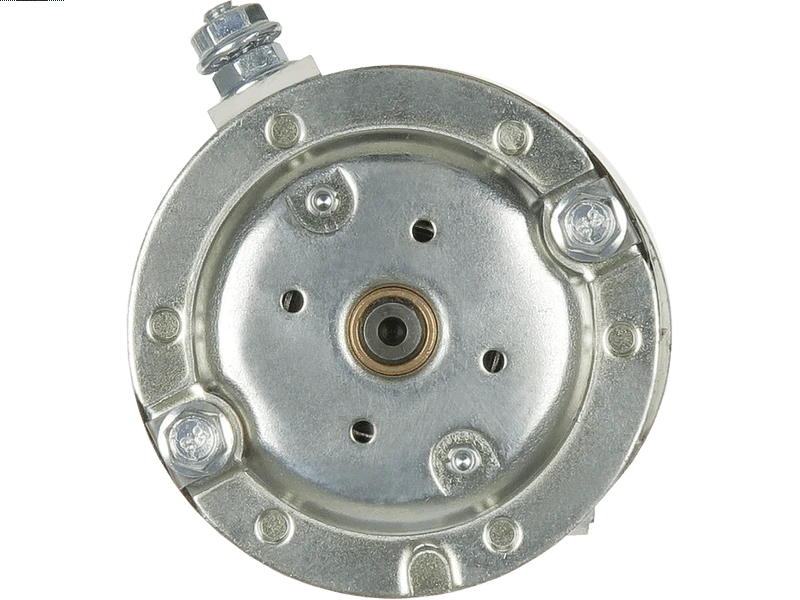

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 195.47 including GST
NZ$ 169.97 excluding GST
or four payments of $48.87
with
Learn More
each
S9566S
2
Specifications
| Kilowatt | 1 kW |
| Length (L.1) | 215 mm |
| Mount Hole Center - Center (O.1) | 67 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 9, 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 32 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUB CADET | i1046 | [(20H.P.)] | 01.2006-12.2015 |
| CUB CADET | i1050 | [(25H.P.)] | 01.2006-12.2015 |
| CUB CADET | LT1045LE | [(20H.P.)] | 01.2005-12.2006 |
| CUB CADET | LT1046 | [(23H.P.)] | 01.2005-12.2006 |
| CUB CADET | LTX1050 | [SV725] | |
| CUB CADET | SLT1550 | [(25H.P.)] | 01.2005-12.2006 |
| CUB CADET | SLT1554 | [(27H.P.)] | 01.2005-12.2006 |
| KUBOTA | Z121SKH | [21H.P.] | |
| KUBOTA | Z125SKH | [25H.P.] | |
| KUBOTA | ZG123S | [23H.P.] | 01.2012-12.2015 |
| KUBOTA | ZG127S | [27H.P.] | 01.2012-12.2015 |
| NEW HOLLAND | G4030 | [SV720(23H.P.)] | 01.2007-12.2015 |
| NEW HOLLAND | G4035 | [SV730(25H.P.)] | 01.2004-12.2014 |
| NEW HOLLAND | G4050 | [SV830(25H.P.)] | 01.2008-12.2015 |
| TORO | G4030 | [(23H.P.)] | 01.2007-12.2008 |
| TORO | G4035 | [(25H.P.)] | 01.2009-12.2009 |
| TORO | G4050 | [(25H.P.)] | 01.2008-12.2008 |
| TORO | GT2100 | [(23H.P.)] | 01.2006-12.2008 |
| TORO | GT2200 | [(25H.P.)] | 01.2006-12.2008 |
| TORO | GT2300 | [(26H.P.)] | 01.2006-12.2006 |
| TORO | LX425 | [(20H.P.)SV720] | 01.2007-12.2007 |
| TORO | LX468 | [(22H.P.)] | 01.2008-12.2009 |
| TORO | LX500 | [(22H.P.)] | 01.2006-12.2006 |
| TORO | SL500 Super Lawn Tractor | [(23H.P.)] | 01.2007-12.2007 |
| TORO | TimeCutter Z4202 Riding Mower | [(20H.P.)] | 01.2008-12.2009 |
| TORO | TimeCutter Z5020 Riding Mower | [(23H.P.)] | 01.2007-12.2009 |
| TORO | TimeCutter Z5060 Riding Mower | [(25H.P.)] | 01.2008-12.2009 |
| TORO | Titan Z4800 | [(23H.P.)] | 01.2008-12.2009 |
| TORO | Titan Z5200 | [(25H.P.)] | 01.2007-12.2009 |
Reference Information
| 10438967 | ALANKO |
| 106-10143 | ROBERT'S |
| 114075 | CARGO |
| 254974 | KUHNER |
| 3209801 | KOHLER |
| 32-098-01S | KOHLER |
| 3209803 | KOHLER |
| 3209803S | KOHLER |
| 3209804 | KOHLER |
| 3209804S | KOHLER |
| 4733040M030SM | UNITED TECHNOLOGIES |
| 5801 | LESTER |
| 5801N | WAI / TRANSPO |
| 5801N-10 | WAI / TRANSPO |
| 590.922.102.200 | PSH |
| 71-09-5801 | WILSON |
| F032114075 | CARGO |
| K0H3209801S | NEW HOLLAND |
| RAS41069 | DELCO |
| S134.326 | PSH |
| SAB0157 | ARROWHEAD |
| STR7633 | ELECTROLOG |
| STR88257 | WOODAUTO |
| STZ4075 | KRAUF |
| TT16904 | TESLA |
| UD13683S | AS-PL |
| WOOSTR88257 | WOODAUTO |
