Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 361.54 including GST
NZ$ 314.38 excluding GST
or four payments of $90.39
with
Learn More
each
S6522S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
438000-2410Associated Numbers
ARROWHEAD 410-52632 DELCO  SR183688 DENSO  438000-2410 GENERAL MOTORS  12658432 12663052 LESTER  10700 GM 255341 Elstock 328095152 DRI 4380002410 Denso 830941152 PSH LRS04178 Lucas S42004017 Herth Buss

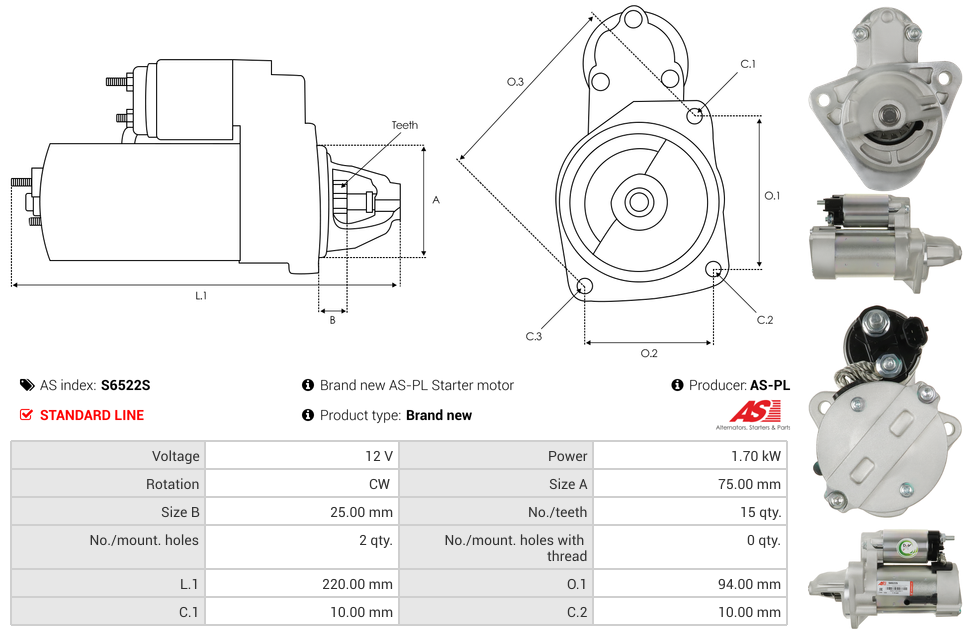

Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 220 mm |
| Mount Hole Center - Center (O.1) | 94 mm |
| Mount Hole Diameter (C.1) | 10 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 15 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Insignia 2.0 4x4 Country Tourer | [B20NFT] | 06.2017- |
| OPEL | Insignia 2.0 4x4 Country Tourer | [D20NFT] | 06.2017- |
| OPEL | Insignia 2.0 4x4 Grand Sport | [B20NFT] | 03.2017- |
| OPEL | Insignia 2.0 4x4 Grand Sport | [D20NFT] | 03.2017- |
| OPEL | Insignia 2.0 4x4 Sports Tourer | [B20NFT] | 03.2017- |
| OPEL | Insignia 2.0 4x4 Sports Tourer | [D20NFT] | 03.2017- |
Reference Information
| 10040586AV | ITAB AUTOMOTIVE |
| 10040586OV | ITAB AUTOMOTIVE |
| 10700 | LESTER |
| 10700N | WAI / TRANSPO |
| 11090460 | EUROTEC |
| 12642699 | OPEL |
| 12663052 | OPEL |
| 19259N | WAI / TRANSPO |
| 20432685BN | REAL |
| 20432685OE | REAL |
| 25-5341 | ELSTOCK |
| 256105D | KUHNER |
| 260540-0130 | DENSO |
| 3126376 | HENKEL PARTS |
| 328095152 | DRI |
| 438000-1620 | DENSO |
| 438000-2410 | DENSO |
| 6040586.0 | SANDO |
| 6040586.1 | SANDO |
| 830.941.152.050 | PSH |
| 830.941.152.261 | PSH |
| 88215199 | POWERMAX |
| 91-29-5879 | WILSON |
| 95525318 | OPEL |
| 9855 | CEVAM |
| CST40586AS | CASCO |
| CST40586GS | CASCO |
| DSN1494 | DENSO |
| LRS04178 | LUCAS |
| LRS4178 | LUCAS |
| MAV425860 | SIOM |
| S1198D | PRESTOLITE |
| S135.876 | PSH |
| S150.941 | PSH |
| ST02797 | TMI |
| STN9410 | KRAUF |
| UD104472S | AS-PL |
| UD17185S | AS-PL |
| WG2339288 | WILMINK GROUP |
Video/Publications
