Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 464.13 including GST
NZ$ 403.59 excluding GST
or four payments of $116.03
with
Learn More
each
S3156S
1
Information

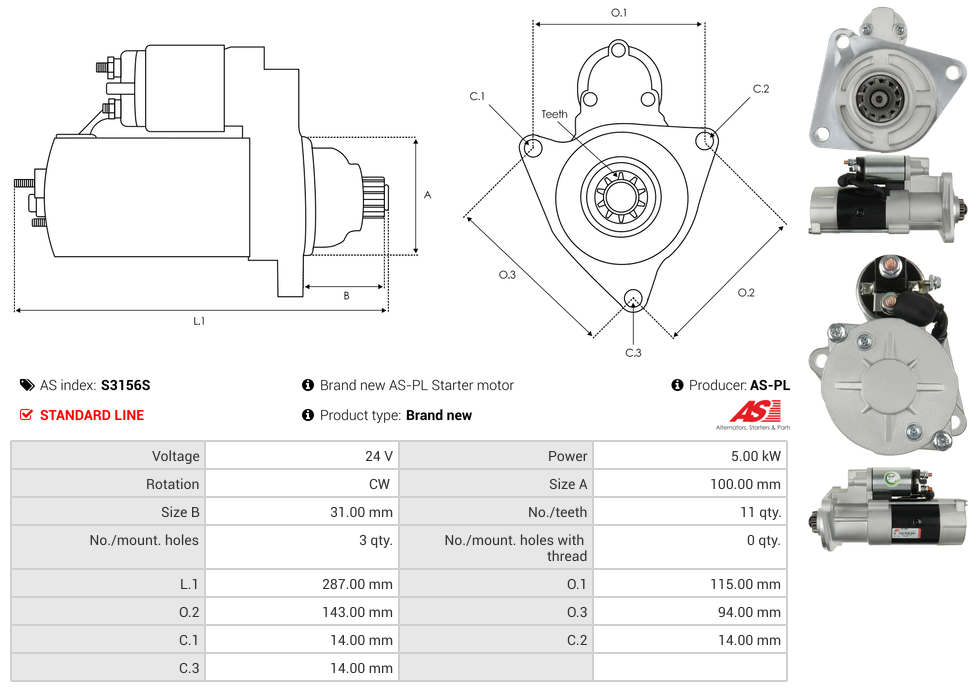

36100-45C00Specifications
| Kilowatt | 5 kW |
| Length (L.1) | 287 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Center - Center (O.2) | 143 mm |
| Mount Hole Center - Center (O.3) | 94 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| Mount Hole Diameter (C.3) | 14 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 31 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 100 mm |
| Unit Type | VALEO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | 35D-7E | ||
| HYUNDAI | 35D-9S | ||
| HYUNDAI | 40D-7E | ||
| HYUNDAI | 40D-9S | ||
| HYUNDAI | 45D-7E | ||
| HYUNDAI | 45D-9S | ||
| HYUNDAI | 50D-7AE | ||
| HYUNDAI | 50D-7E | ||
| HYUNDAI | 50D-9SA | ||
| HYUNDAI | 50DF-7 | ||
| HYUNDAI | 550D-7E | ||
| HYUNDAI | 60D-7E | ||
| HYUNDAI | 60DF-7 | ||
| HYUNDAI | 70D-7E | ||
| HYUNDAI | 70DF-7 | ||
| HYUNDAI | 80D-7E |
Reference Information
| 10438361 | ALANKO |
| 1198169 | VALEO |
| 130-30147 | ROBERT'S |
| 130-30147NOE | ROBERT'S |
| 151.528.113.000 | PSH |
| 151.528.113.360 | PSH |
| 198169 | MANDO |
| 20493806OE | REAL |
| 256327V | KUHNER |
| 3610045C00 | HYUNDAI / KIA |
| 6032608.1 | SANDO |
| 608305 | VALEO |
| 88215079 | POWERMAX |
| A433767 | DOOSAN |
| CST32608GS | CASCO |
| DRS1264 | DELCO |
| S0001198169 | VALEO |
| S000V198169 | MANDO |
| S143.838 | PSH |
| S150.581 | PSH |
| SMA608 | AUTOTEAM |
| STA1534 | KRAUF |
| STR00161 | ELECTROLOG |
| UD102335S | AS-PL |
| VAL1198169 | WOODAUTO |
Video/Publications
