Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 338.71 including GST
NZ$ 294.53 excluding GST
or four payments of $84.68
with
Learn More
UOM:
each
Product Code:
S2122S
2

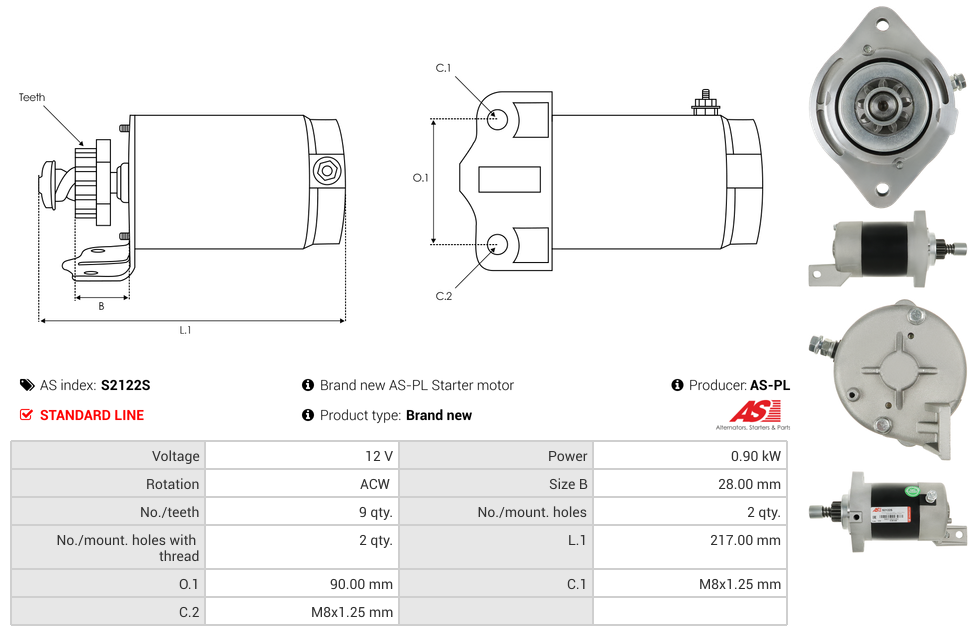

Specifications
| Kilowatt | 0.90 kW |
| Length (L.1) | 217 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | Engine | [73CI-1197cc-75H.P.] | 01.1988-12.1998 |
| SUZUKI | Engine | [73CI-1197cc-85H.P.] | 01.1988-12.2000 |
| SUZUKI | Engine | [DT75185] |
Reference Information
| 10020285AV | ITAB AUTOMOTIVE |
| 10439157 | ALANKO |
| 10439334 | ALANKO |
| 180.012.093.270 | PSH |
| 18316 | LESTER |
| 18316N | WAI / TRANSPO |
| 18316N-OE | WAI / TRANSPO |
| 20445582BN | REAL |
| 2-2312-HI | WAI / TRANSPO |
| 240-10106 | DIXIE |
| 256725 | KUHNER |
| 31100-95310 | SUZUKI |
| 31100-95312 | SUZUKI |
| 31100-95313 | SUZUKI |
| 31100-95600 | SUZUKI |
| 31100-95601 | SUZUKI |
| 3113496 | HENKEL PARTS |
| 6020285.0 | SANDO |
| 91-25-1165 | WILSON |
| CST20285AS | CASCO |
| PRSJ021 | 3EFFE |
| RS41152 | DELCO |
| S114-555 | HITACHI |
| SHI0089 | ARROWHEAD |
| SHI285A | AUTOTEAM |
| STRJ021 | 3EFFE |
| UD19214S | AS-PL |
