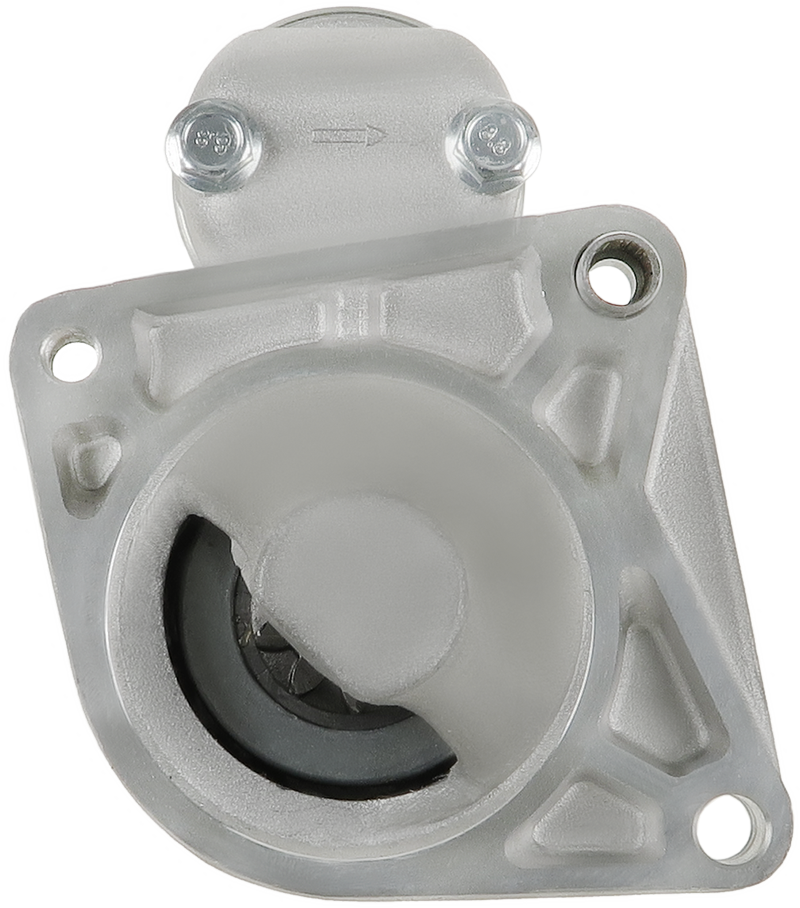

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 231.56 including GST
NZ$ 201.36 excluding GST
or four payments of $57.89
with
Learn More
UOM:
each
Product Code:
S2119S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
S114-20Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 194 mm |
| Mount Hole Center - Center (O.1) | 73 mm |
| Mount Hole Center - Center (O.2) | 75 mm |
| Mount Hole Center - Center (O.3) | 108 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| Mount Hole Diameter (C.3) | 9 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 11 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 64 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | Mito 1.4 | [199A6.000] | 09.2008-08.2013 |
| ALFA ROMEO | Mito 1.4 Tjet | [198A1.000] | 09.2008-06.2011 |
| FIAT | 500 1.2 | [169A4.000] | 07.2007- |
| FIAT | 500 C 1.4 | [169A3.000] | 09.2009- |
| FIAT | Albea 1.4 | [178F3.011] | 01.2007-12.2009 |
| FIAT | Albea 1.4 | [350A1.000] | 01.2007-12.2009 |
| FIAT | Bravo 1.4 LPG | [192B2.000] | 12.2008-12.2014 |
| FIAT | Doblo 1.4 | [843A1.000] | 02.2010- |
| FIAT | Doblo 1.4 | [843A1.000] | 04.2010- |
| FIAT | Doblo Cargo 1.4 | [843A1.000] | 02.2010- |
| FIAT | Grande Punto 1.4 LPG | [350A1.000] | 12.2008- |
| FIAT | Idea 1.4 16V | [843A1.000] | 01.2004- |
| FIAT | Idea 1.4 LPG | [350A1.000] | 03.2009- |
| FIAT | Linea 1.4 T-Jet | [198A4.000] | 05.2007- |
| FIAT | Panda 1.2 LPG | [169A4.000] | 06.2012- |
| FIAT | Panda 1.4 | [169A3.000] | 10.2006- |
| FIAT | Punto EVO 1.2 | [199A4.000] | 10.2009-02.2012 |
| FIAT | Punto EVO 1.2 | [350A1.000] | 10.2009-02.2012 |
| FIAT | Punto EVO 1.4 Natural Power | [350A1.000] | 10.2009-02.2012 |
| FIAT | Stilo 1.4 16V | [843A1.000] | 01.2004-08.2008 |
| FORD | Ka 1.2 | [169A4000] | 10.2008-05.2016 |
| FORD | Ka 1.2 | [FP4] | 10.2008-05.2016 |
| LANCIA | Delta 1.4 | [198A1.000] | 09.2008-08.2014 |
| LANCIA | Delta 1.4 | [198A4.000] | 09.2008-08.2014 |
| LANCIA | Delta 1.8 | [939B1.000] | 01.2009-08.2014 |
| LANCIA | Musa 1.4 | [843A1.000] | 10.2004-09.2012 |
| LANCIA | Ypsilon 1.2 | [188A4.000] | 10.2003-12.2011 |
| LANCIA | Ypsilon 1.2 | [188A5.000] | 10.2003-12.2011 |
| LANCIA | Ypsilon 1.4 16V | [843A1.000] | 10.2003-12.2011 |
Reference Information
| 063280061010 | MAGNETI MARELLI |
| 063721379010 | MAGNETI MARELLI |
| MQS1379 | MAGNETI MARELLI |
| S114-20 | HITACHI |
| UD101990S | AS-PL |
