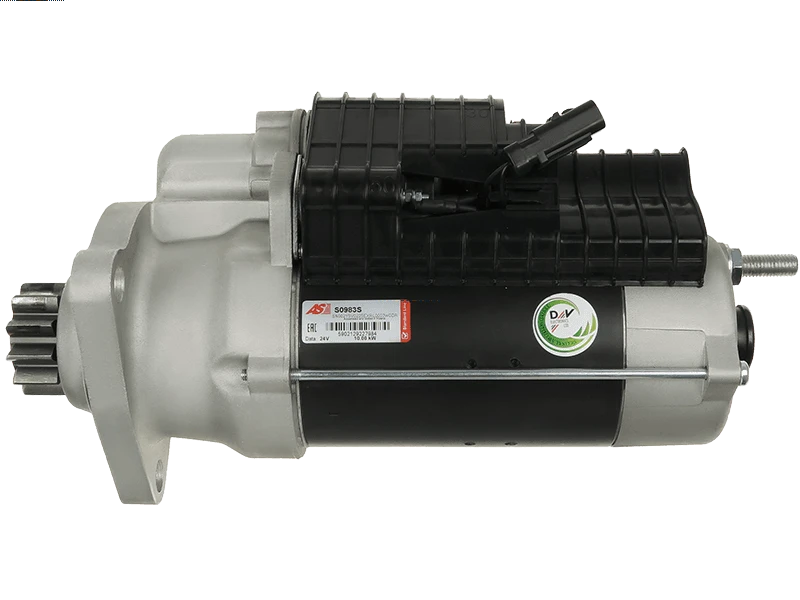

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 1,965.57 including GST
NZ$ 1,709.19 excluding GST
or four payments of $491.39
with
Learn More
each
S0983S
No stock in NZ currently
No stock in NZ currently
Information
0001350012Specifications
| Kilowatt | 10 kW |
| Length (L.1) | 400 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 17 mm |
| Mount Hole Diameter (C.2) | 17 mm |
| Mount Hole Diameter (C.3) | 17 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 49 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 140 | ||
| CATERPILLAR | 140-AWD | ||
| CATERPILLAR | 140GC | ||
| CATERPILLAR | 140GC-AWD | ||
| CATERPILLAR | 14M3 | ||
| CATERPILLAR | 16M3 | ||
| CATERPILLAR | 18M3 | ||
| CATERPILLAR | 336 | ||
| CATERPILLAR | 631K | ||
| CATERPILLAR | 631K-OEM | ||
| CATERPILLAR | 637K | ||
| CATERPILLAR | 824K | ||
| CATERPILLAR | 825K | ||
| CATERPILLAR | 826K | ||
| CATERPILLAR | Engine 12.5 | [C13] | |
| CATERPILLAR | Engine 15.2 | [C15] | |
| CATERPILLAR | Engine 18.1 | [C18] | 07.2008- |
| CATERPILLAR | Engine 7.0 | [C7.1] | |
| CATERPILLAR | Engine 9.3 | [C9.3B] | |
| CATERPILLAR | PM820 | ||
| CATERPILLAR | PM822 | ||
| CATERPILLAR | R1700K | ||
| CATERPILLAR | R2900 | ||
| CATERPILLAR | R2900G |
Reference Information
| 0001350012 | BOSCH |
| 0001350013 | BOSCH |
| 109460 | FARCOM |
| 120-35006 | ROBERT'S |
| 256343B | KUHNER |
| 436-9106 | CATERPILLAR |
| 436-9406 | CATERPILLAR |
| 641.562.113.010 | PSH |
| BOS0001350013 | WOODAUTO |
| S150.949 | PSH |
| STB2977 | KRAUF |
| UD30199S | AS-PL |
Video/Publications
