Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 1,398.01 including GST
NZ$ 1,215.66 excluding GST
or four payments of $349.50
with
Learn More
each
S0982S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

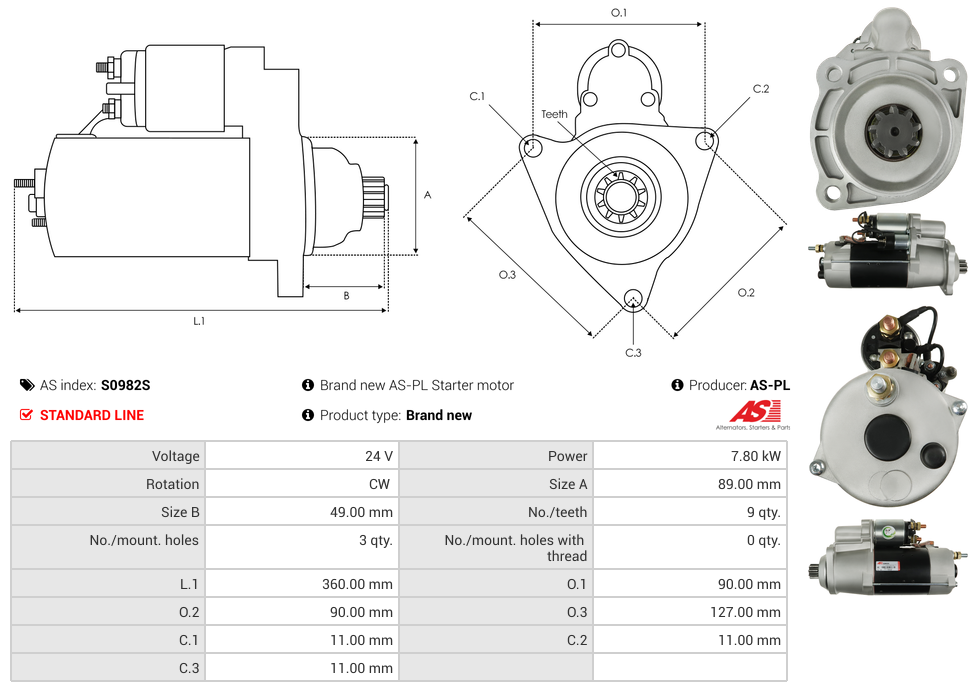

0001330048Specifications
| Kilowatt | 7.80 kW |
| Length (L.1) | 360 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 49 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | G700B | ||
| VOLVO | L110E | ||
| VOLVO | L120E | ||
| VOLVO | L60E | ||
| VOLVO | L70E | ||
| VOLVO | L90E |
Reference Information
| 0001330047 | BOSCH |
| 0001330048 | BOSCH |
| 01181681 | KHD |
| 15424353 | VOLVO |
| 20459062 | VOLVO |
| 260-33210 | DIXIE |
| 31001 | LESTER |
| 811.538.093.010 | PSH |
| 9020459062 | VOLVO |
| BOS0001330048 | WOODAUTO |
| S143.751 | PSH |
| UD90709S | AS-PL |
